Descriere

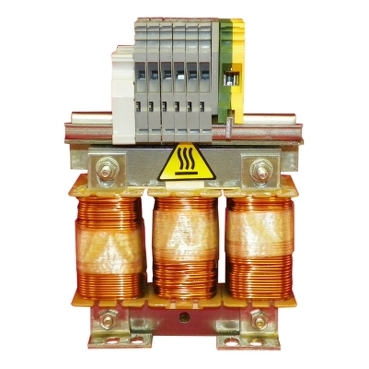

Bobina De Linie, 10 Mh, 4 A, 3 Faze, 45 W, pentru Variator de viteza
Documente
Specificatii
Electrical | |
Max. rated current (Ith) at rated voltage DC | - |
Rated current AC | 4 A |
Max. rated operation voltage Ue | 690 V |
Relative short circuit voltage | - |
Model/type | |
Number of poles, primary side | 3 |
Other | |
Rated clock frequency | - |
Rated operating frequency | 50 Hz |
Resonance frequency | - |
Rated inductance | 10 mH |
Application | |
Suitable as output reactance coil | Yes |
Suitable as commutation reactance coil | No |
Suitable as net reactance coil | Yes |
Suitable as interference suppression reactance coil | No |
Suitable as ripple filter choke | No |
Protection | |
Degree of protection (IP) | IP00 |
Degree of protection (NEMA) | - |
Package 1 | |
volume | 6300 cm3 |
weight | 1,527 kg |
length | 21 cm |
width | 20 cm |
qmax | 1 |
qmin | 1 |
um | C62 |
gtin | 3389118066014 |
Package 2 | |
volume | 360000 cm3 |
weight | 47 kg |
length | 80 cm |
width | 60 cm |
qmax | 24 |
qmin | 24 |
um | CT |
gtin | 73389118066013 |
