Descriere

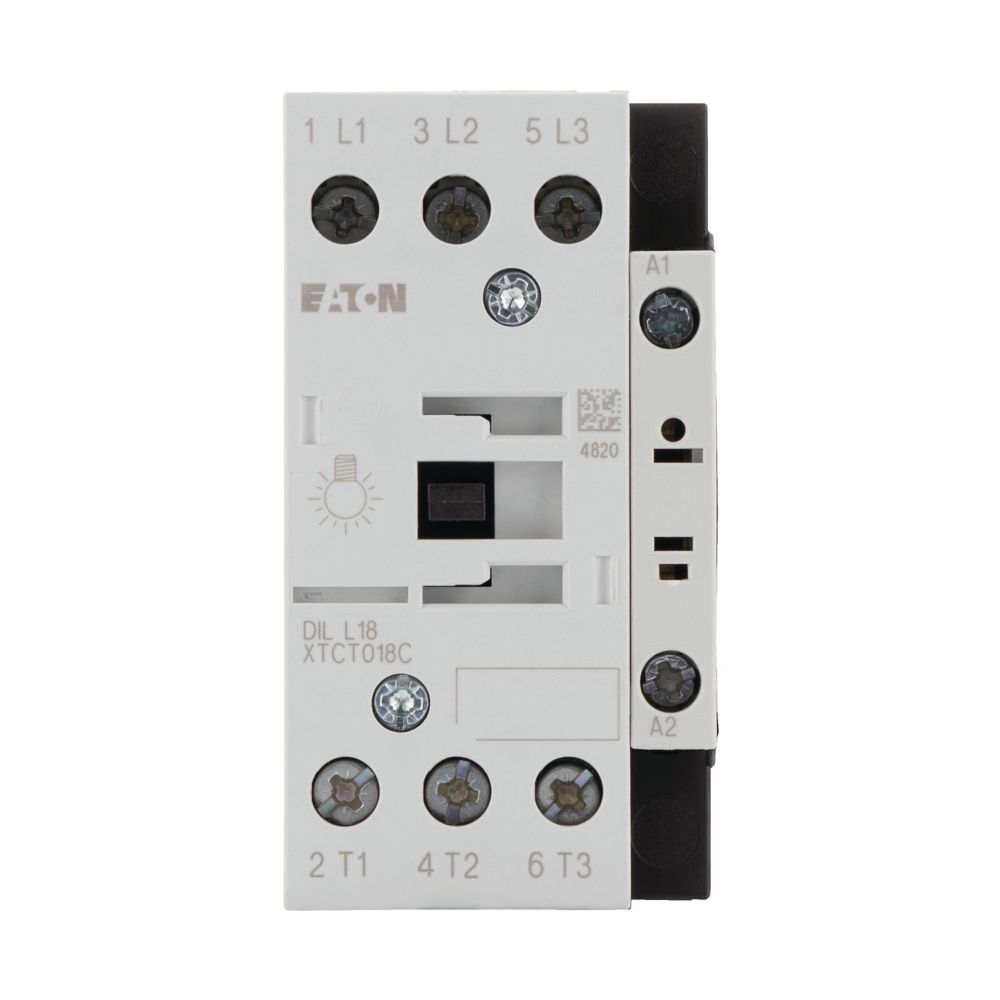

Lamp load contactors, Application: Contactors for lighting systems, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, Rated operational current 380 V 400 V: Ie = 21 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie = 40 A, Actuating voltage: 24 V 50 Hz, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP00
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 |
| Rated control supply voltage AC 60 Hz | 0 |
| Rated control supply voltage DC | 0 |
| Voltage type for actuating | AC |
| Operating voltage AC 50 Hz | 230 |
| Operating voltage AC 60 Hz | 230 |
| Rated operation current Ie at AC-1, 400 V | 18 |
| Rated operation current Ie at AC-3, 400 V | 0 |
| Rated operation power at AC-3, 400 V | 0 |
| Rated operation current Ie at AC-4, 400 V | 0 |
| Rated operation power at AC-4, 400 V | 0 |
| Rated operation power NEMA | 0 |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 45 |
| Height | 85 |
| Depth | 97 |
