Descriere

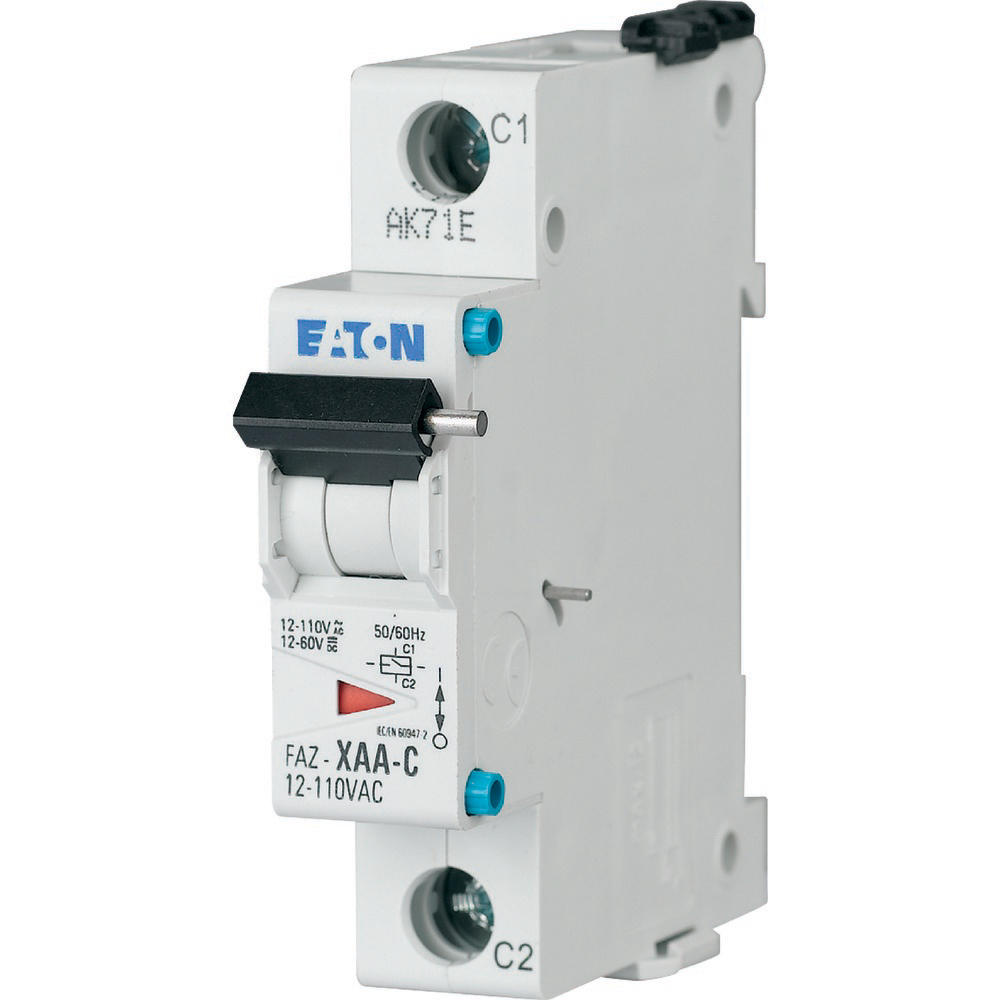

Shunt release, for MCB up to 63A, voltage range 12-110V AC, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1–2.5 mm² solid and flexible
Specificatii
| Other | |
| Device fitting | Miniature circuit breaker (MCB) |
| Model/type | |
| Function | Shunt release (for power circuit breaker) |
| Number of fault-signal switches | 0 |
| With auto test for earth leakage function | No |
| Measurements | |
| Width in number of modular spacings | 1 |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 0 |
| Electrical | |
| Rated switch current | 0 |
| Rated voltage | 110 |
| Voltage type | AC |
| Suitable for max. number of poles main contact unit (total) | 1 |
| Suitable for max. current main contact unit | 0 |
| Package 1 | |
| volume | 0,000239 |
| weight | 0,165 |
| length | 0,086 |
| width | 0,037 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082785185 |
| Package 2 | |
| volume | 0,015939 |
| weight | 6,229 |
| length | 0,385 |
| width | 0,18 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 9007912423034 |
| Dimensions of product | |
| Volume | 0,00010691 |
| Weight | 0,087 |
| Length | 0,08 |
| Width | 0,0177 |
| Depth | 0,0755 |
