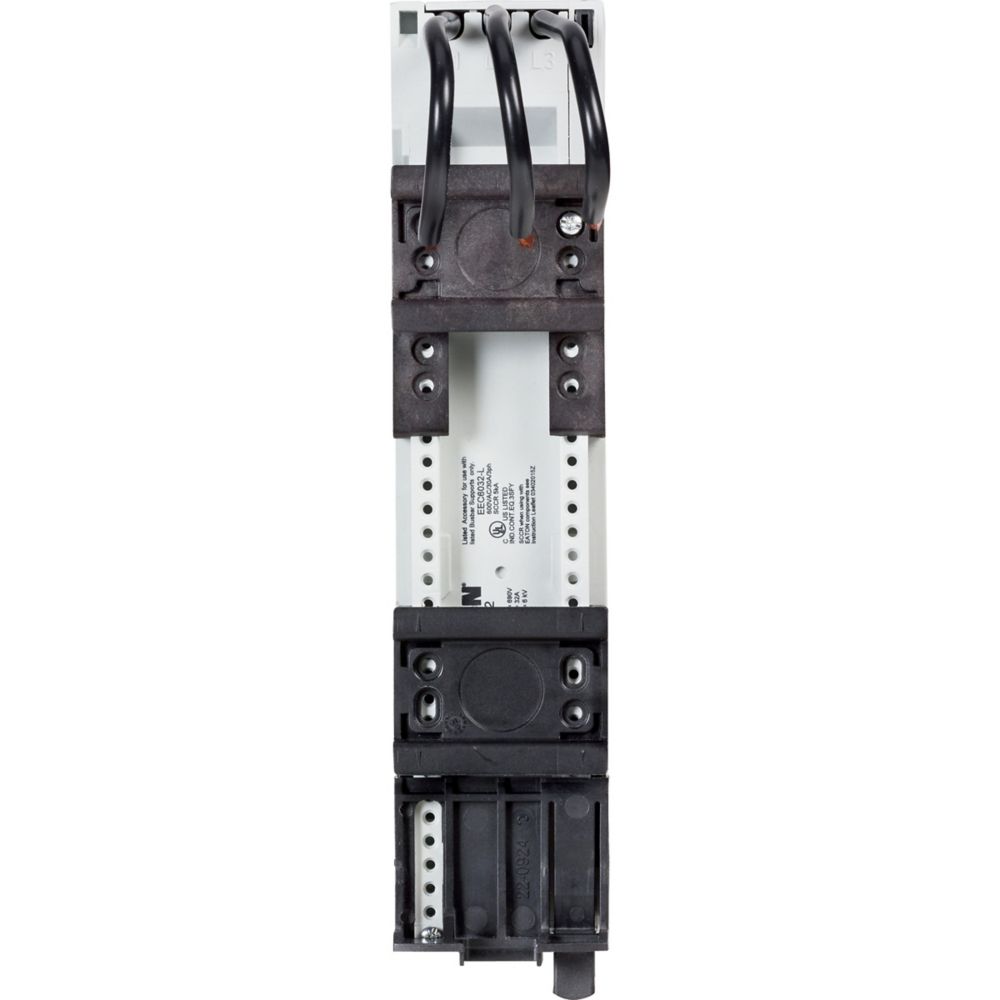

45mm busbar adapter for 60mm busbar system, two mounting rails, three prefabricated cables (AWG10/6 square millimeter) for connection of switching device, can be used for motor-protective circuit-breaker PKZM0, PKE and DOL starter/ MSC-D(E)(A) with contactor DILM17 to DILM32, rated operational current: 32A
Documente
Specificatii
| Model/type | |
| Mounting rail armament | 2 mounting rails |
| Connection | |
| Type of electric connection | 3 conductors AWG 10 |
| Electrical | |
| Rated current In | 32 |
| Measurements | |
| Min. busbar thickness | 5 |
| Max. busbar thickness | 10 |
| Width of the adaptor | 45 |
| Rail width | 35 |
| Busbar distance | 60 |
