Descriere

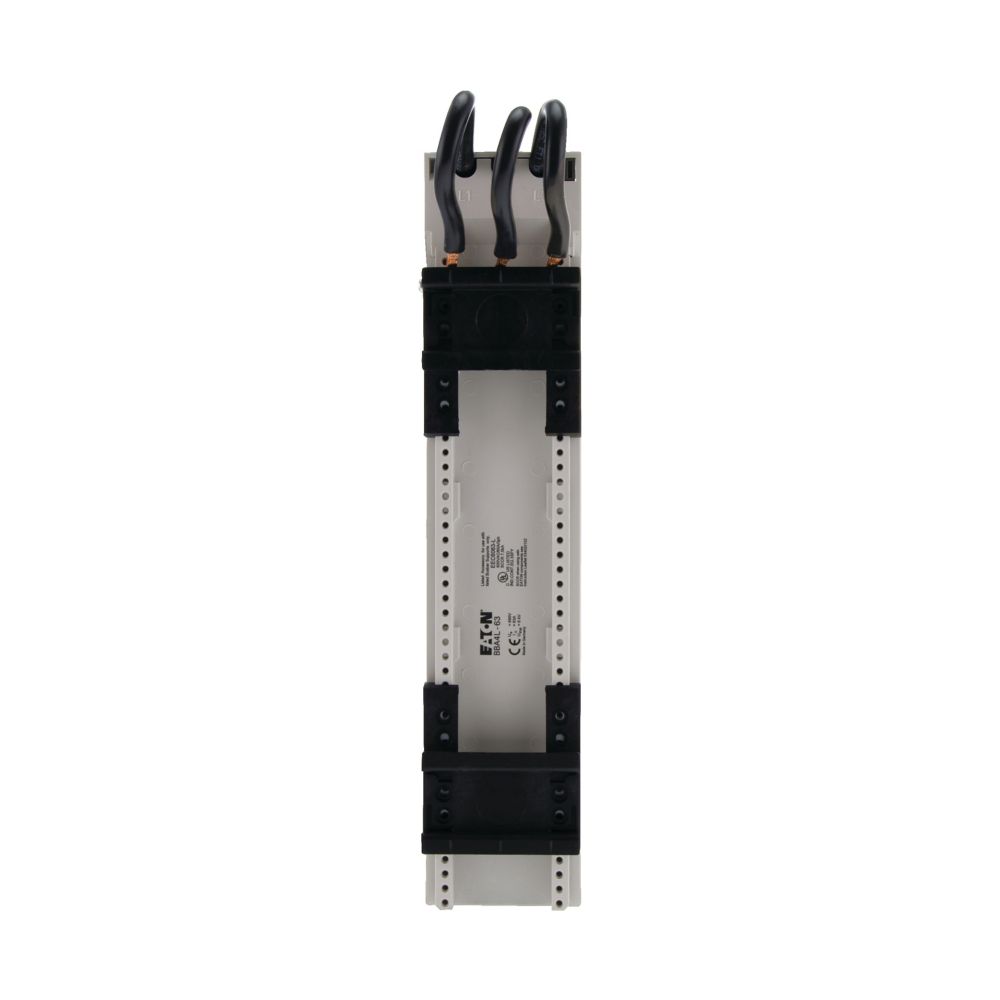

55mm busbar adapter for 60mm busbar system, two mounting rails, three prefabricated cables (AWG8/10 square millimeter) for connection of switching device, can be used for DOL starter with PKZM4 / PKE65 with contactor DILM40 to DILM65, rated operational current: 63A
Documente
Specificatii
| Model/type | |
| Mounting rail armament | 2 mounting rails |
| Connection | |
| Type of electric connection | Round conductor |
| Electrical | |
| Rated current In | 63 |
| Measurements | |
| Min. busbar thickness | 5 |
| Max. busbar thickness | 10 |
| Width of the adaptor | 55 |
| Rail width | 35 |
| Busbar distance | 60 |
