Descriere

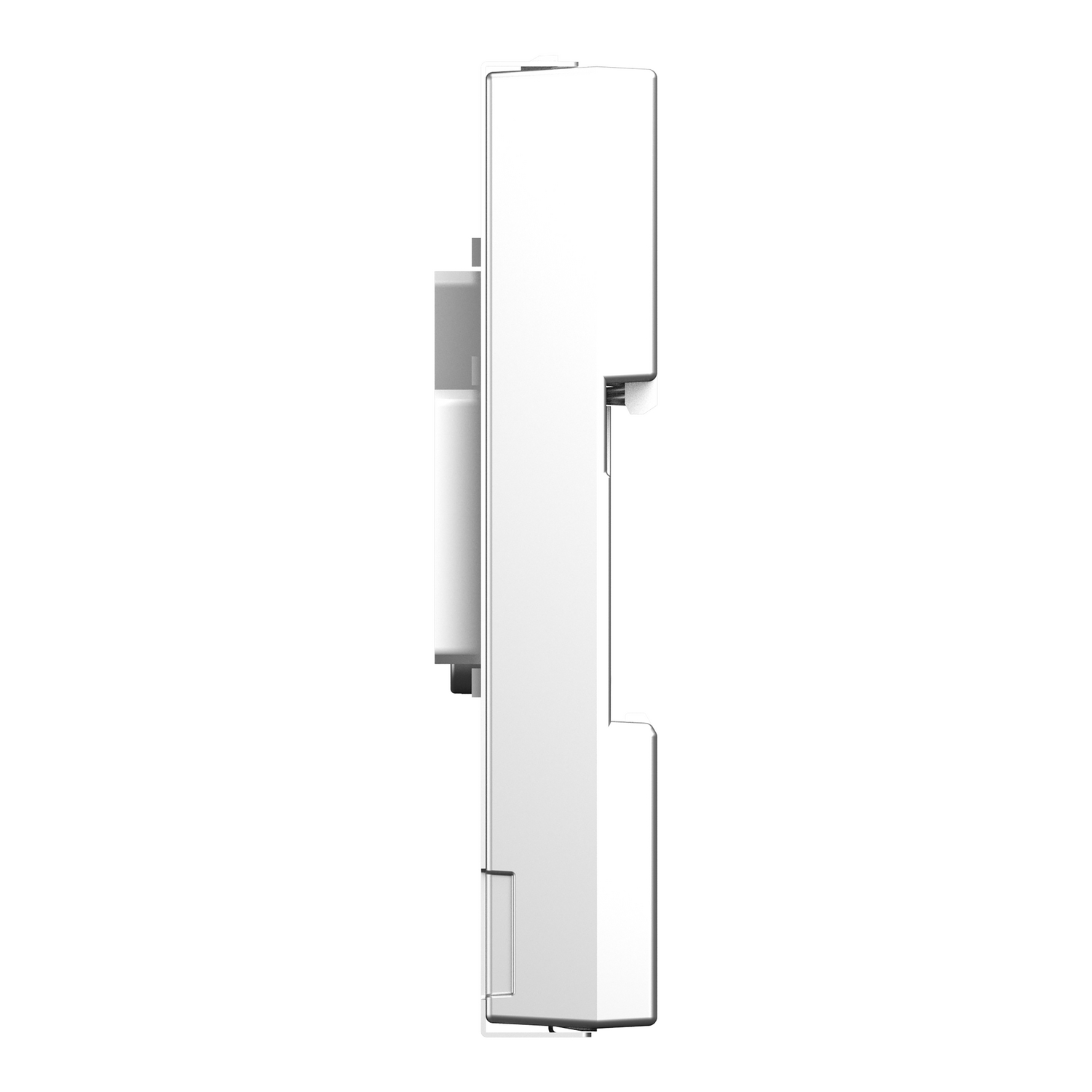

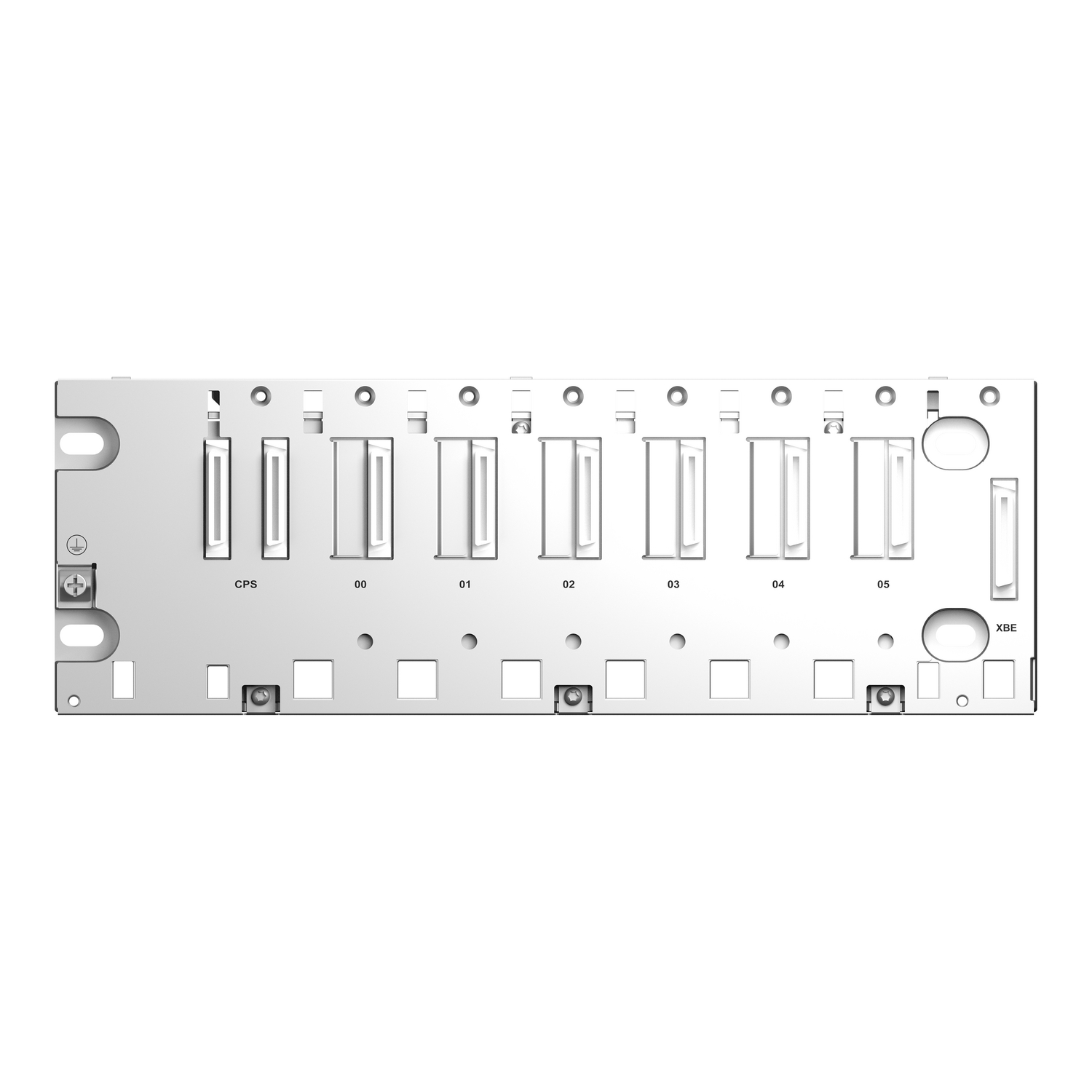

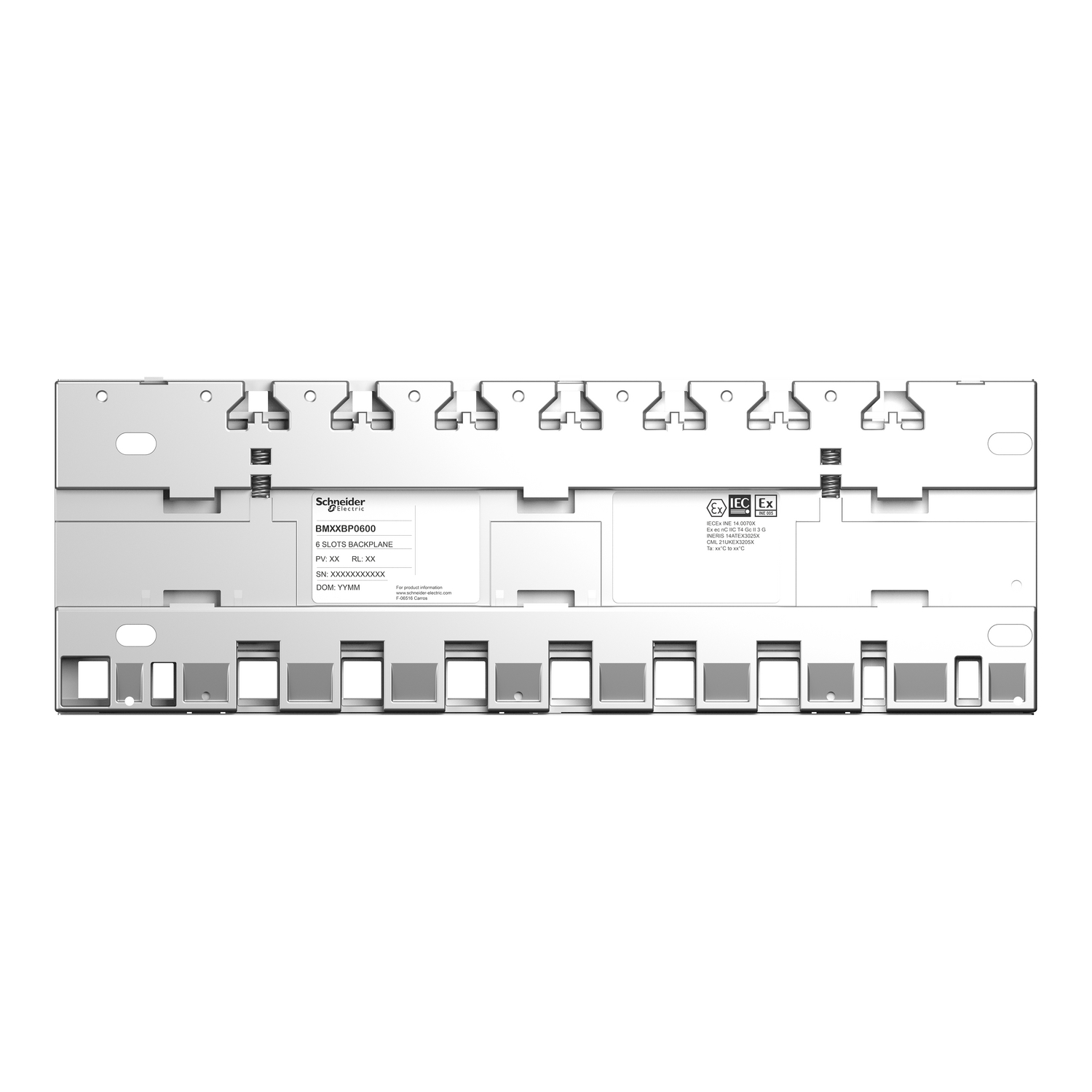

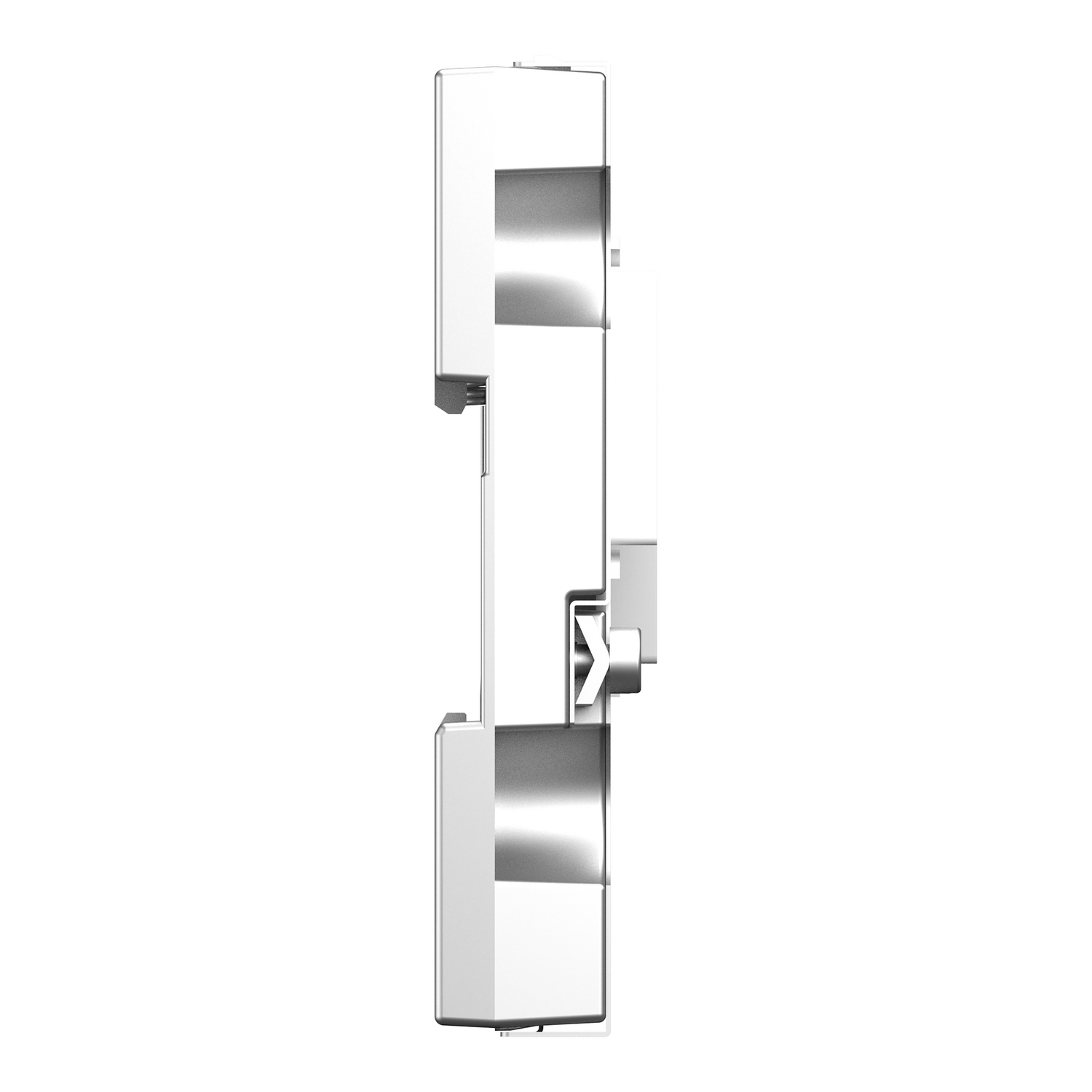

Rack M340 - 6 Sloturi - Montaj Pe Panou, Contrapanou Sau Sina Din
Documente
Specificatii
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Electrical | |
| Output voltage AC 50 Hz | - |
| Type of voltage (input voltage) | - |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Type of output voltage | - |
| With integrated power supply | Yes |
| Input voltage AC 50 Hz | - |
| Input voltage AC 60 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | - |
| Input voltage DC | - |
| Output voltage AC 60 Hz | - |
| Output voltage DC | - |
| Max. input current AC 50 Hz | - |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Mounting/installation | |
| Front built-in possible | Yes |
| Suitable for rail mounting | Yes |
| Wall mounting/direct mounting | Yes |
| Connection | |
| Number of slots | 6 |
| Measurements | |
| Height | 103.7 mm |
| Width | 307.6 mm |
| Depth | 19 mm |
| Application | |
| Suitable for safety functions | No |
| Options | |
| Redundancy | No |
| Rack-assembly possible | Yes |
| Protection | |
| Explosion safety category for dust | Other |
| Explosion safety category for gas | Other |
| Package 1 | |
| volume | 4049,145 cm3 |
| weight | 835 g |
| length | 39,5 cm |
| width | 15,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3595863908909 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 8,385 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 9 |
| qmin | 9 |
| um | CT |
| gtin | 23595863908903 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 45,54 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 36 |
| qmin | 36 |
| um | PF |
