Descriere

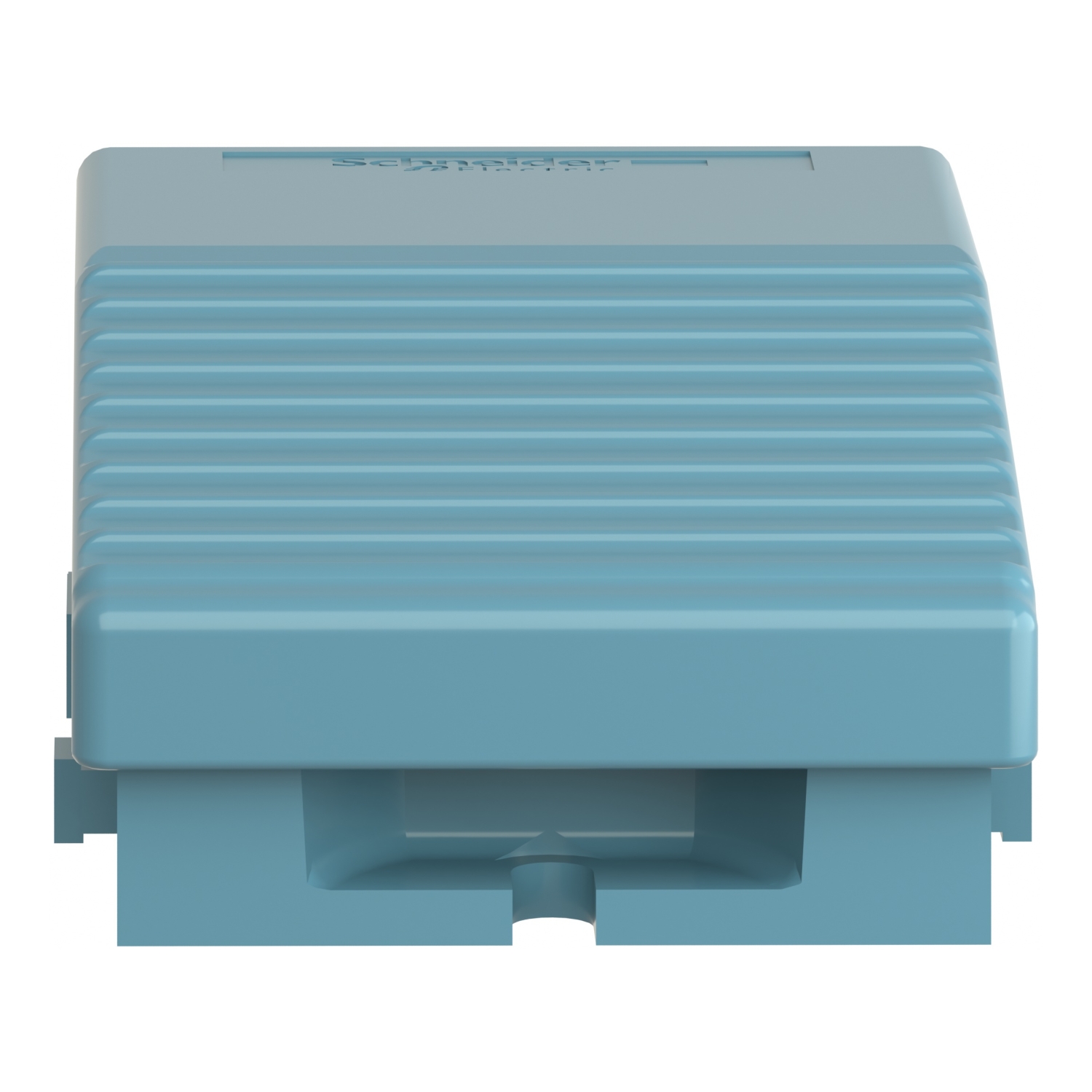

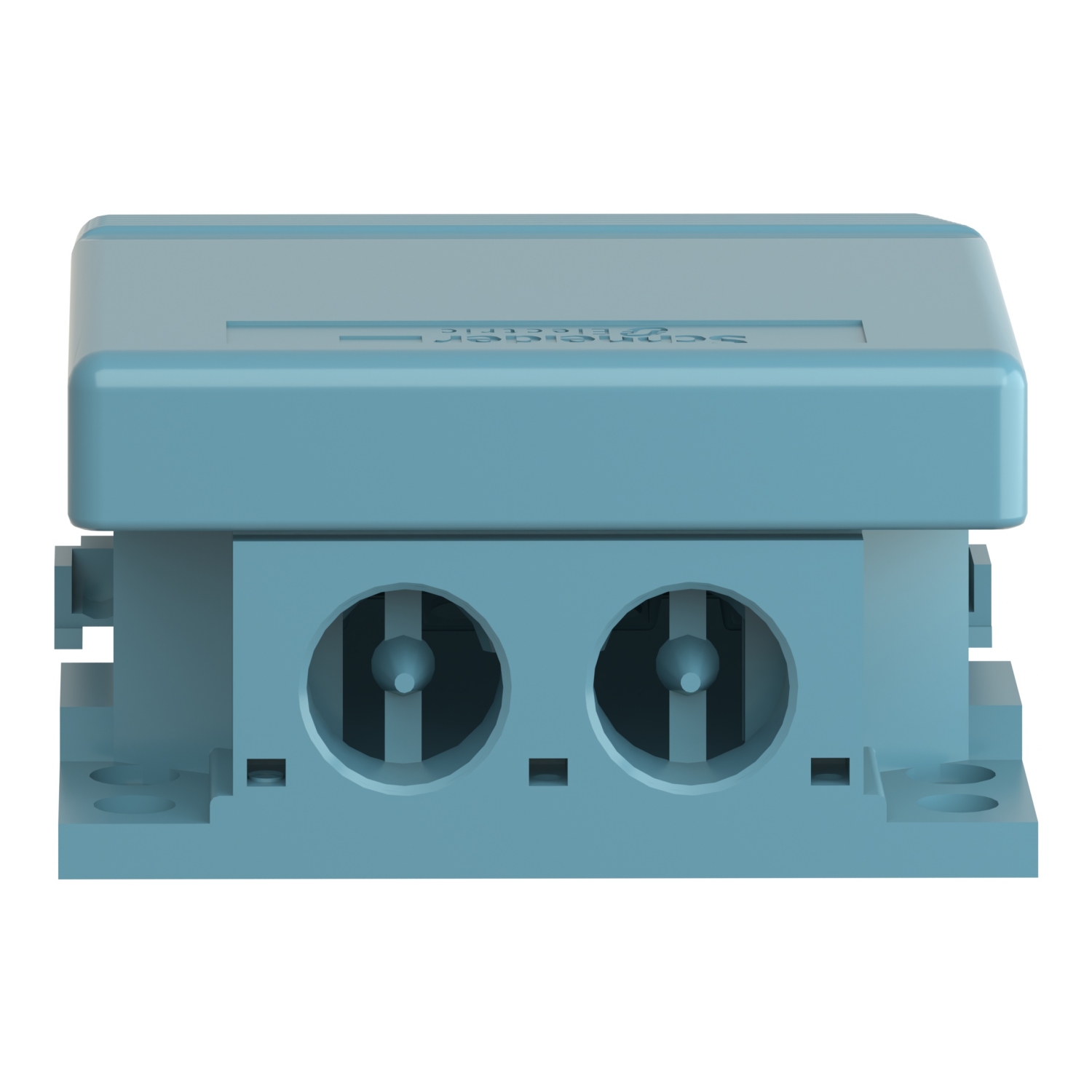

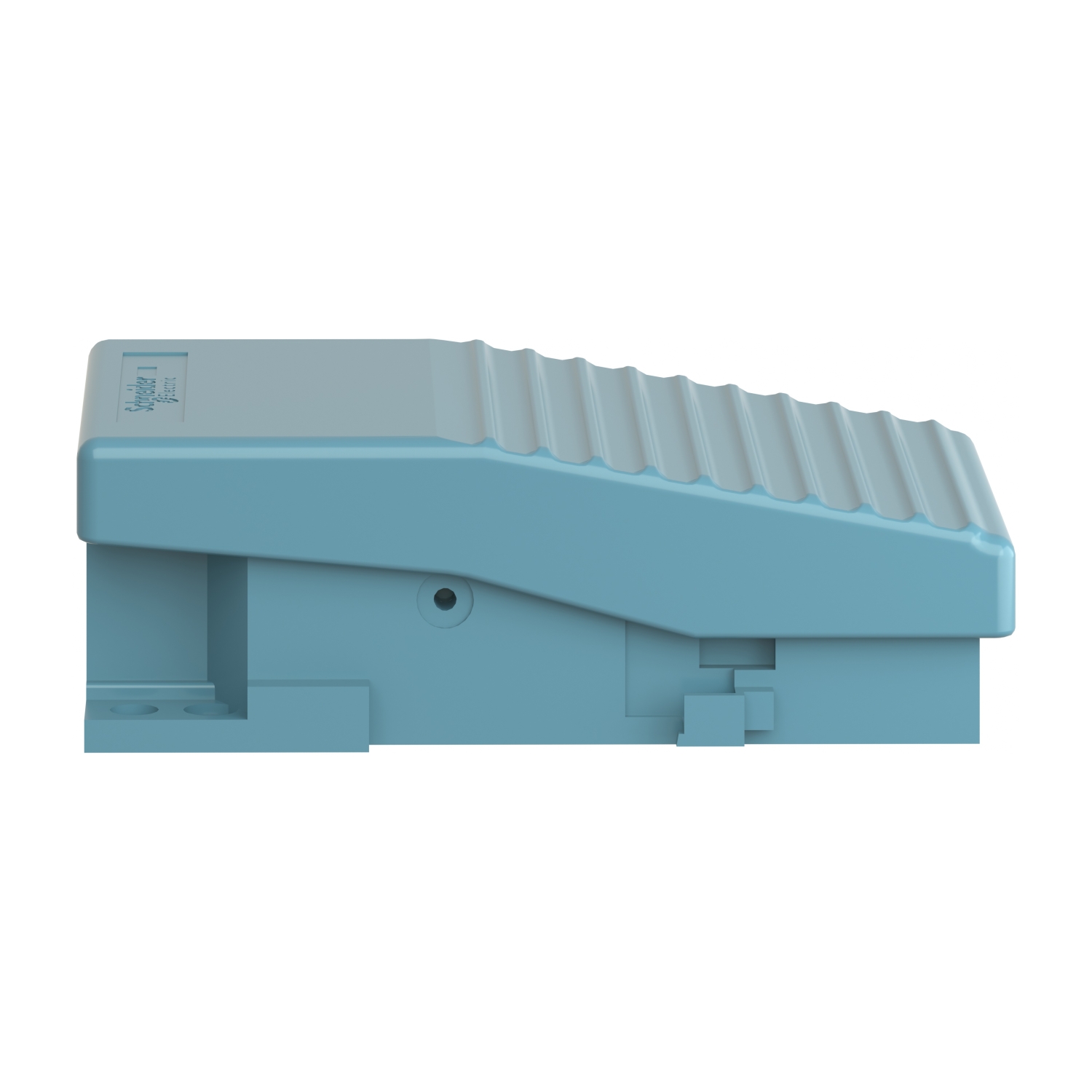

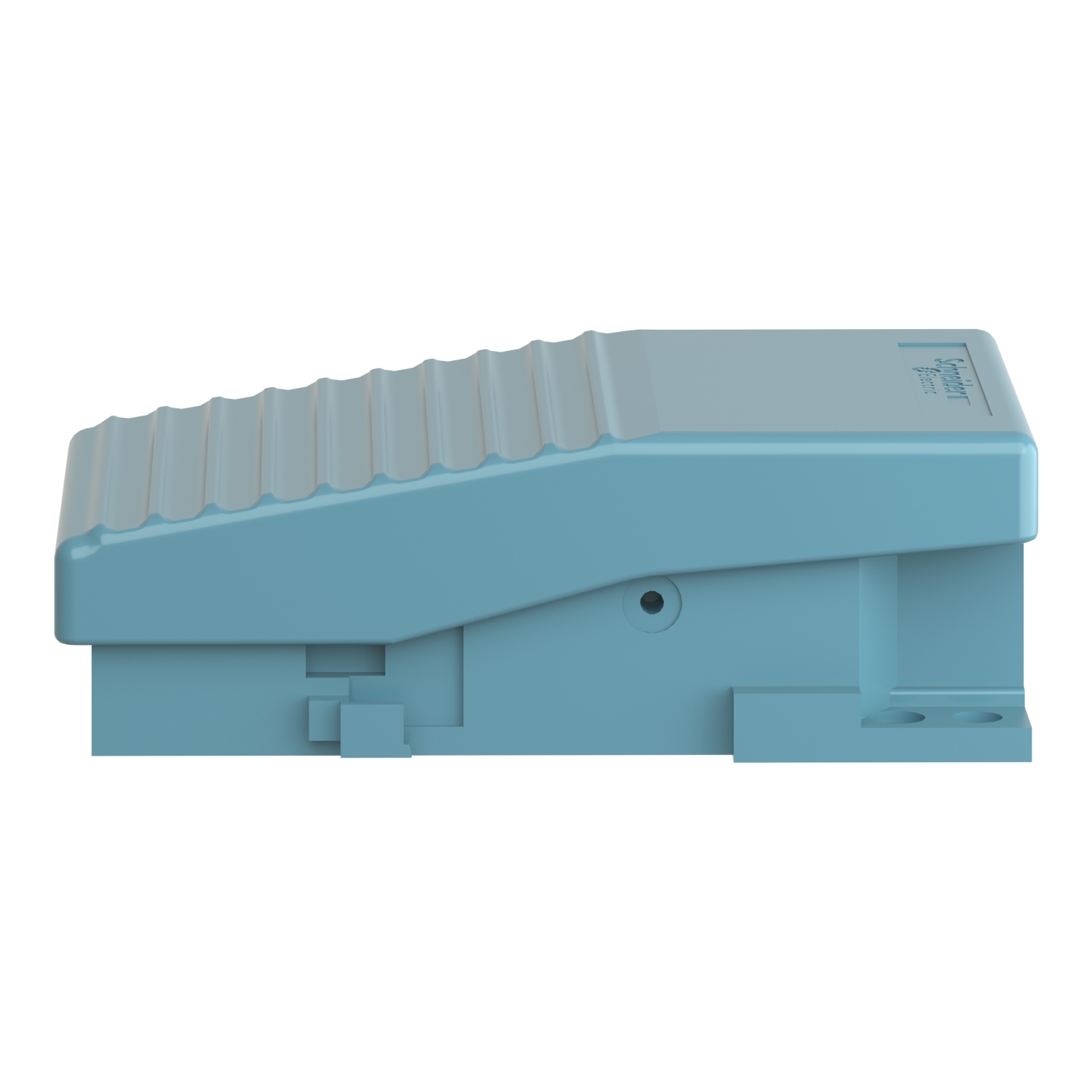

Comutator Picior Simplu - Ip66 -Fara Capac -Metalic -Albastru - 2 Nc + 2 No
Documente
Specificatii
| Colour | |
| Colour | Blue |
| Measurements | |
| Width | 104 mm |
| Depth | 172 mm |
| Height | 104 mm |
| Setting/control | |
| Number of switch positions | 1 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Model/type | |
| With protection hood | No |
| With protective insulation | No |
| Type of command | On or off |
| With interlocking | No |
| Material | |
| Material | Metal |
| Application | |
| Suitable for safety functions | Yes |
| Options | |
| Switching function latching | No |
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 1985,28 cm3 |
| weight | 1,338 kg |
| length | 18,8 cm |
| width | 12 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110650129 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,733 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 43389110650127 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 101,54 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 64 |
| qmin | 64 |
| um | PF |
