Descriere

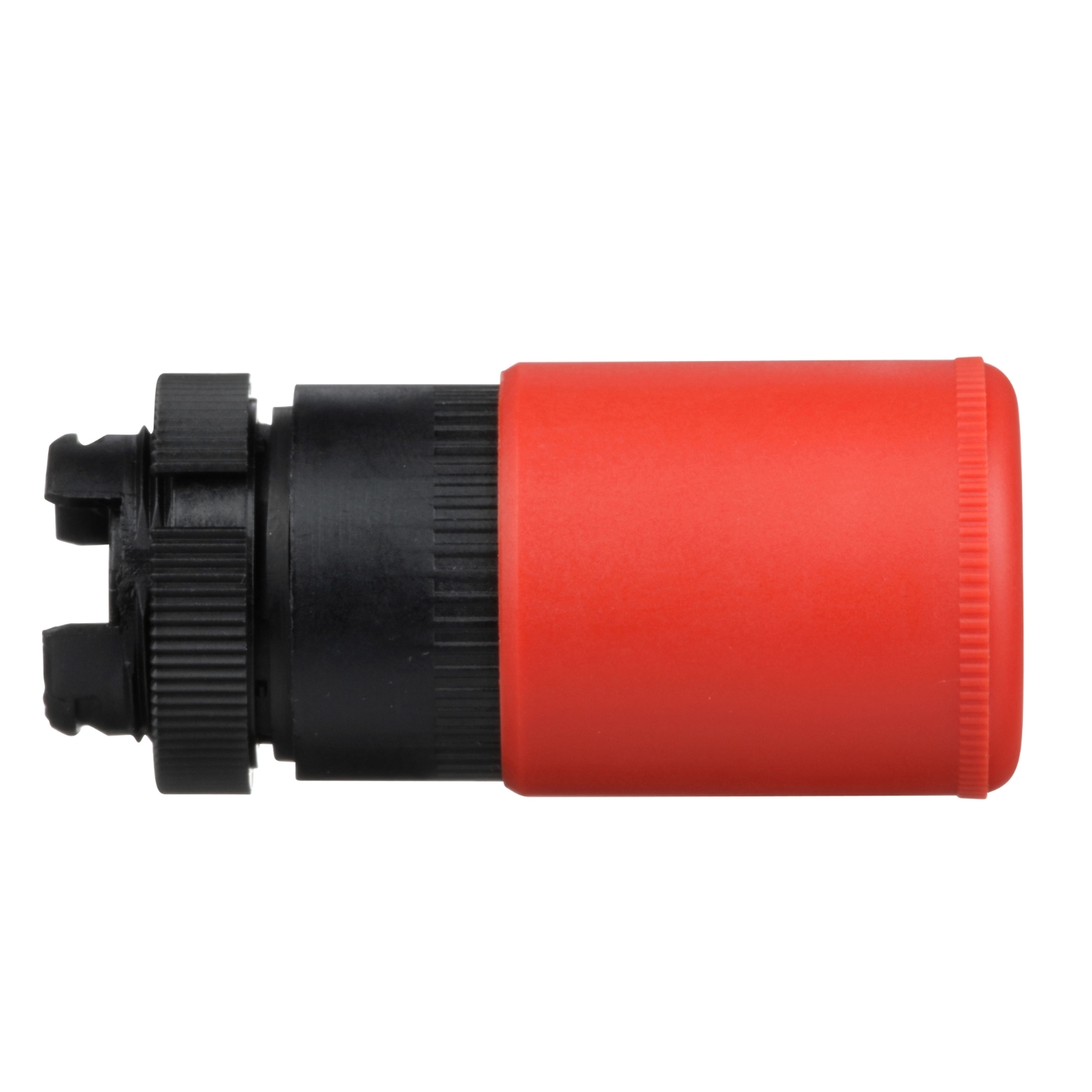

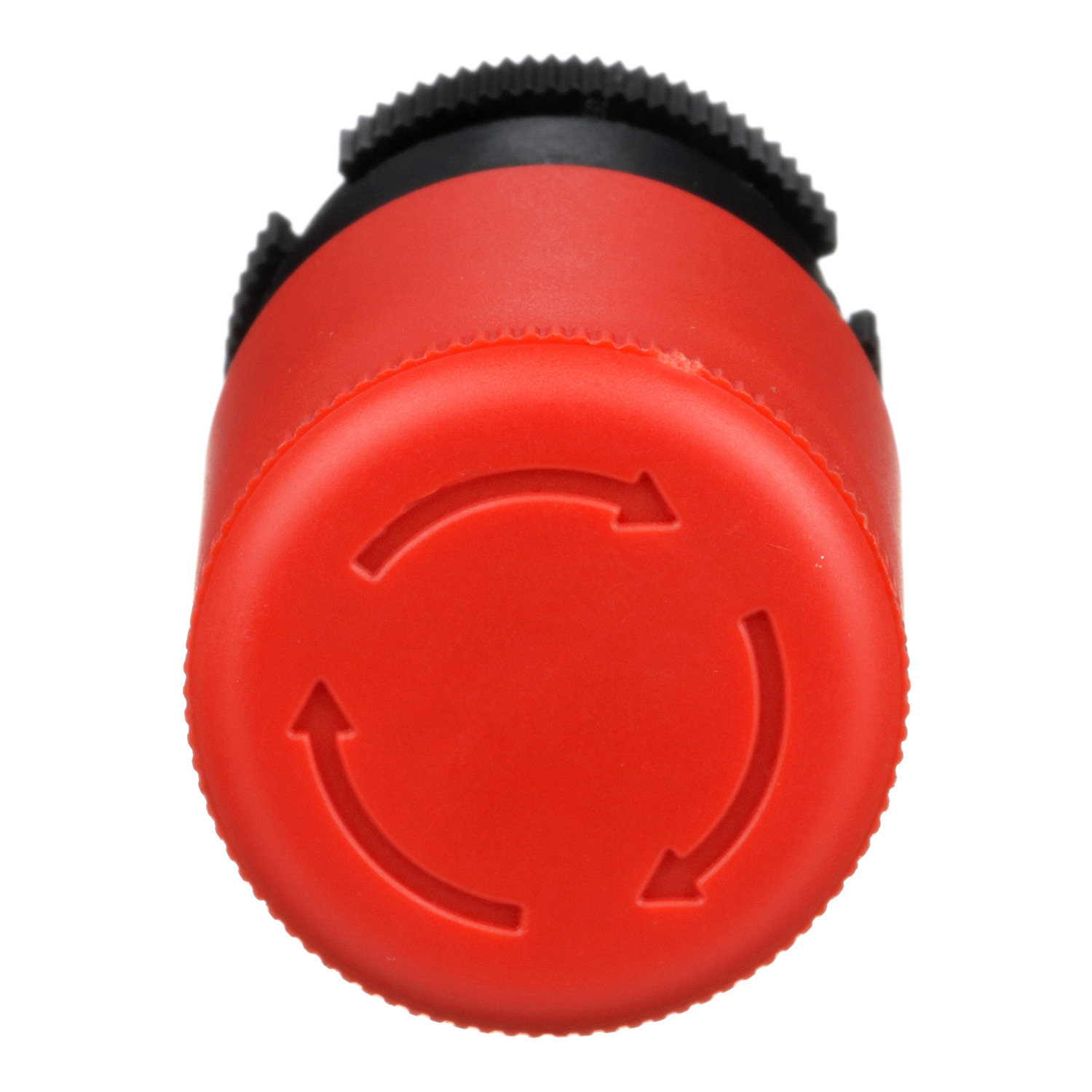

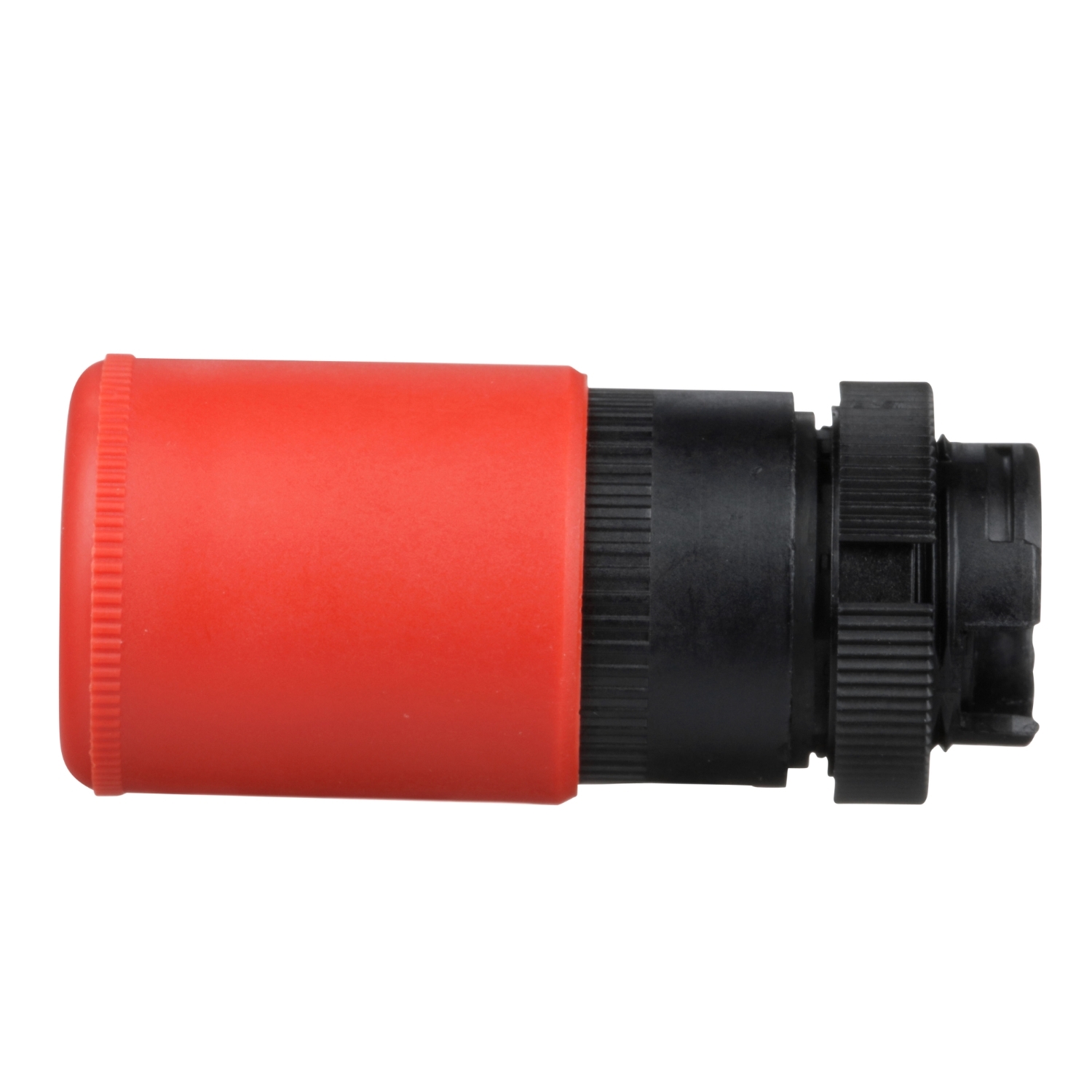

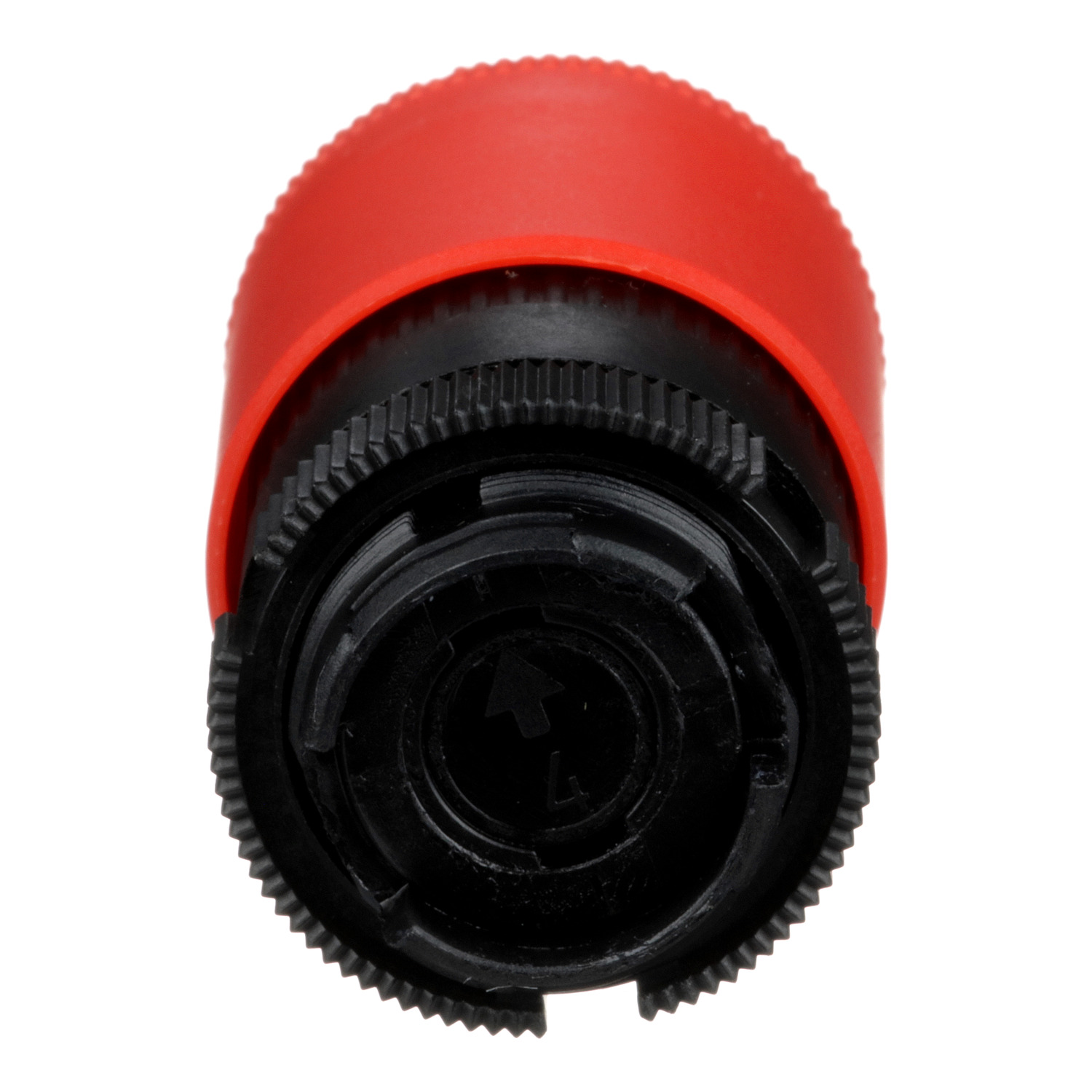

Oprire De Urgenta Ø30 Rosie, Oprirea Declansatorului Capului Si Blocare
Documente
Specificatii
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Colour | |
| Colour front ring | Other |
| Colour button | Red/green |
| Model/type | |
| With lighting | No |
| Type of button | Flat |
| Construction type lens | Round |
| With front ring | No |
| Electrical | |
| Supply voltage lamp | - |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Diameter cap | 30 mm |
| Height opening | - |
| Material | |
| Material front ring | Other |
| Application | |
| Suitable for emergency stop | Yes |
| Suitable for lighting | No |
| Other | |
| Unlocking method | Turn-release |
| Protection | |
| Degree of protection (IP) | IP65/IP67 |
| Degree of protection (NEMA) | 13 |
| Package 1 | |
| volume | 196 cm3 |
| weight | 42 g |
| length | 8 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110591750 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 1,8 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43389110591758 |
