Descriere

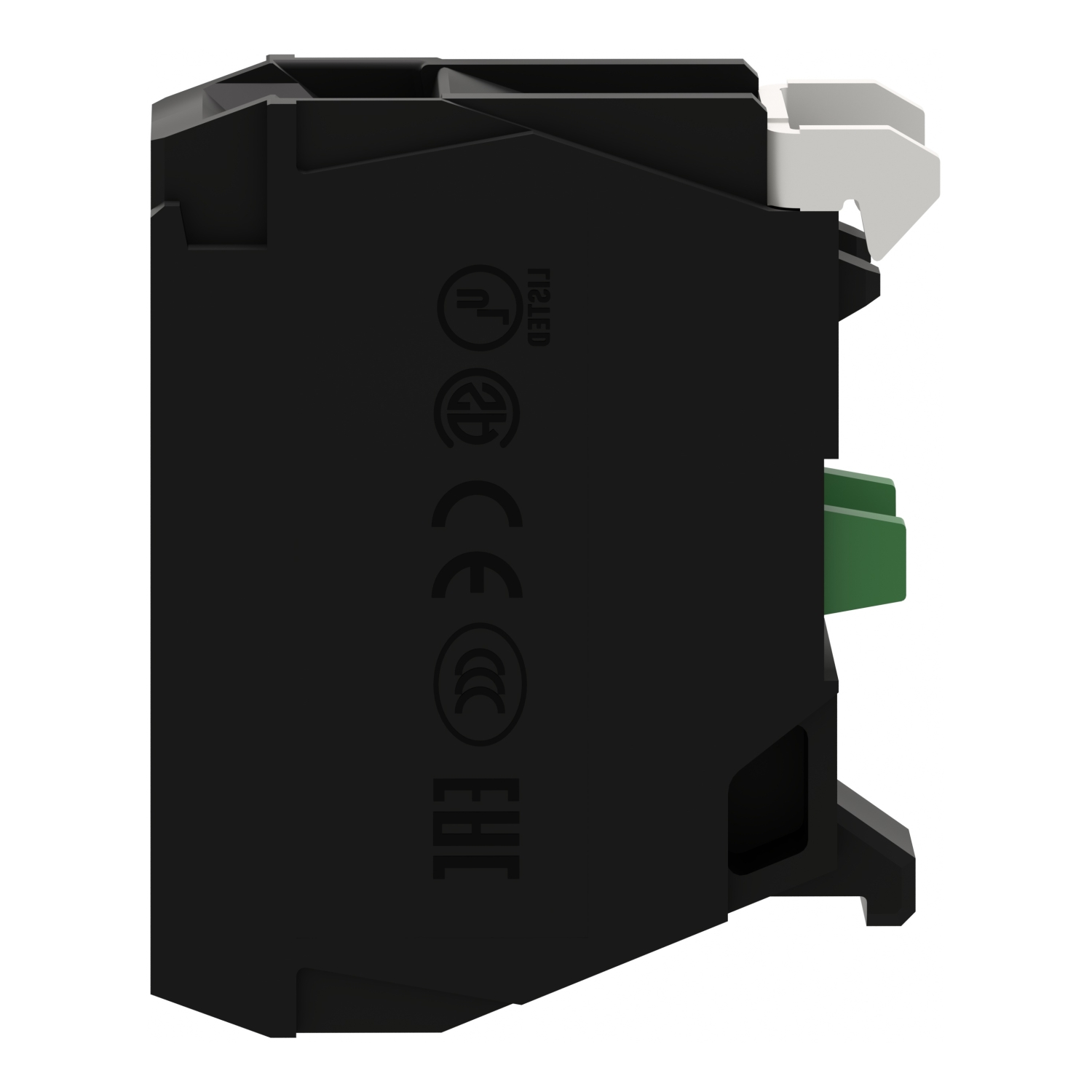

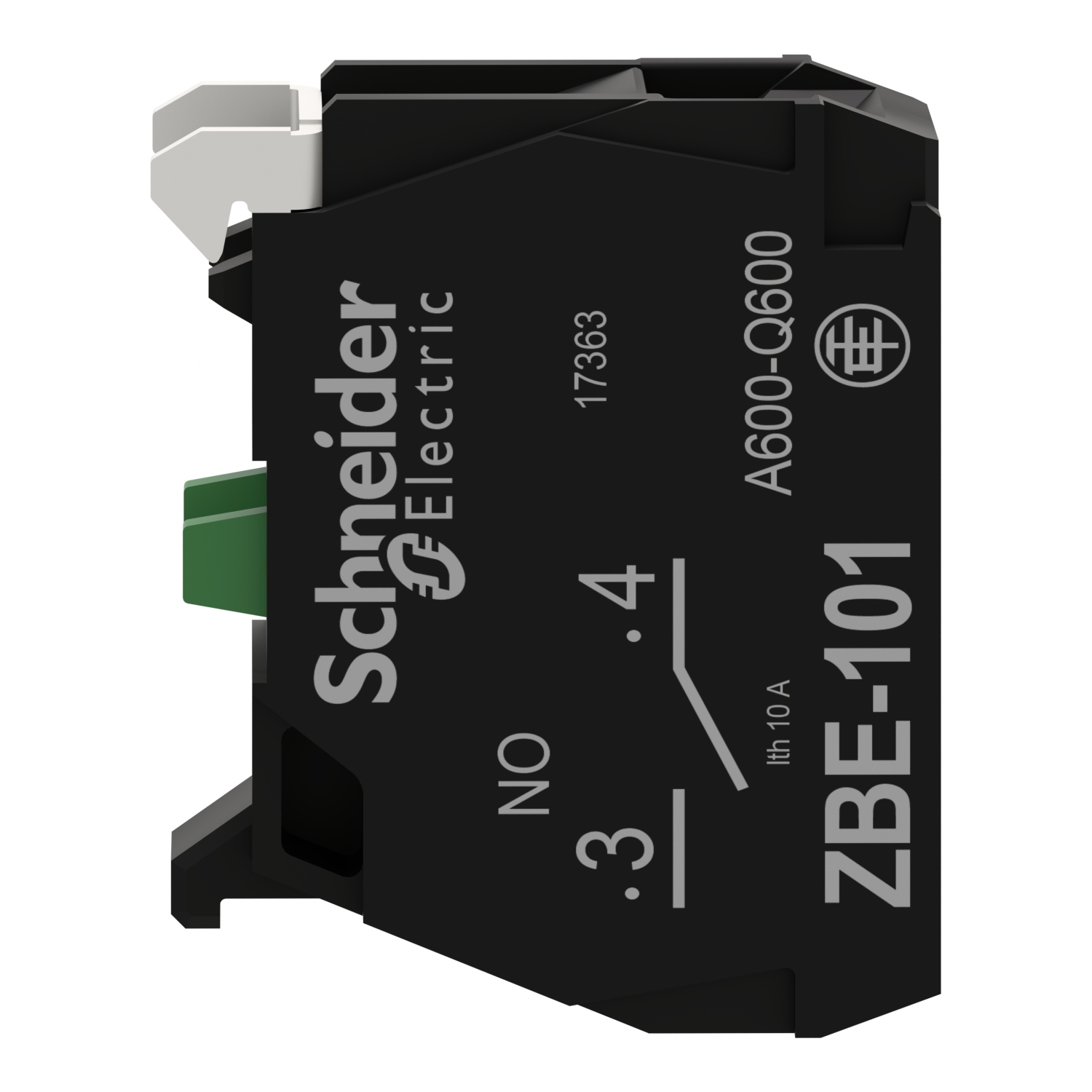

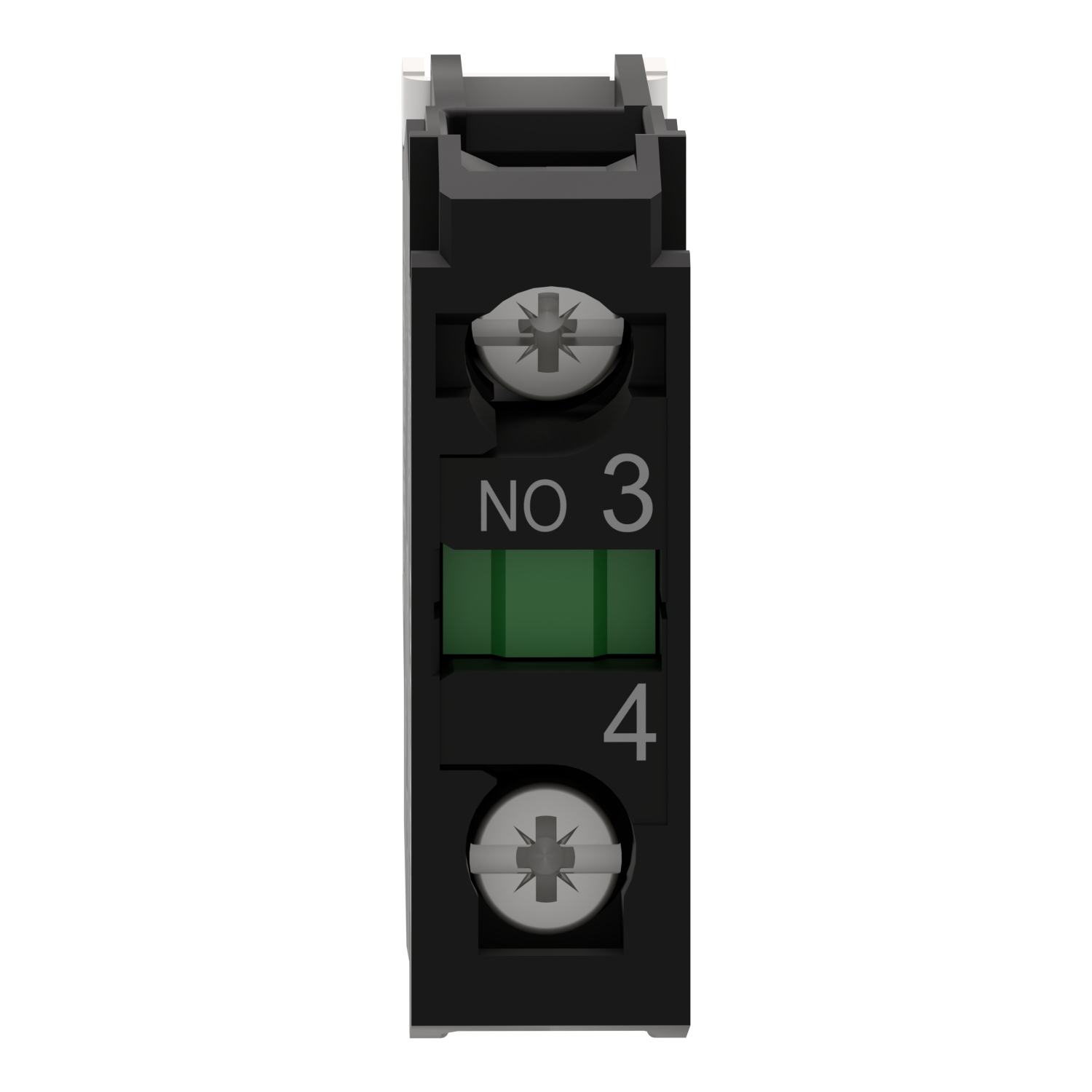

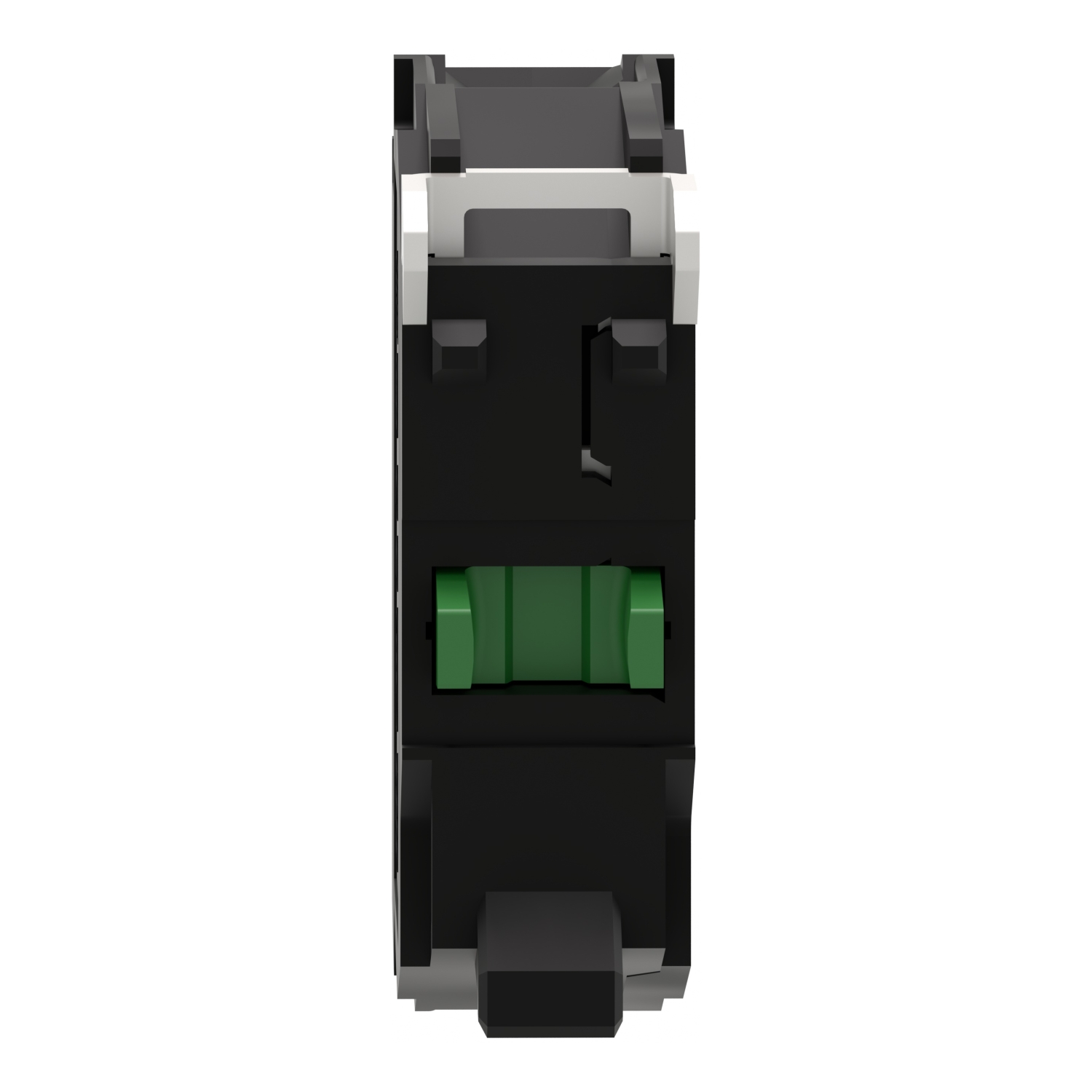

Bloc de Contacte Simplu pentru Cap Ø22 de Borna cu Clema cu surub 1No
Documente
Specificatii
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| Model | Clip-on |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 7,5 cm3 |
| weight | 9 g |
| length | 3 cm |
| width | 2,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110089479 |
| Package 2 | |
| volume | 136,125 cm3 |
| weight | 52,3 g |
| length | 5,5 cm |
| width | 5,5 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13389110089476 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 8,691 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 800 |
| qmin | 800 |
| um | CT |
| gtin | 43389110089477 |
| Package 4 | |
| weight | 78,264 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 6400 |
| qmin | 6400 |
| um | PF |

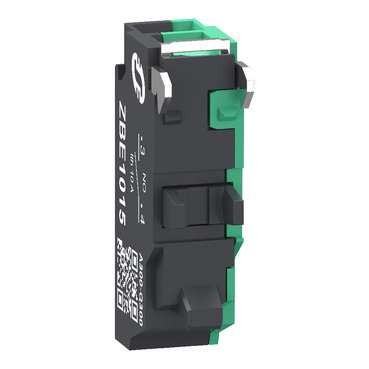

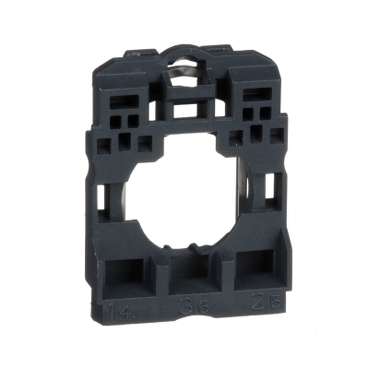

Accesorii
