Descriere

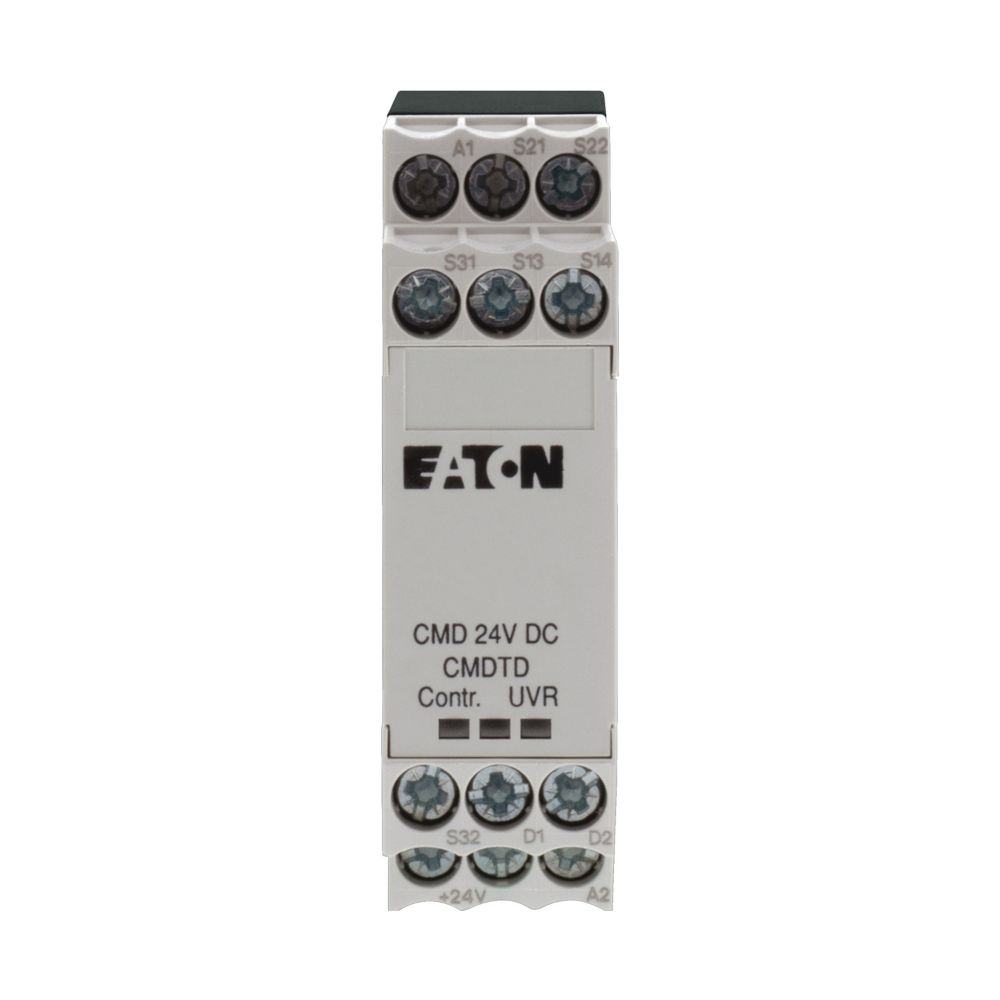

Contactor monitoring device for safe emergency stop applications up to performance level e. Monitors the power contactor's reliable switching. Reduces main power wiring effort., saves redundant contactor set-up
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 0 |
| Rated control supply voltage AC 60 Hz | 0 |
| Rated control supply voltage DC | 24 |
| Voltage type for actuating | DC |
| Rated operation current | 0.167 |
| Rated operation current Ie, 400 V | 0 |
| Operating voltage AC 50 Hz | 0 |
| Operating voltage AC 60 Hz | 0 |
| Operating voltage DC | 24 |
| Voltage type (operating voltage) | DC |
| Rated switch current | 0.065 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Model/type | |
| With LED indication | Yes |
| Application | |
| Suitable for manual operation | No |
| Connection | |
| Interface | No |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Connection type auxiliary circuit | Screw connection |
| Measurements | |
| Width | 23 |
| Height | 83 |
| Depth | 103 |
