Descriere

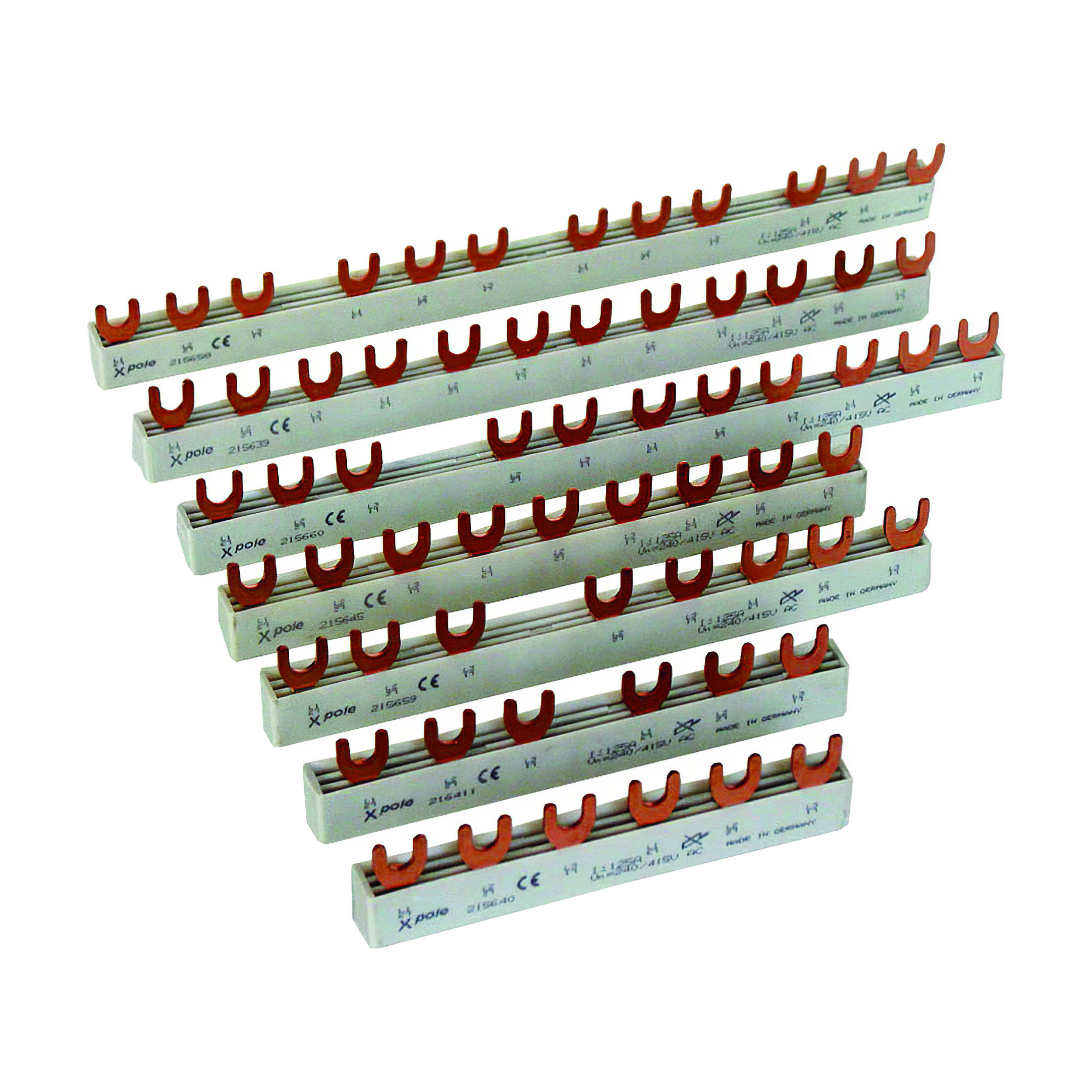

Busbars: flashovers are minimized Use of end caps not required Saves 30% of the assembly time
Specificatii
| Electrical | |
| Number of phases | 3 |
| Number of poles | 3 |
| Rated permanent current Iu | 80 |
| Rated surge voltage | 4 |
| Conditioned rated short-circuit current Iq | 25 |
| Max. rated operation voltage Ue | 415 |
| Rated short-time withstand current lcw | 0 |
| Application | |
| Suitable for number of devices | 2 |
| Suitable for devices with N-conductor | No |
| Suitable for devices with auxiliary switch | No |
| Measurements | |
| Module width | 0 |
| Cross section | 16 |
| Length | 33 |
| Width in number of modular spacings | 9 |
| Options | |
| Can be cut to size | No |
| Insulated | Yes |
| Connection | |
| Type of electric connection | Fork |
| Colour | |
| Colour | Other |
| Package 1 | |
| volume | 0,00005354 |
| weight | 0,086 |
| length | 0,035 |
| width | 0,158 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082914714 |
| Package 2 | |
| volume | 0,001406 |
| weight | 1,72 |
| length | 0,218 |
| width | 0,086 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 9007912611820 |
| Package 3 | |
| volume | 0,017002 |
| weight | 17,2 |
| length | 0,385 |
| width | 0,192 |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| gtin | 9007912611837 |
| Dimensions of product | |
| Volume | 0,00005354 |
| Weight | 0,086 |
| Length | 0,033 |
| Width | 0,156 |
| Depth | 0,0104 |
