Descriere

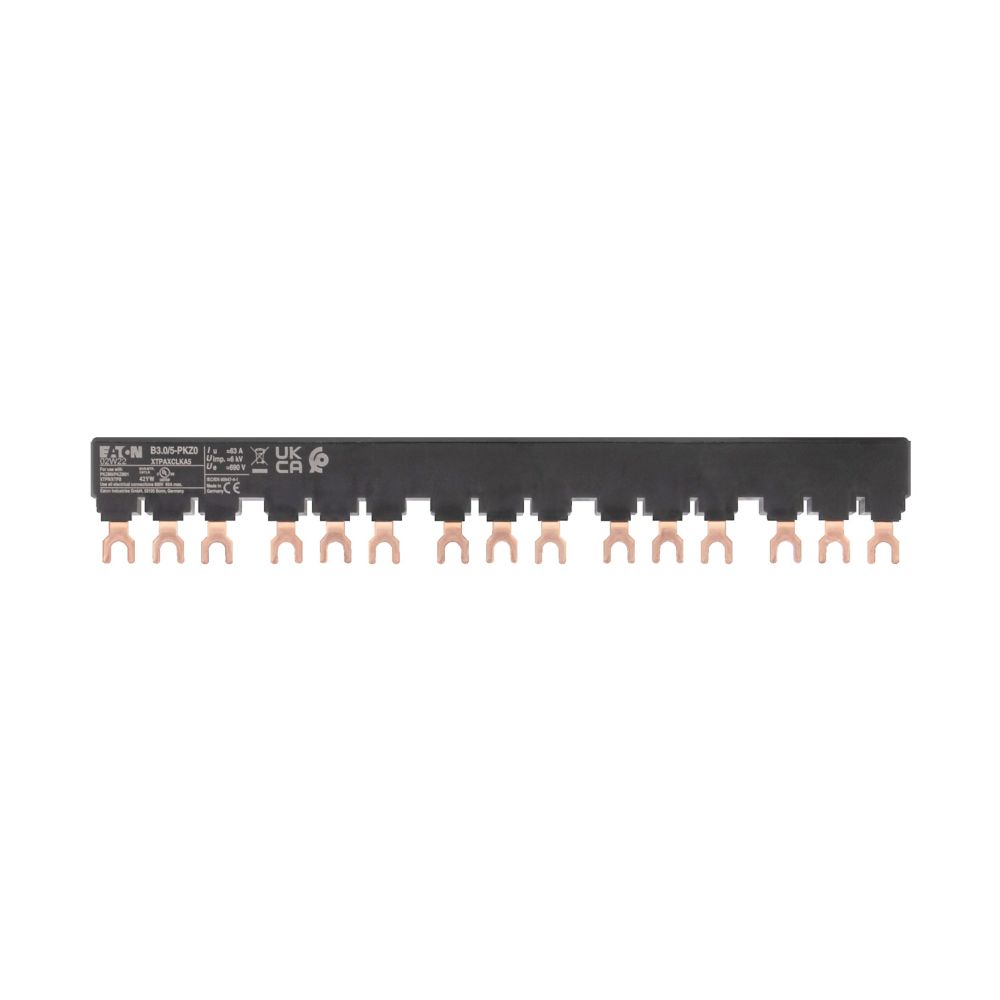

Three-phase busbar link, incoming unit via terminals 1,3,5 protective against direct contact., short-circuit proof, can be extended by rotating installation, for parallel feeding of multiple motor-protective circuit-breakers
Specificatii
| Electrical | |
| Number of phases | 3 |
| Number of poles | 3 |
| Rated permanent current Iu | 63 |
| Rated surge voltage | 6 |
| Conditioned rated short-circuit current Iq | 0 |
| Max. rated operation voltage Ue | 690 |
| Rated short-time withstand current lcw | 0 |
| Application | |
| Suitable for number of devices | 5 |
| Suitable for devices with N-conductor | No |
| Suitable for devices with auxiliary switch | No |
| Measurements | |
| Module width | 45 |
| Cross section | 0 |
| Length | 225 |
| Width in number of modular spacings | 12.5 |
| Options | |
| Can be cut to size | No |
| Insulated | Yes |
| Connection | |
| Type of electric connection | Fork |
| Colour | |
| Colour | Black |
