Descriere

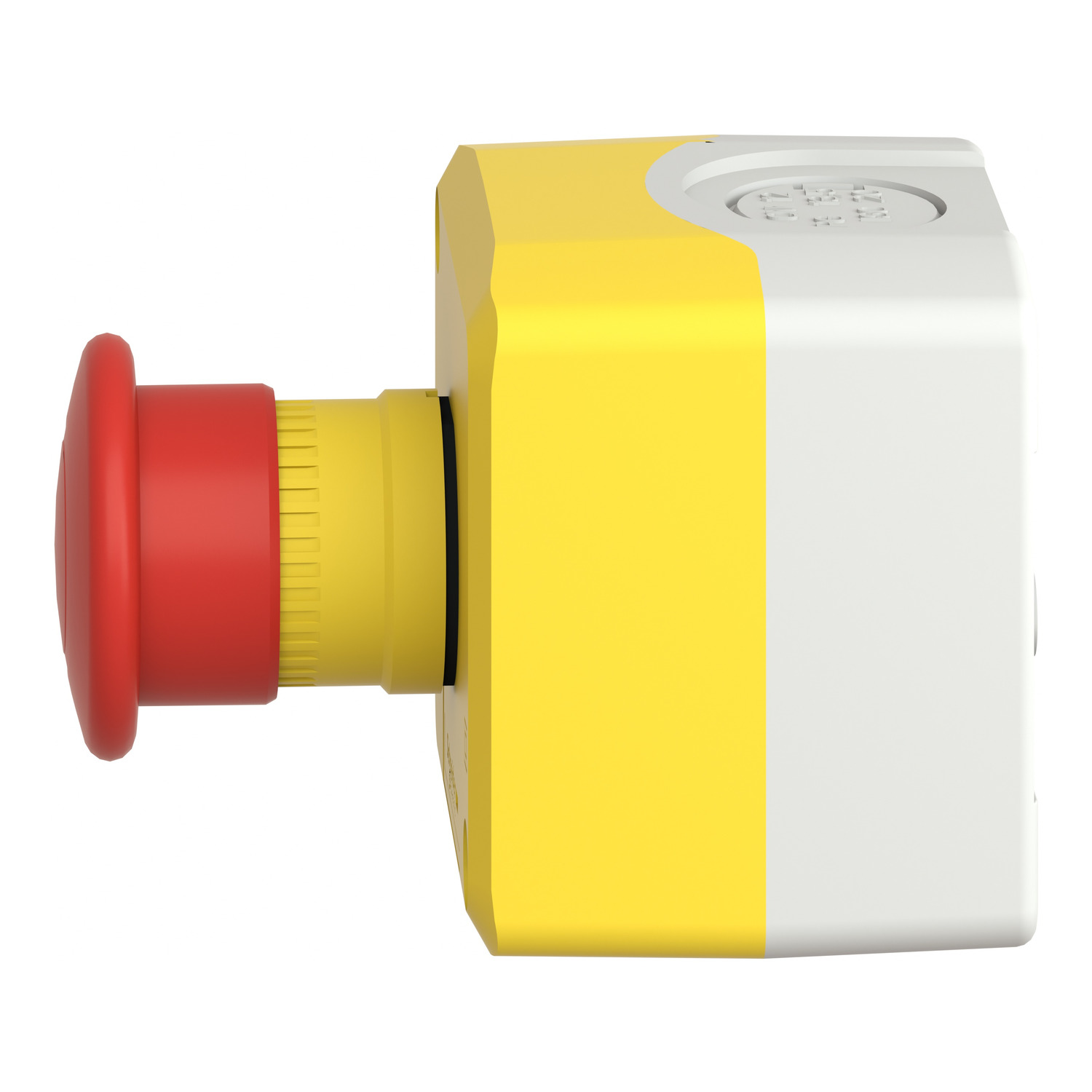

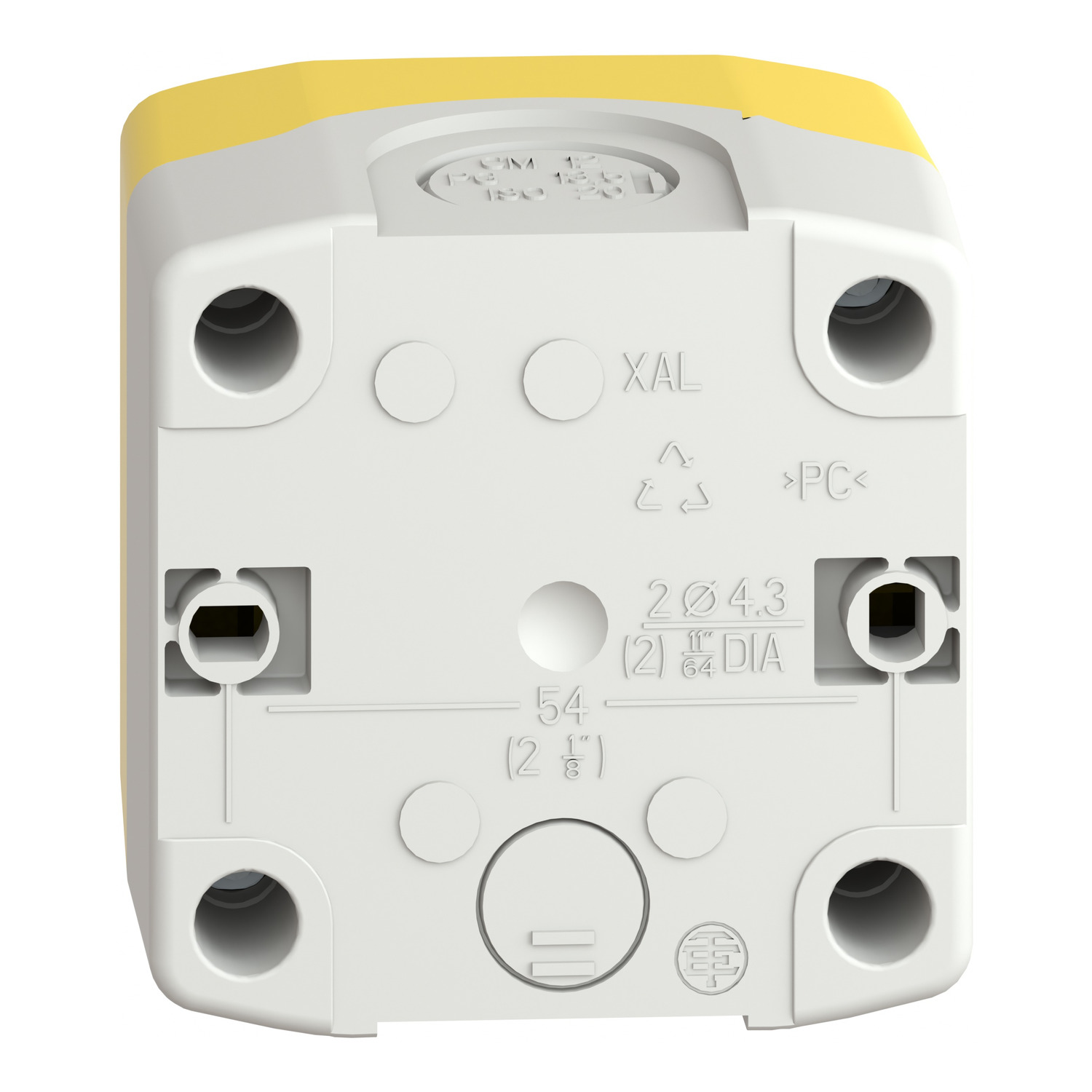

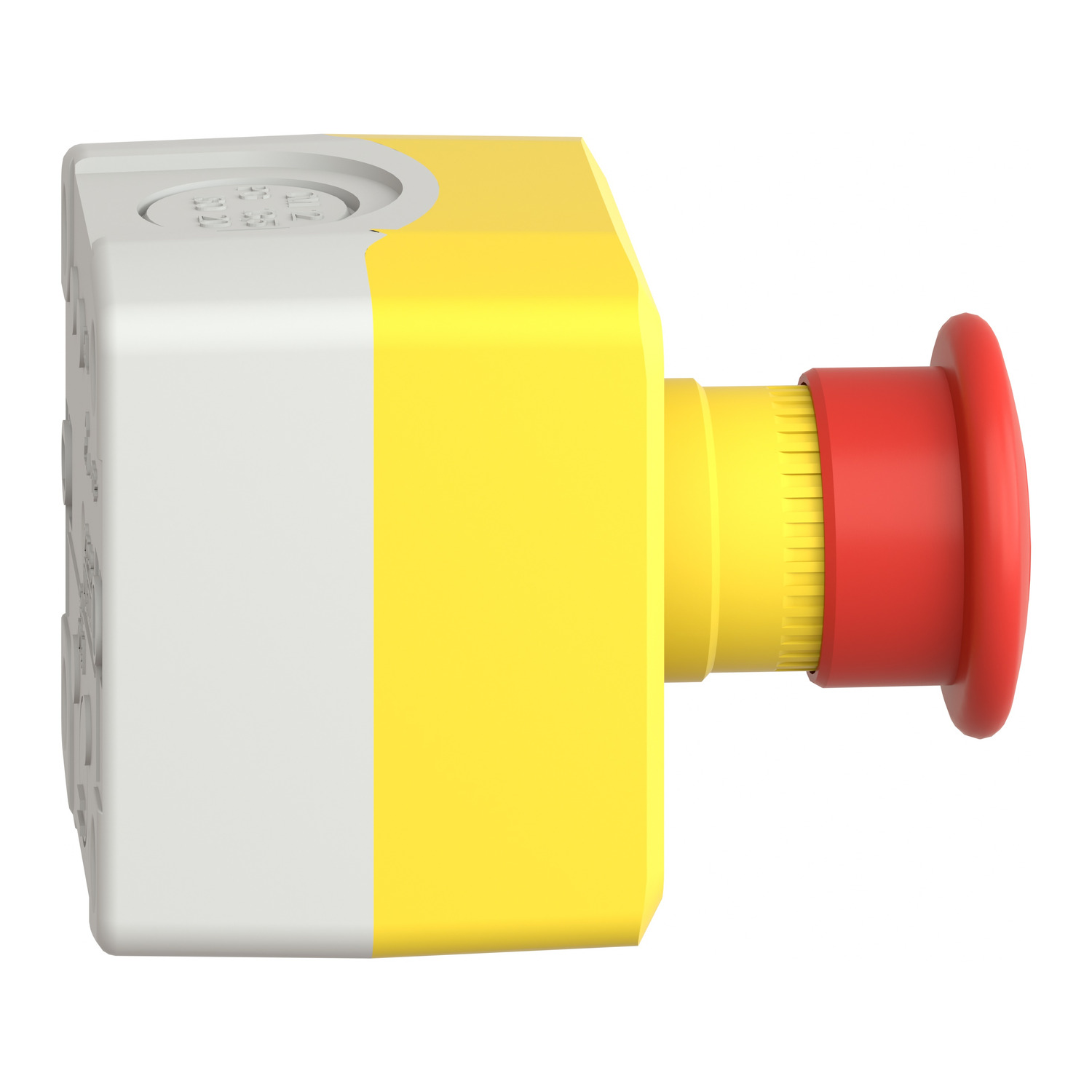

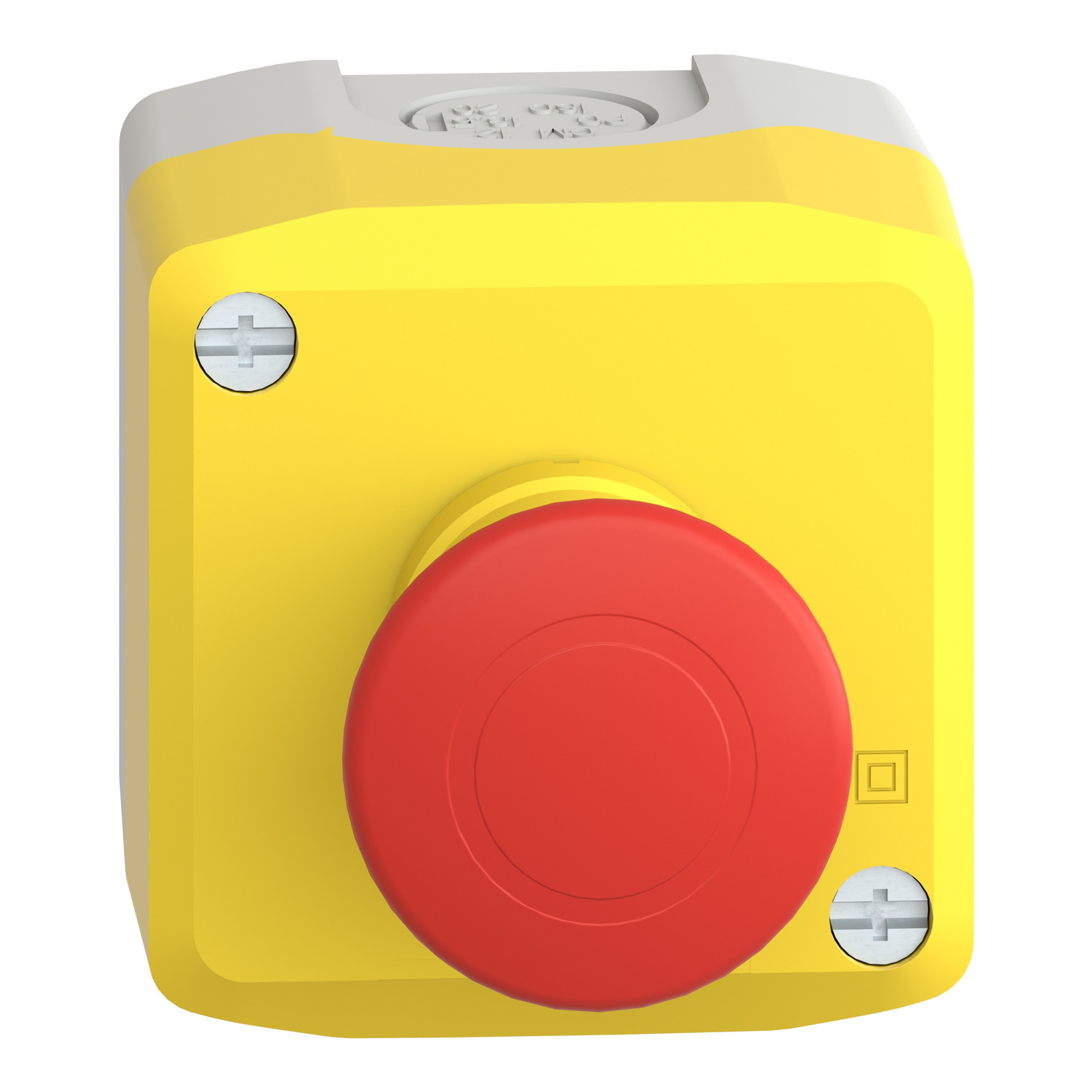

Statie galbena - 1 buton cap ciuperca rosu Ø40 imping.-tragere 1NC
Documente
Specificatii
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Connection type auxiliary circuit | Screw connection |
| Protection | |
| Degree of protection (IP) | IP67 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| With lighting | No |
| Measurements | |
| Hole diameter | 22.5 mm |
| Diameter cap | 40 mm |
| Electrical | |
| Supply voltage lamp | - |
| Mounting/installation | |
| Mounting method | Surface mounting |
| Other | |
| Unlocking method | Pull-release |
| Package 1 | |
| volume | 488,977 cm3 |
| weight | 165 g |
| length | 7,1 cm |
| width | 7,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119048101 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,114 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43389119048109 |

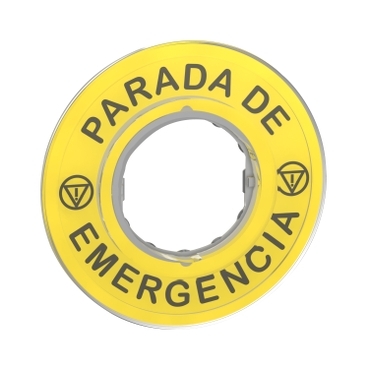

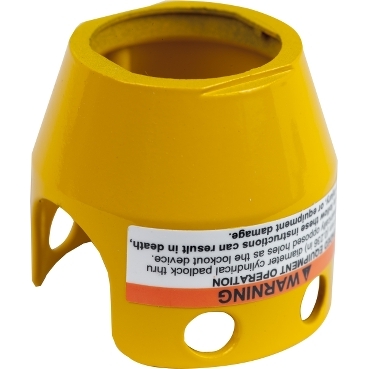

Accesorii
