Descriere

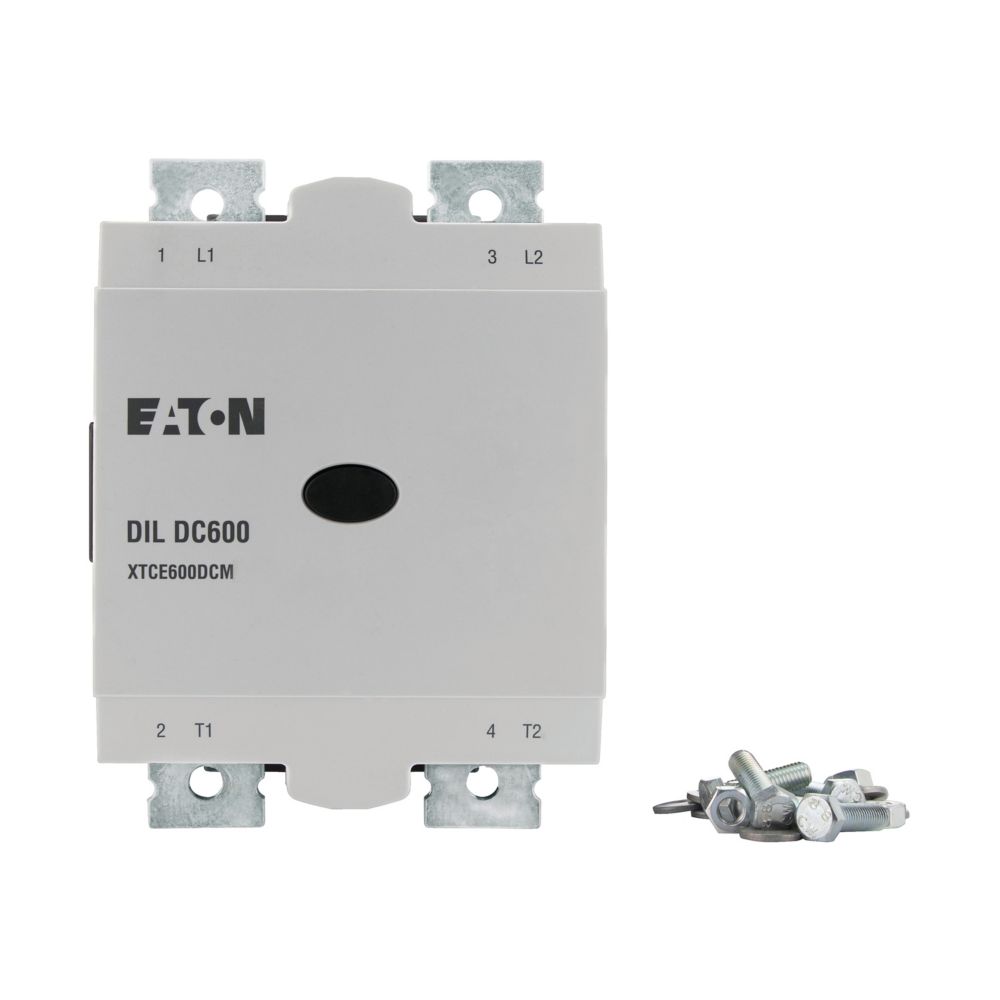

DC contactor, device for world markets: UL/CSA, CCC, compact dimensions, comfort series with the option of being directly actuated via PLC, with integrated suppressor circuit in the actuation electronics, conforms to IEC/EN 60947, with AC/DC wide-voltage-range coil, electronically controlled, minimized pick-up and hold-in power, enhanced electromagnetic compatibility, control cable connections with screw terminals, 2 N/O 2 N/C auxiliary contacts installed, safe isolation as per EN 61140, interlocked opposing contacts, screw fixing, can be used for up to 1000 V, IP00 degree of protection , mechanical life of 1 million switching operations, available accessories: side-mounting auxiliary contact module
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 |
| Rated control supply voltage AC 60 Hz | 110 |
| Rated control supply voltage DC | 110 |
| Voltage type for actuating | DC |
| Operating voltage DC | 110 |
| Rated operation current Ie at DC-3 / DC-5 at 440 V | 0 |
| Rated operation power at DC-3 / DC-5 at 440 V | 0 |
| Rated operation power NEMA | - |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 2 |
| Type of electrical connection of main circuit | Connection rail |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 160 |
| Height | 219 |
| Depth | 248 |
| Package 1 | |
| volume | 0,015992 |
| weight | 8,186 |
| length | 0,339 |
| width | 0,185 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081782505 |
| Dimensions of product | |
| Volume | 0,00869 |
| Weight | 7,5 |
| Length | 0,248 |
| Width | 0,16 |
| Depth | 0,219 |
