Descriere

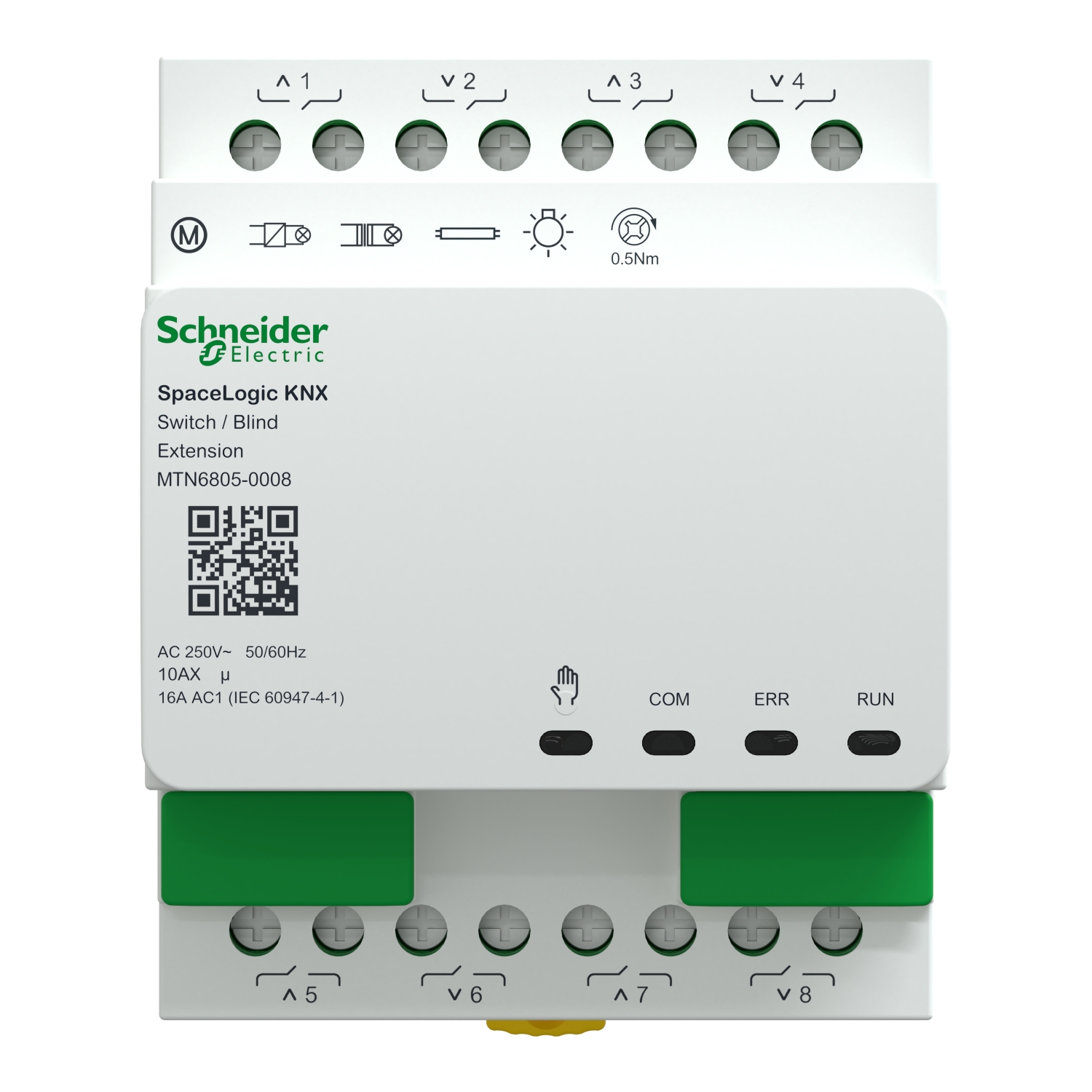

Extensie comutare/jaluzele SpaceLogic KNX. Extensie comutare/jaluzele SpaceLogic KNX este un actuator de comutare care extinde canalele unui dispozitiv SpaceLogic KNX Master comutare/jaluzele sau Master universal de dimare. Pentru controlul independent a pana la 4 jaluzele/rulouri sau pentru comutarea a pana la 8 sarcini prin intermediul contactelor deschise. Functia jaluzelelor sau a canalelor de comutare poate fi configurata liber.
Documente
Specificatii
| Connection | |
| With bus connection | Yes |
| Number of inputs | 8 |
| Setting/control | |
| Local operation/hand operation | Yes |
| Electrical | |
| Max. switching power | 2300 W |
| Switching current (resistive) | 16 A |
| Model/type | |
| With switch function | Yes |
| Type of current | AC |
| With LED indication | Yes |
| Measurements | |
| Width in number of modular spacings | 4 |
| Min. depth of built-in installation box | 66 mm |
| Other | |
| Max. number of venetian-blind outputs | 4 |
| Communication | |
| Other bus systems | None |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system KNX | Yes |
| Bus system LON | No |
| Bus system Powernet | No |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Options | |
| Radio frequency bidirectional | No |
| Bus module detachable | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 1499,036 cm3 |
| weight | 369 g |
| length | 15,7 cm |
| width | 12,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481816979 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 9,596 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 13606481816976 |
