Descriere

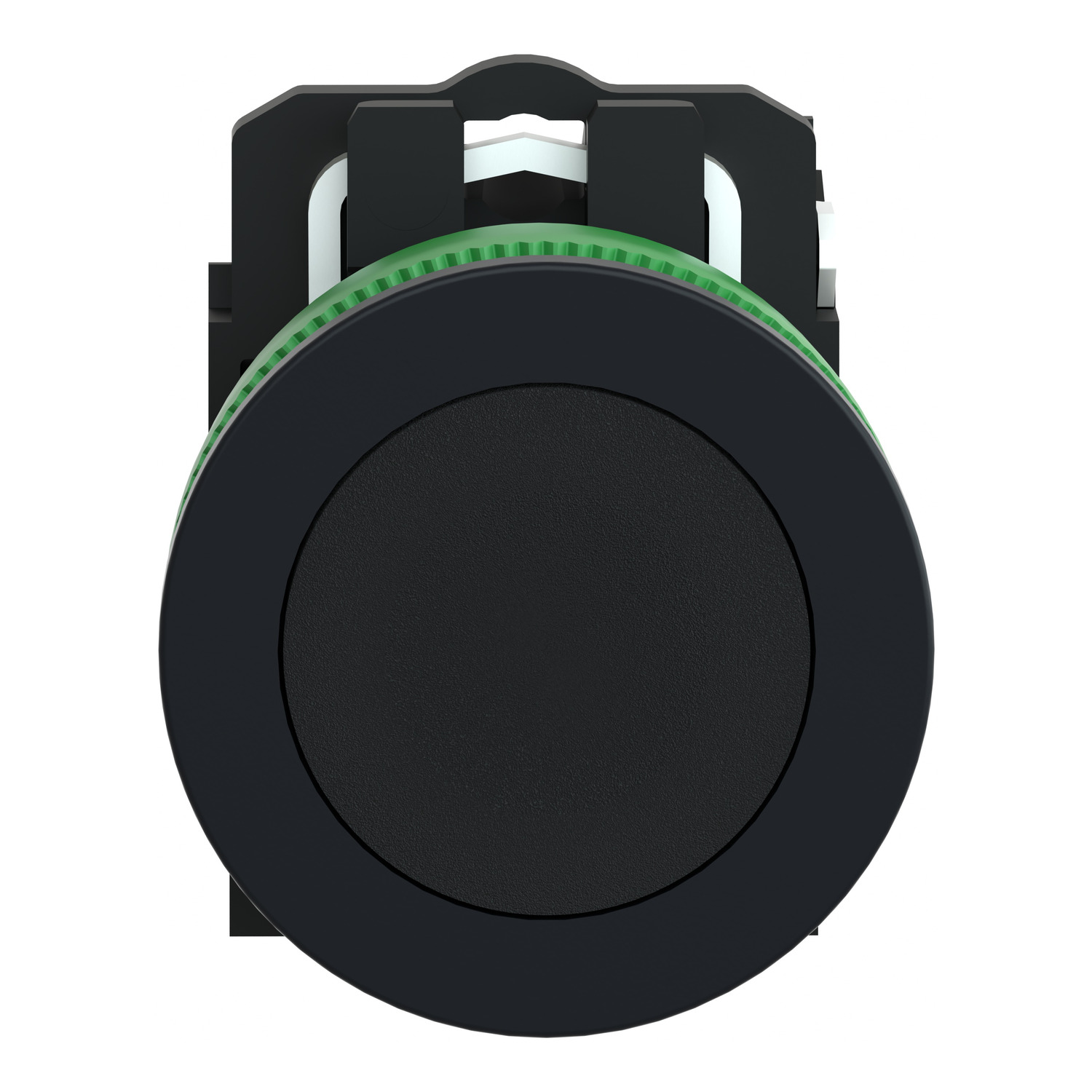

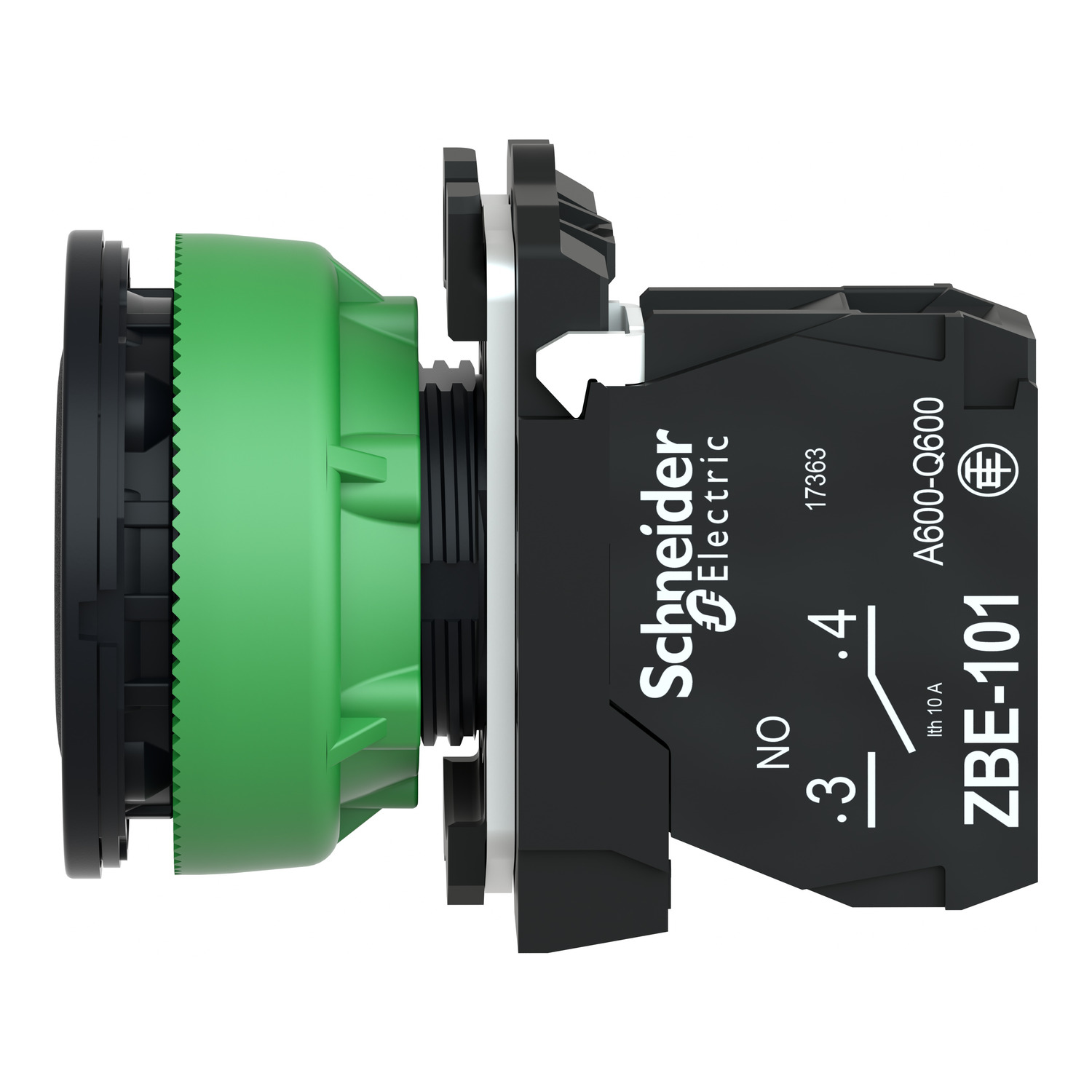

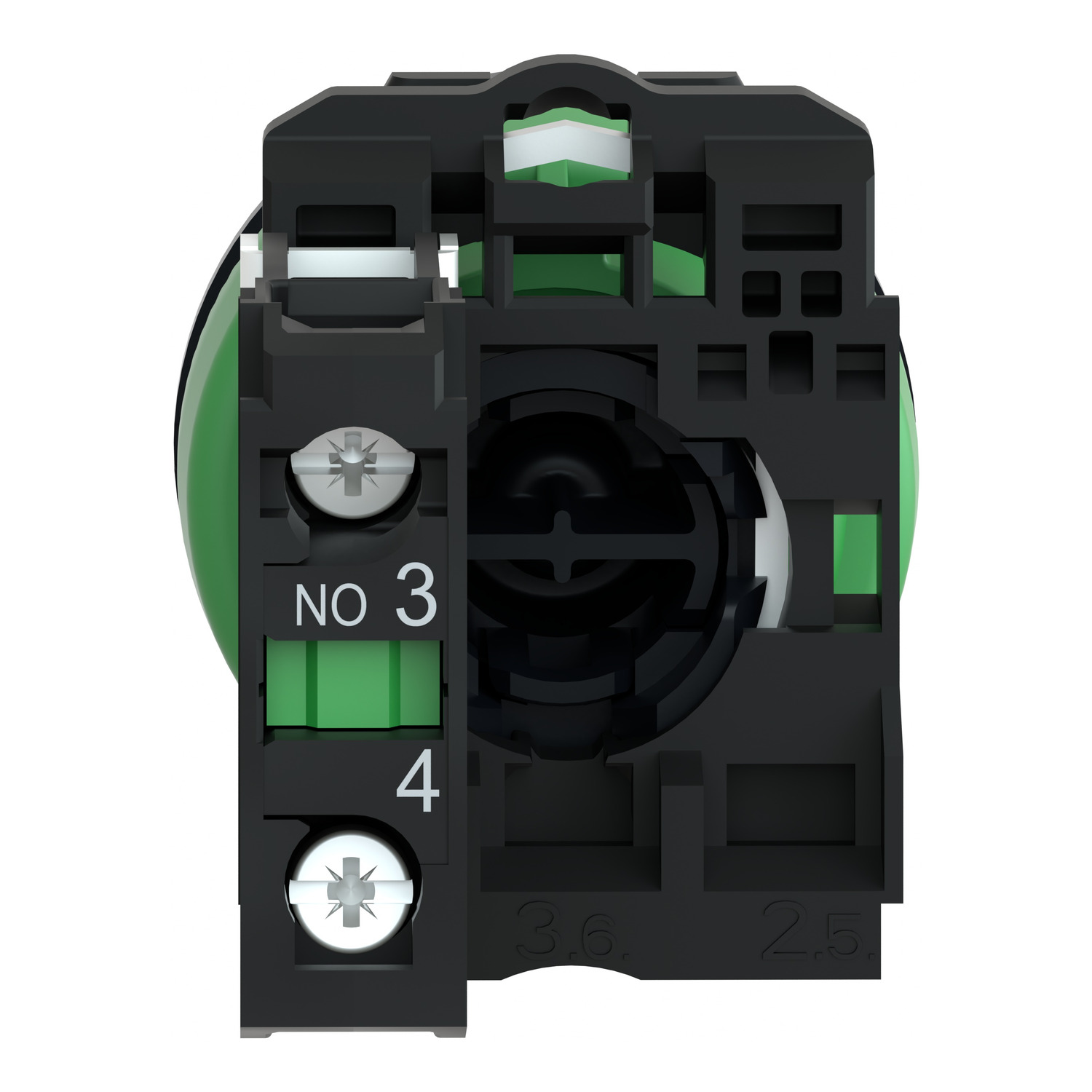

Harmony XB5, Buton antimicrobian, plastic, negru, Ø30, cu revenire, nemarcat, 1 NO
Documente
Specificatii
| Options | |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Black |
| Colour button | Black |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 30.5 mm |
| Width opening | - |
| Height opening | - |
| Electrical | |
| Supply voltage lamp | - |
| Model/type | |
| Type of button | Flat |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Application | |
| Suitable for lighting | No |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Package 1 | |
| volume | 200,552 cm3 |
| weight | 43 g |
| length | 8,8 cm |
| width | 5,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481360458 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 2,005 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 23606481360452 |
