Descriere

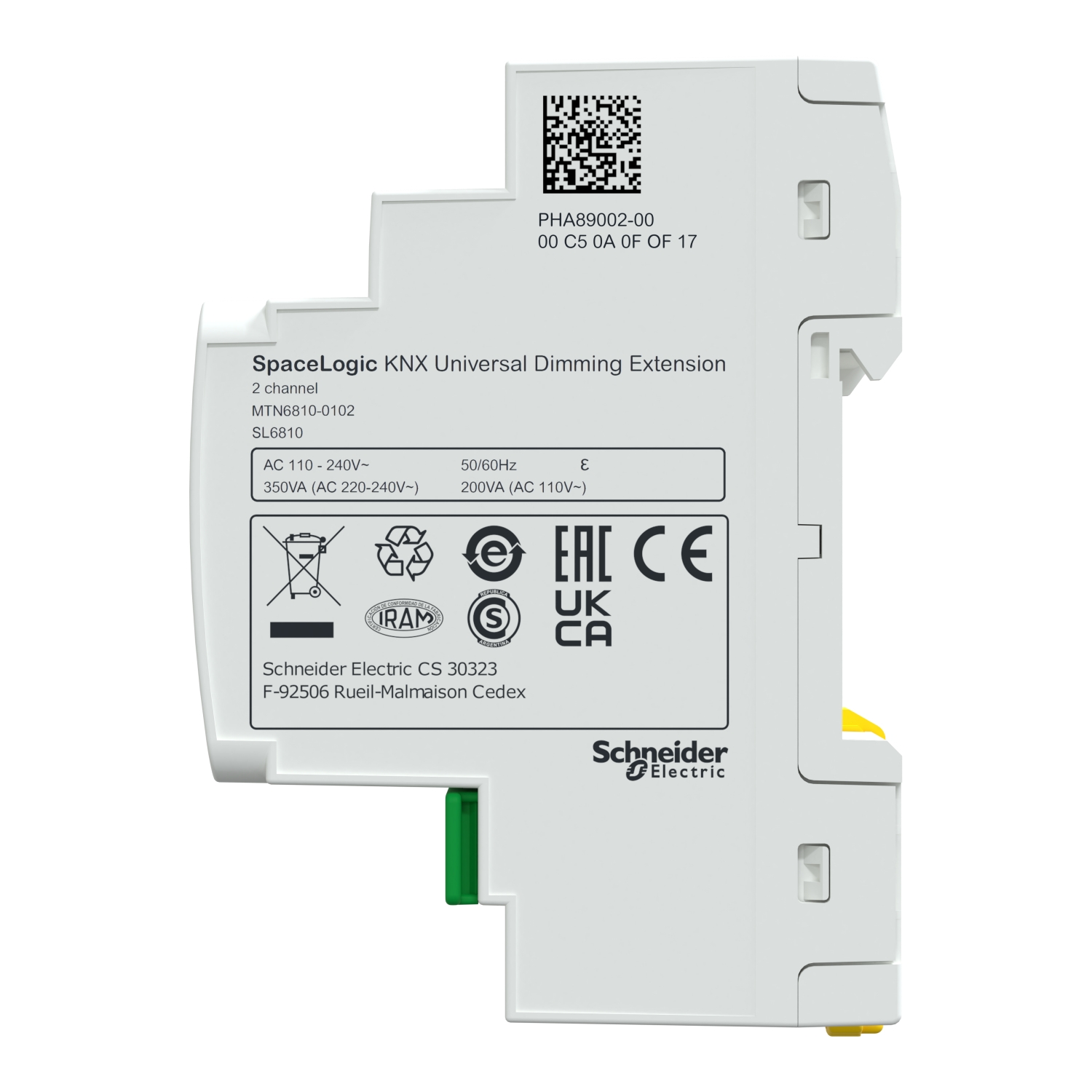

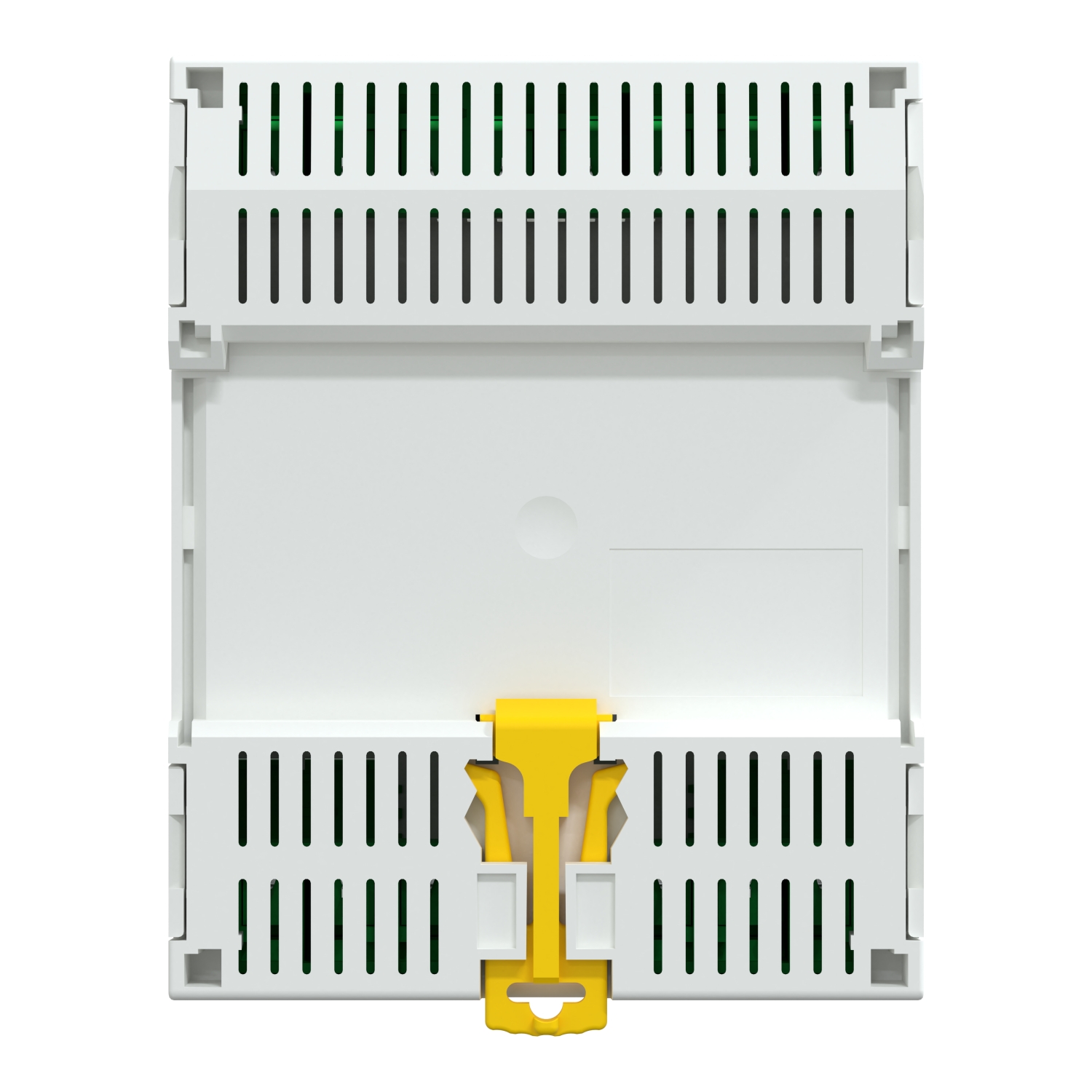

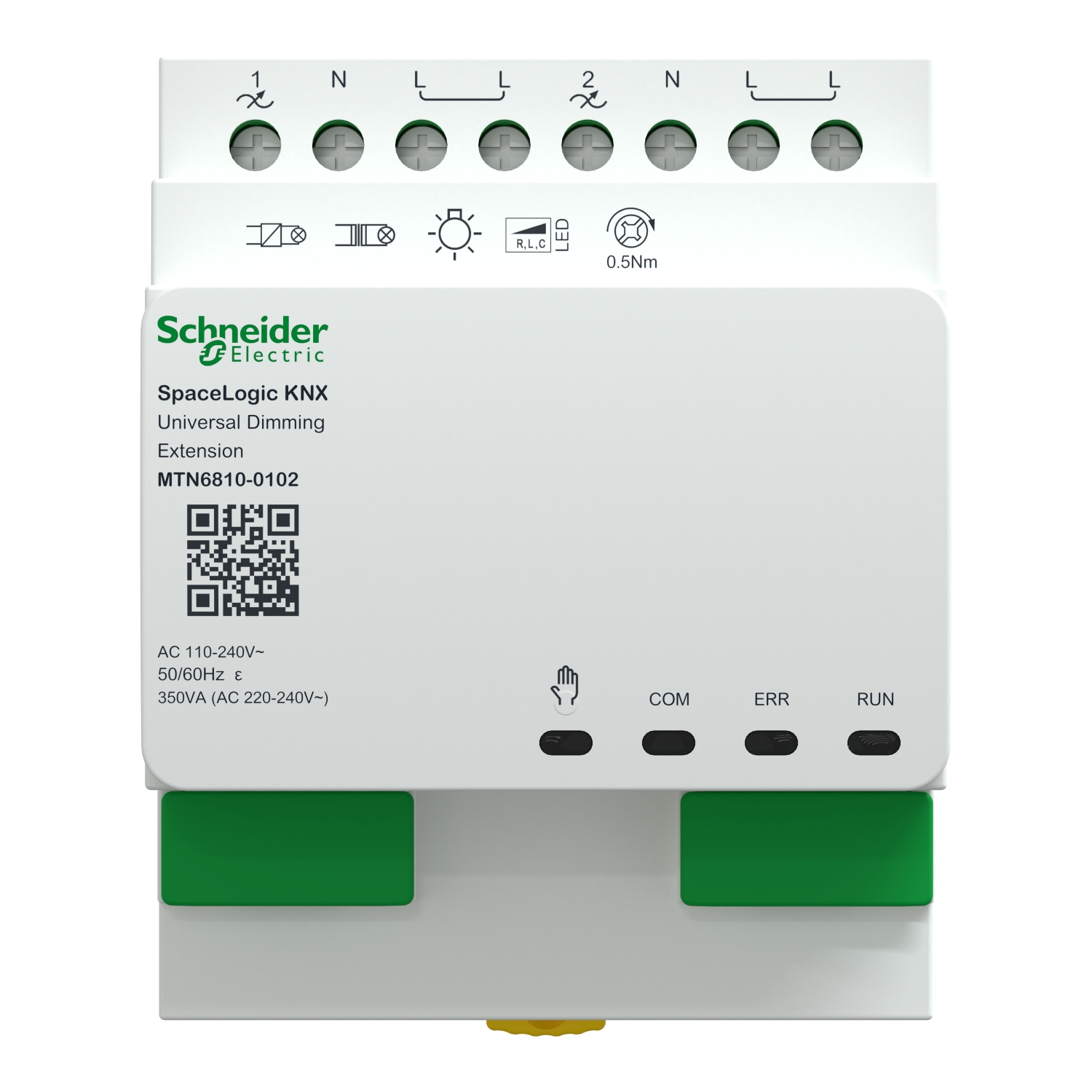

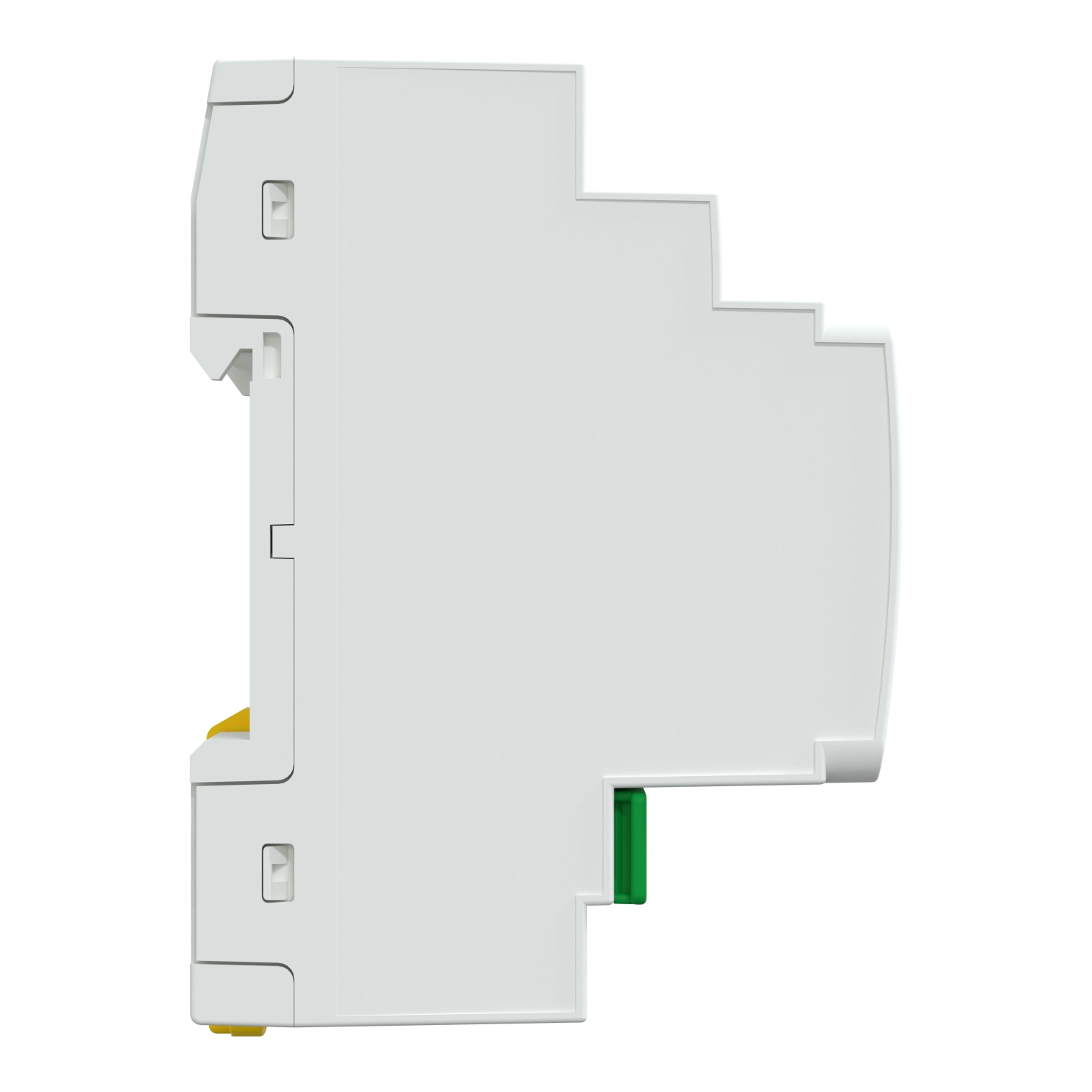

SpaceLogic KNX Extensie dimare, 2 canale
Documente
Specificatii
| Connection | |
| With bus connection | Yes |
| Number of outputs | 2 |
| Substation input | No |
| Other | |
| Frequency | 50 Hz |
| Model/type | |
| Type of load | Universal |
| Model | Dimming actuator |
| With LED indication | Yes |
| Electrical | |
| Max. control current | 1800 mA |
| Voltage | 230 V |
| Max. switching power LED | - |
| Performance | |
| Output power | 2 W |
| Measurements | |
| Width in number of modular spacings | 4 |
| Min. depth of built-in installation box | 66 mm |
| Communication | |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Bus system KNX | Yes |
| Bus system LON | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Setting/control | |
| Local operation/hand operation | Yes |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Options | |
| Parallel-service possible | No |
| Power boost suitable | No |
| Radio frequency bidirectional | No |
| Bus module detachable | Yes |
| Package 1 | |
| volume | 1622,754 cm3 |
| weight | 260 g |
| length | 15,9 cm |
| width | 12,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481816993 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 7,994 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 28 |
| qmin | 28 |
| um | CT |
| gtin | 13606481816990 |
