Descriere

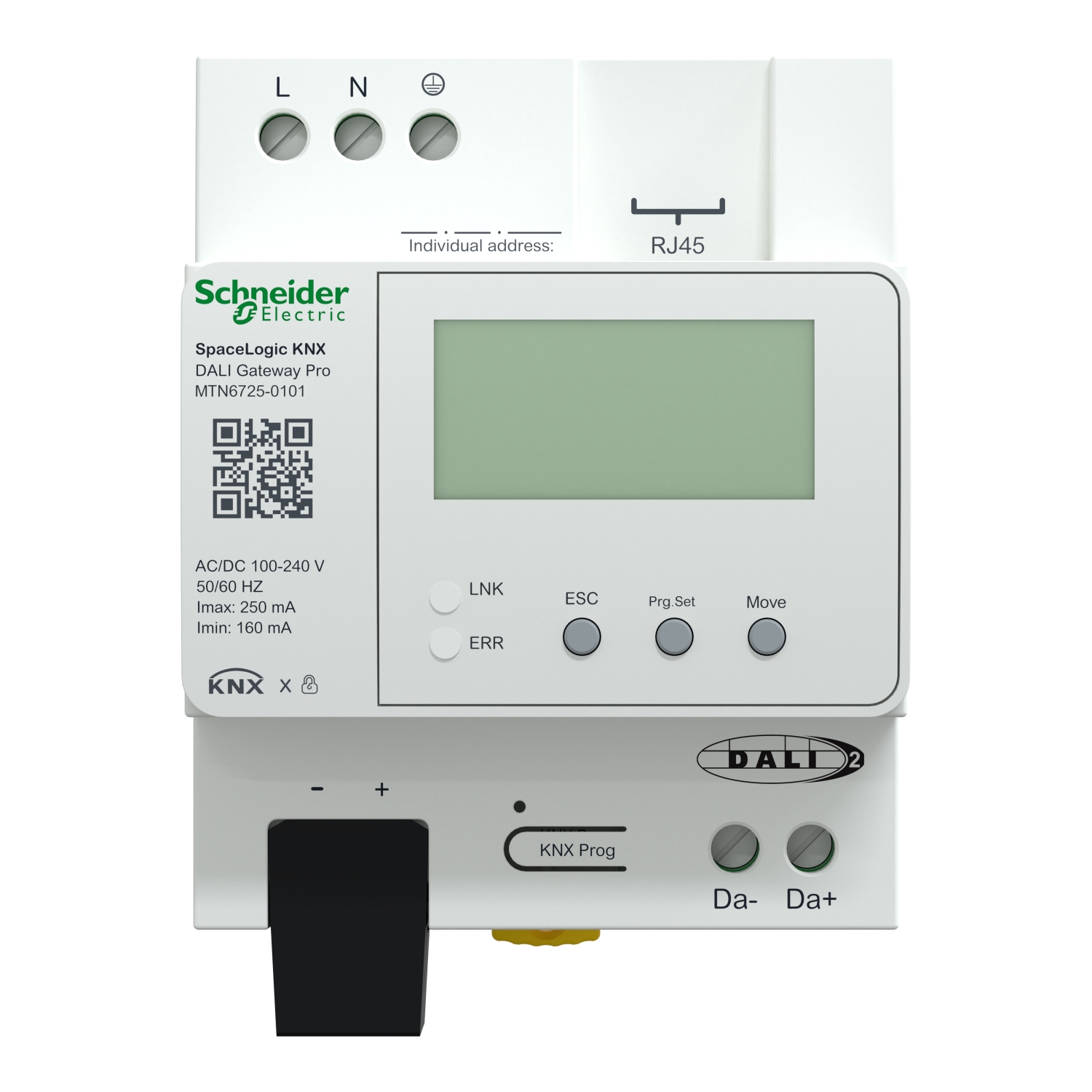

Gateway-ul SpaceLogic KNX DALI Pro controleaza rezistentele electronice de balast cu interfata DALI prin intermediul magistralei de instalare KNX. Gatewa-uly este certificat DALI 2.0 multimaster Dispozitivul Gateway accepta comunicarea pe cadru lung KNX si este compatibil cu telegrama/dispozitivele de securitate KNX si pot fi activate in software-ul ETS 5. Pe langa accesul la dispozitiv in sine (de ex. pentru descarcare), acesta este protejat de securitatea KNX
Documente
Specificatii
| Options | |
| Updateable | Yes |
| Visualization | Yes |
| Radio frequency bidirectional | No |
| Provider dependent | No |
| Communication | |
| Radio interface | No |
| IR interface | No |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Bus system KNX | Yes |
| Bus system LON | No |
| Protocol | Other |
| Model/type | |
| Model | Light system interface/DALI |
| Number of channels | - |
| Web-Server | Yes |
| Demounting protection | Yes |
| With LED indication | Yes |
| Electrical | |
| Operating voltage | 100 V |
| Voltage type | - |
| Power consumption | - |
| Measurements | |
| Width in number of modular spacings | 4 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Max. number of devices per channel | - |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Package 1 | |
| volume | 1570 cm3 |
| weight | 274 g |
| length | 15,7 cm |
| width | 12,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481902856 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 8,603 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 28 |
| qmin | 28 |
| um | CT |
| gtin | 13606481902853 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 47 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 112 |
| qmin | 112 |
| um | PF |
