Descriere

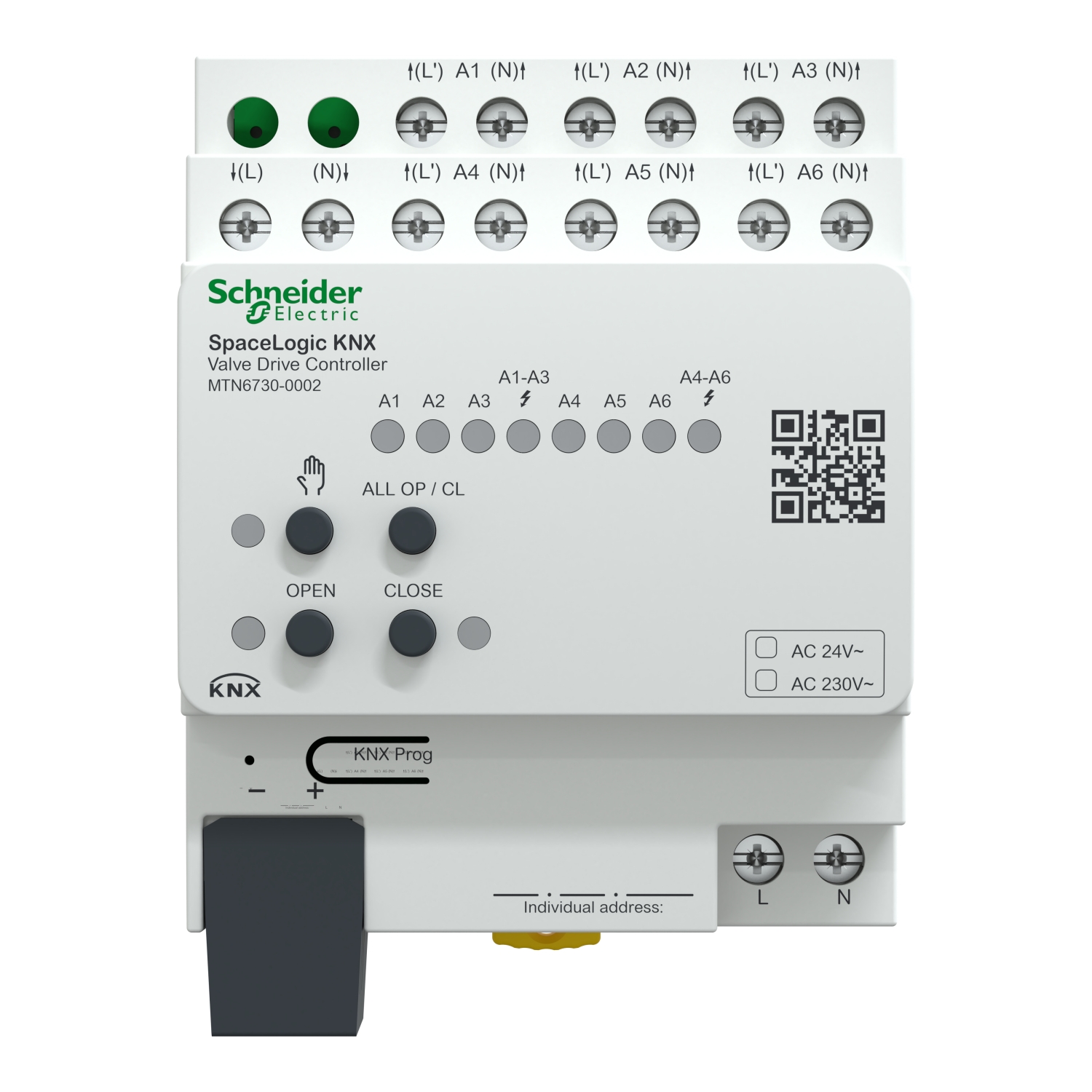

Pentru actionarea vanelor motorizate in sistemele de incalzire/racire prin tavane. Actuatorul are 6 iesiri. Pe fiecare iesire pot fi actionate pana la 4 vane (230 V c.a.) sau 2 vane (24 V c.a.). Pot fi actionate atat vane normal inchis cat si normal deschis.
Documente
Specificatii
Connection | |
With bus connection | Yes |
Number of outputs | 6 |
Number of digital inputs | - |
Options | |
Manual switch | Yes |
Correcting variable switching | Yes |
Radio frequency bidirectional | No |
Bus module detachable | No |
Correcting variable consistent | Yes |
Measurements | |
Width in number of modular spacings | 4 |
Min. depth of built-in installation box | - |
Protection | |
Valve protection function | Yes |
Degree of protection (IP) | IP20 |
Communication | |
Bus system radio frequency | No |
Other bus systems | None |
Bus system KNX-RF (Radio Frequency) | No |
Bus system KNX | Yes |
Bus system LON | No |
Bus system Powernet | No |
Mounting/installation | |

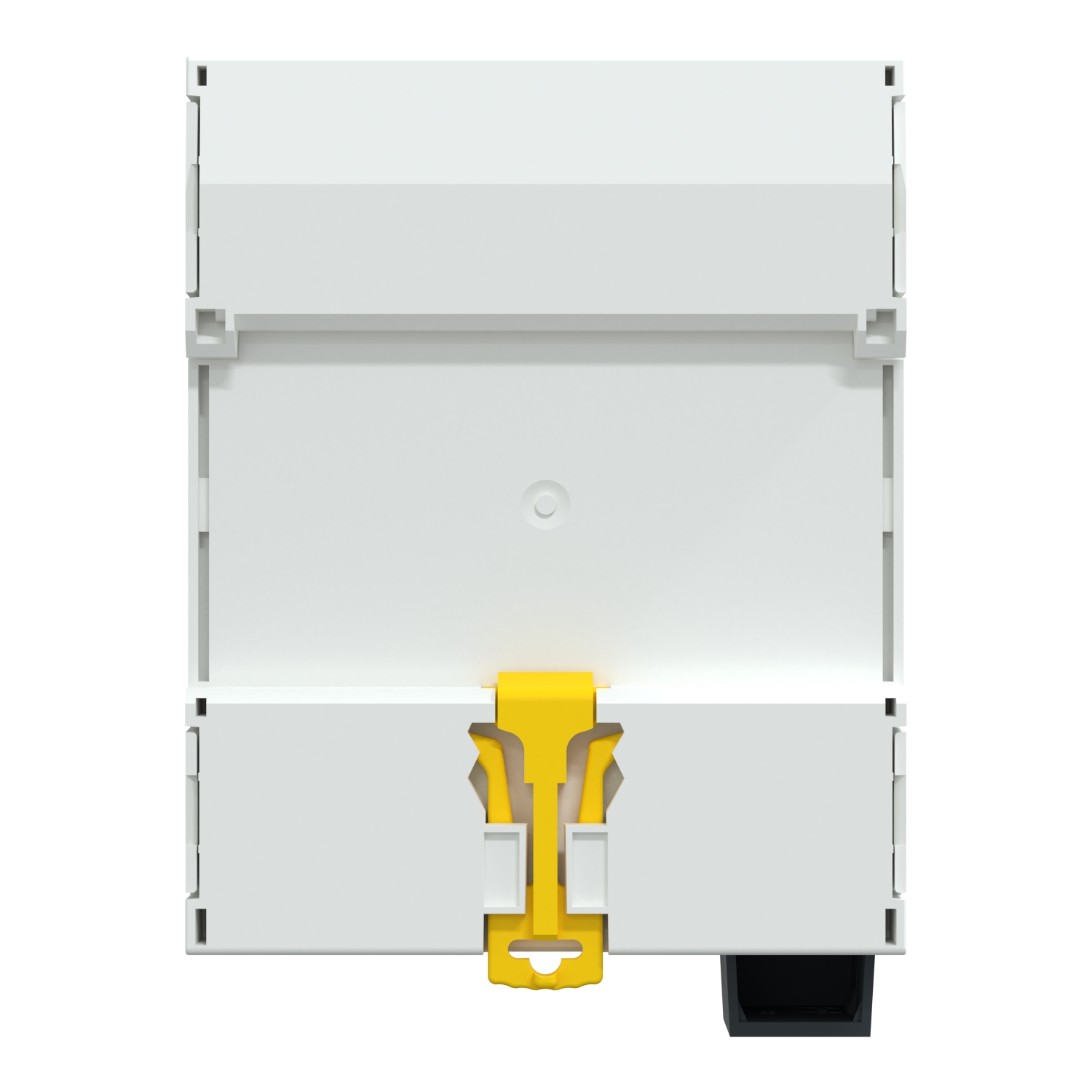

Mounting method | DRA (DIN-rail adaptor) |
Electrical | |
Max. output current | 0.05 A |
Max. switching current (resistive load) | 0.05 A |
Switching voltage | 24 V |
Package 1 | |
volume | 1612,548 cm3 |
weight | 326 g |
length | 15,8 cm |
width | 12,6 cm |
qmax | 1 |
qmin | 1 |
um | C62 |
gtin | 3606481978332 |
Package 2 | |
volume | 72000 cm3 |
weight | 10,082 kg |
length | 60 cm |
width | 40 cm |
qmax | 28 |
qmin | 28 |
um | CT |
gtin | 13606481978339 |
