Descriere

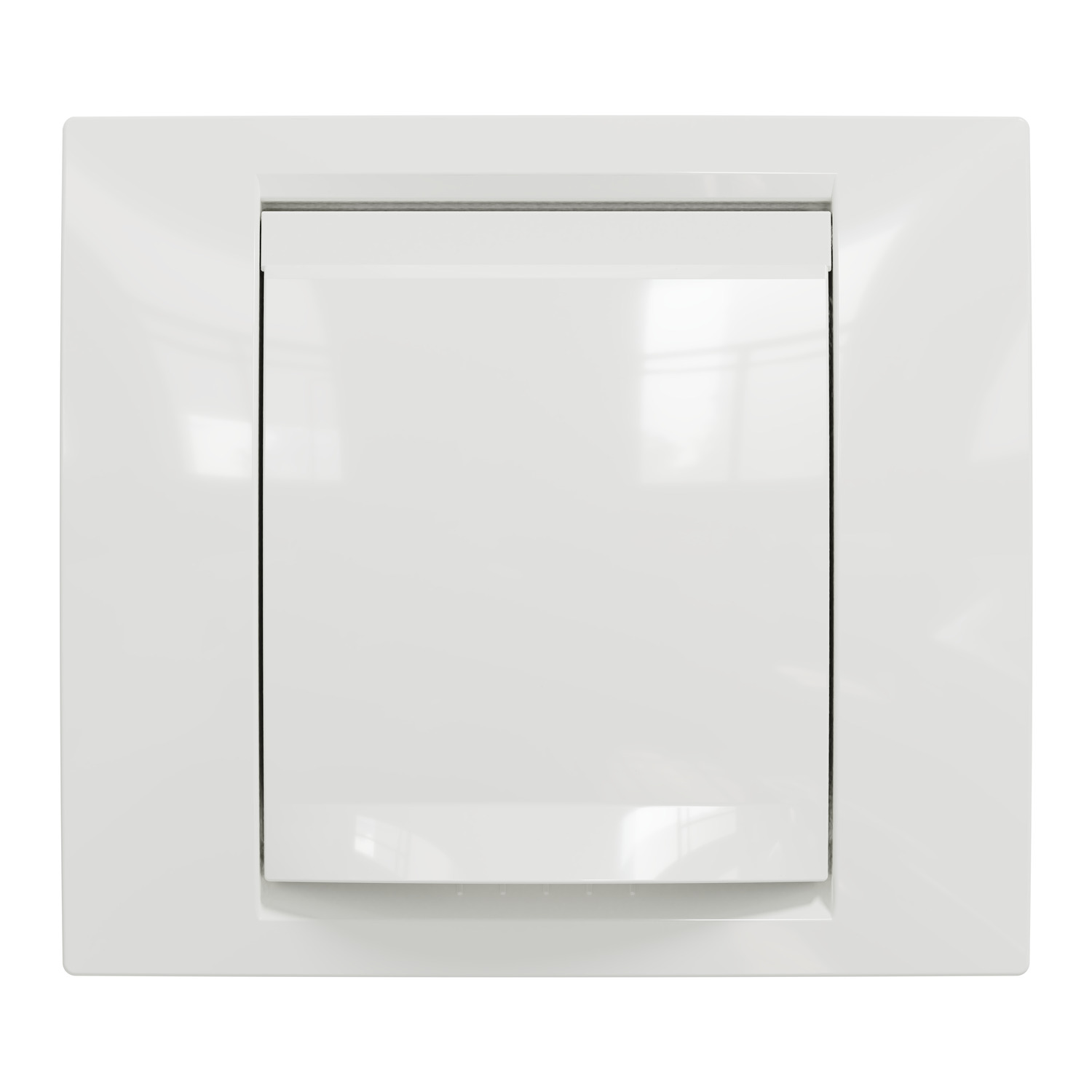

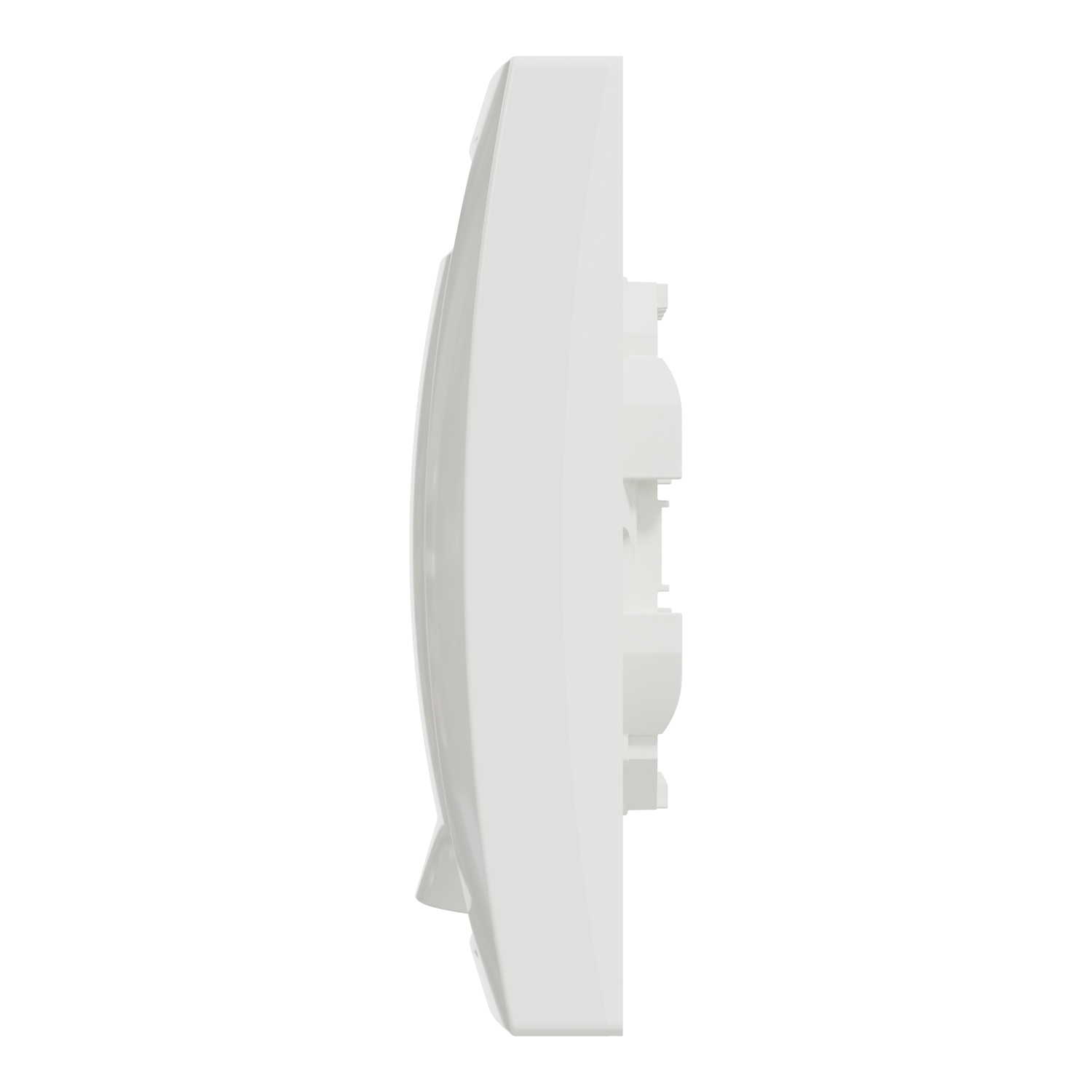

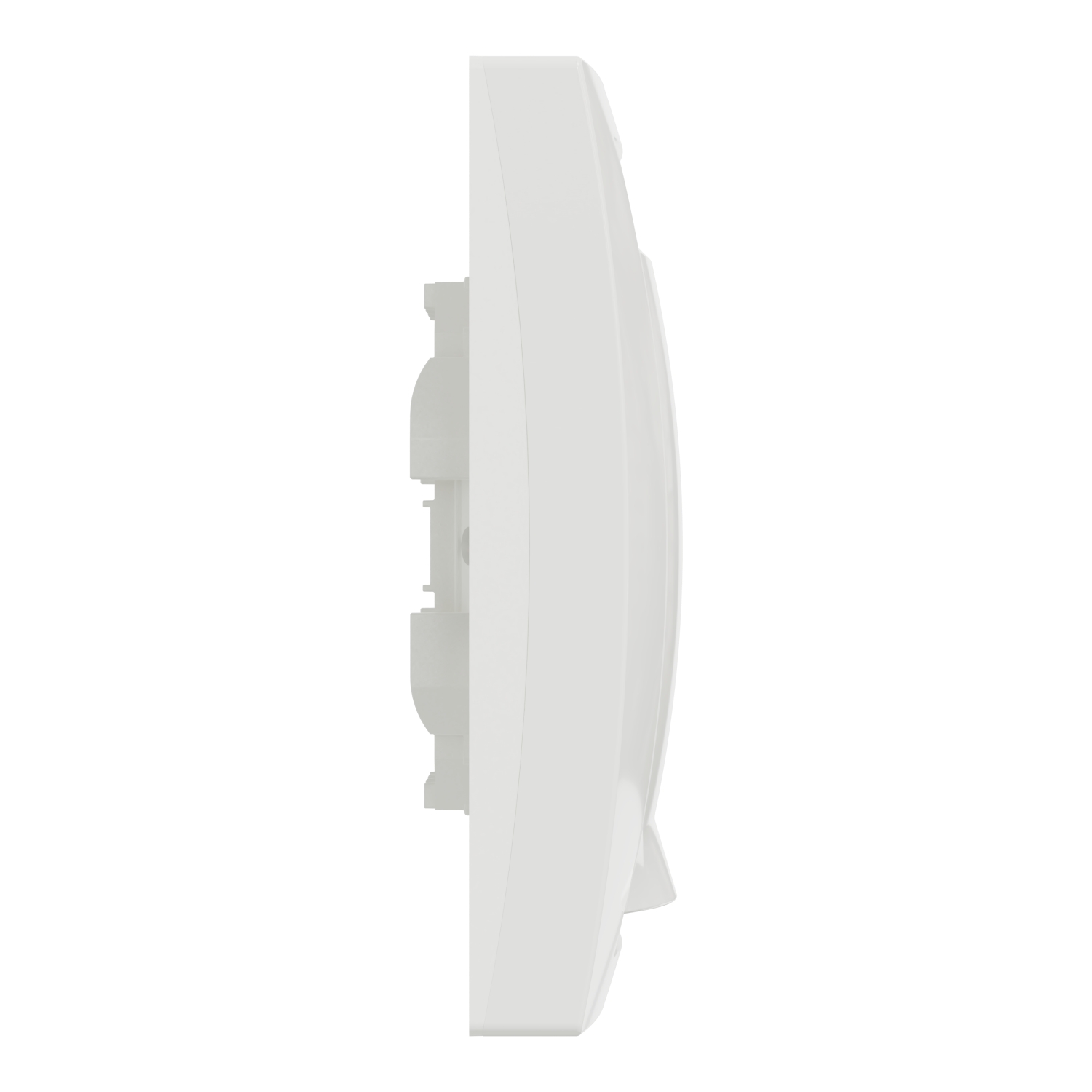

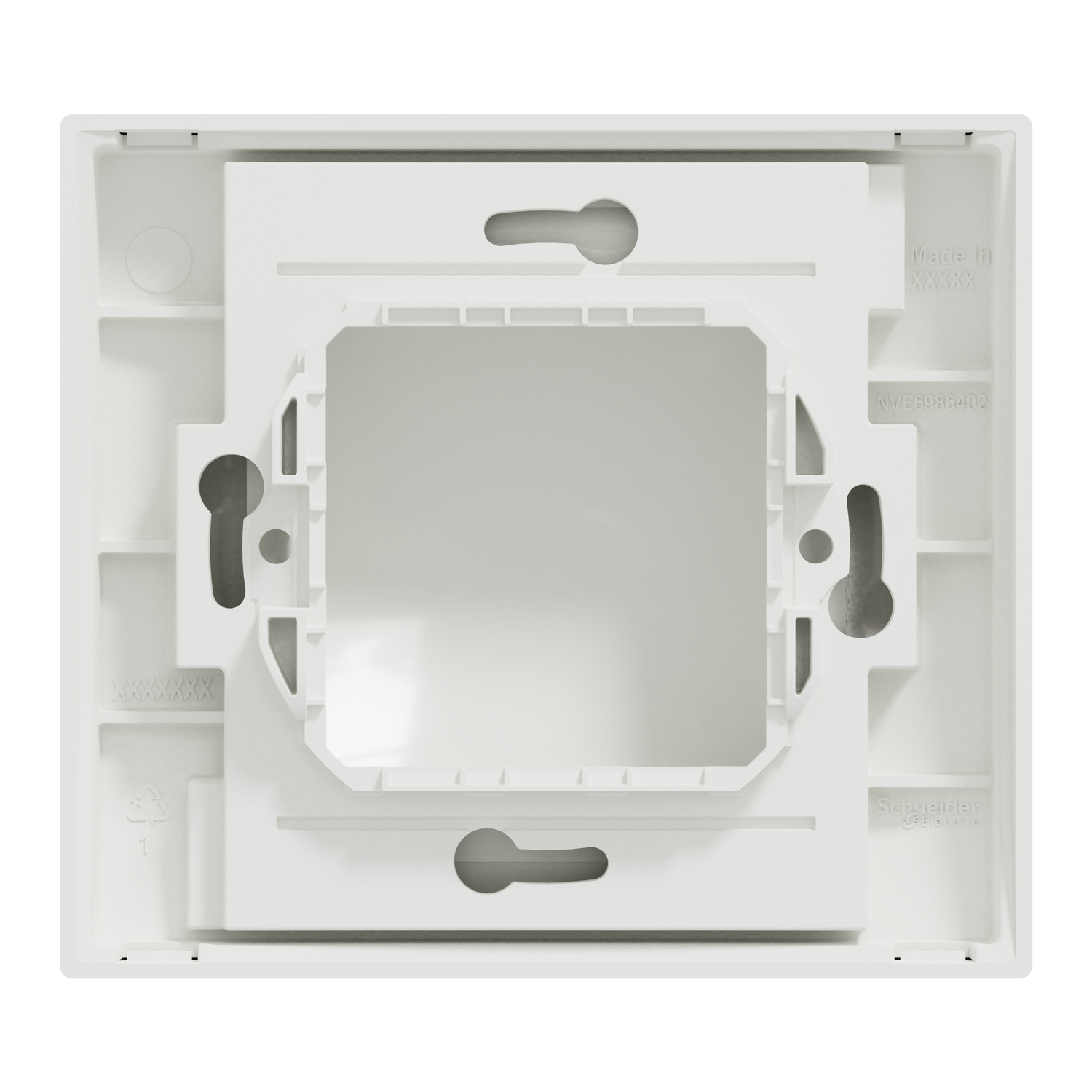

Noua Unica, Rama IP44+suport fixare, 1post, alb
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With hinged lid | Yes |
| Number of device inserts horizontal | 1 |
| Number of device inserts vertical | 0 |
| Number of switch inserts | 2 |
| Number of modules vertical (module system) | 1 |
| Number of modules horizontal (module system) | 2 |
| Number of units | 2 |
| Mounting/installation | |
| Mounting direction | Horizontal |
| With mounting grid | Yes |
| Type of fastening | Screw mounting |
| Suitable for built-in installation | No |
| Flush-mounted installation | Yes |
| Suitable for wall duct | No |
| Application | |
| Suitable for subfloor installation duct box | No |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Measurements | |
| Built-in height | - |
| Height | 90 mm |
| Diameter bore hole (opening) | - |
| Width | 80 mm |
| Built-in width | - |
| Depth | 30 mm |
| Protection | |
| Degree of protection (IP) | IP44 |
| Options | |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Other | |
| Impact strength | IK04 |
| Package 1 | |
| volume | 630 cm3 |
| weight | 54 g |
| length | 15 cm |
| width | 10,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489452025 |
| Package 2 | |
| volume | 2890,625 cm3 |
| weight | 333 g |
| length | 18,5 cm |
| width | 12,5 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606489452022 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 6,77 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 90 |
| qmin | 90 |
| um | CT |
| gtin | 43606489452023 |
