Descriere

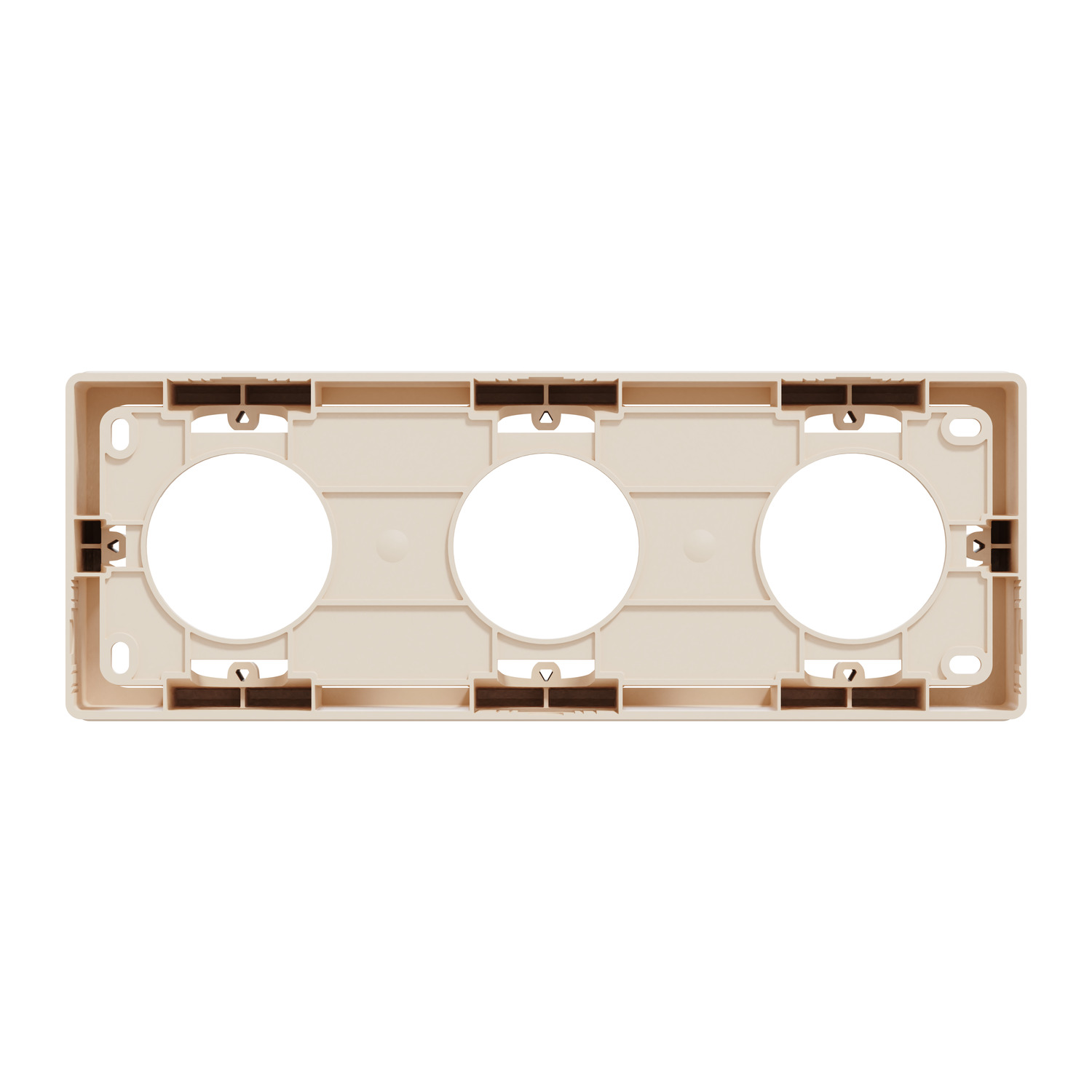

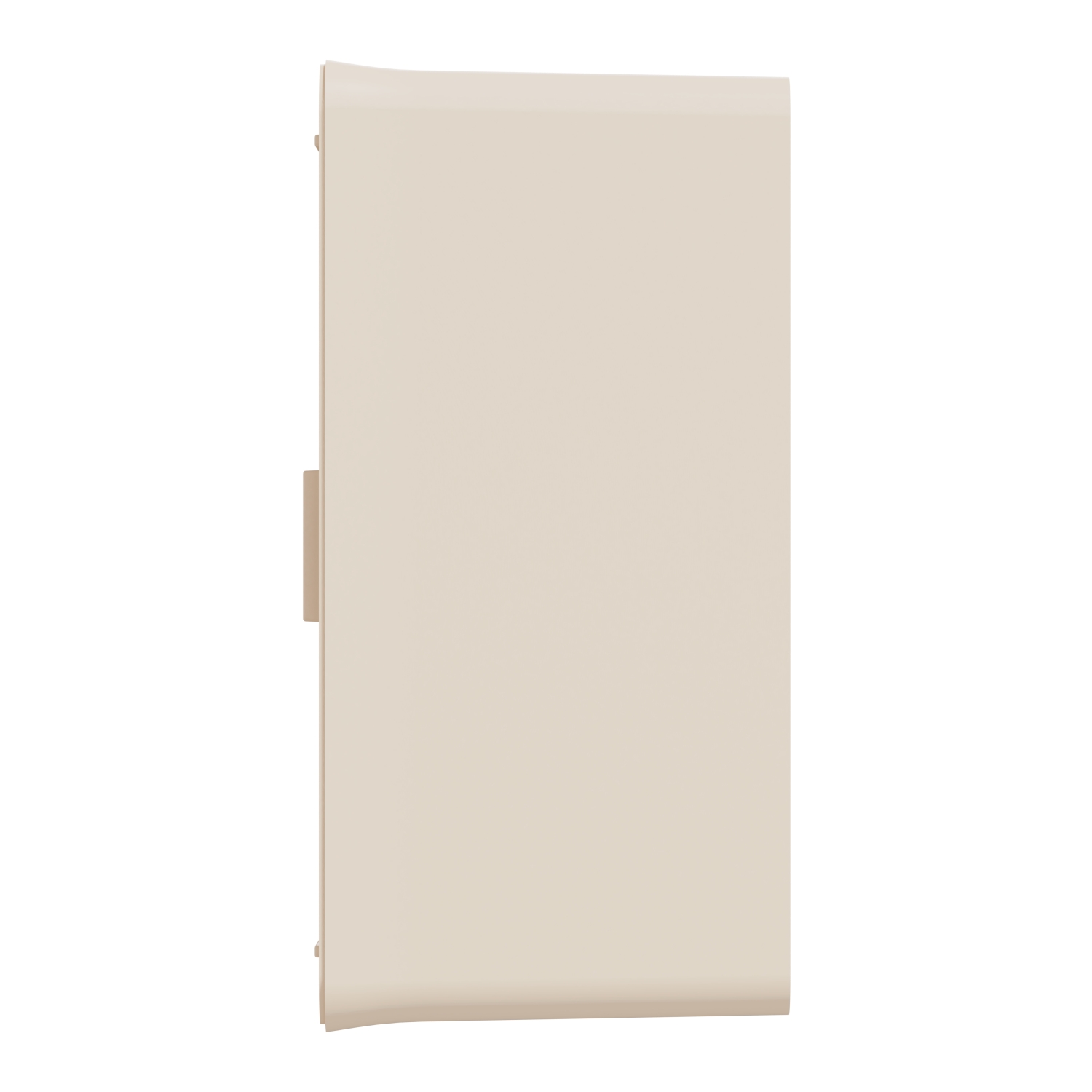

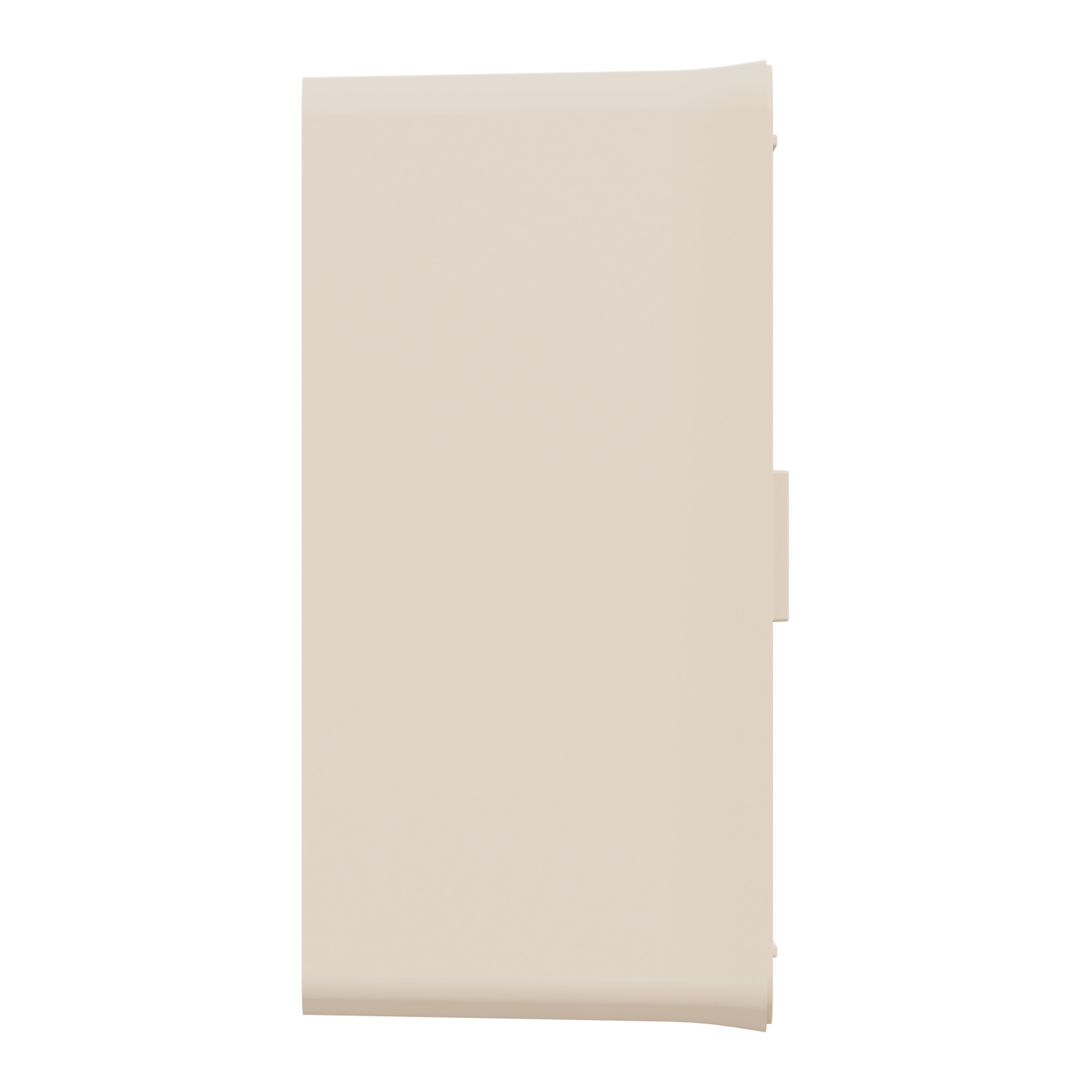

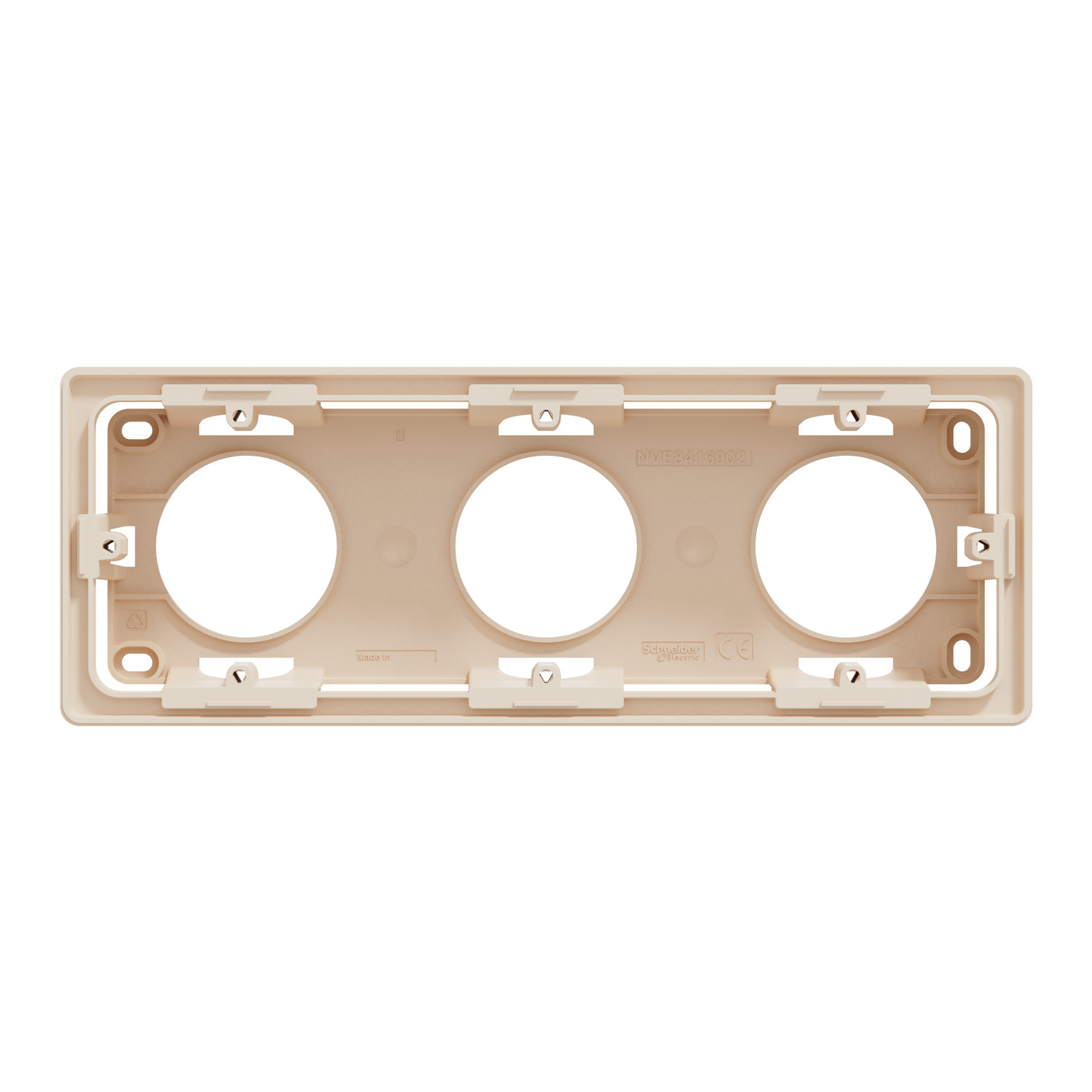

Noua Unica, Doza montaj PT 3post Unica Studio, bej
Documente
Specificatii
Colour | |
Colour | Beige |
RAL-number (similar) | 1013 |
Transparent | No |
Material | |
Surface protection | Untreated |
Surface finishing | Glossy |
Material | Plastic |
Halogen free | Yes |
Material quality | Thermoplastic |
Mounting/installation | |
Mounting direction | Horizontal and vertical |
Cross-trunking mounting | Yes |
Measurements | |
Device width | 225 mm |
Device height | 83 mm |
Device depth | 40 mm |
Model/type | |
With cover frame | No |
With duct entry | Yes |
Assembly arrangement | Surface mounted box |
With cable entry | Yes |
Number of modules (module system) | 6 |
Shape | Rectangular |
With screw gland entry | No |
Number of units | 6 |
Protection | |
Shock resistant | No |
Degree of protection (IP) | IP20 |
Application | |
Suitable for modular domestic switching devices | Yes |
Package 1 | |
volume | 747 cm3 |
weight | 117 g |
length | 4 cm |
width | 22,5 cm |
qmax | 1 |
qmin | 1 |
um | C62 |
gtin | 3606489458386 |
Package 2 | |
volume | 3292,8 cm3 |
weight | 352 g |
length | 24,5 cm |
width | 12 cm |
qmax | 2 |
qmin | 2 |
um | BX |
gtin | 13606489458383 |
Package 3 | |
volume | 72000 cm3 |
weight | 5,93 kg |
length | 60 cm |
width | 40 cm |
qmax | 30 |
qmin | 30 |
um | CT |
gtin | 43606489458384 |
Package 4 | |
weight | 31,72 kg |
length | 60 cm |
width | 80 cm |
qmax | 120 |
qmin | 120 |
um | PF |
