Descriere

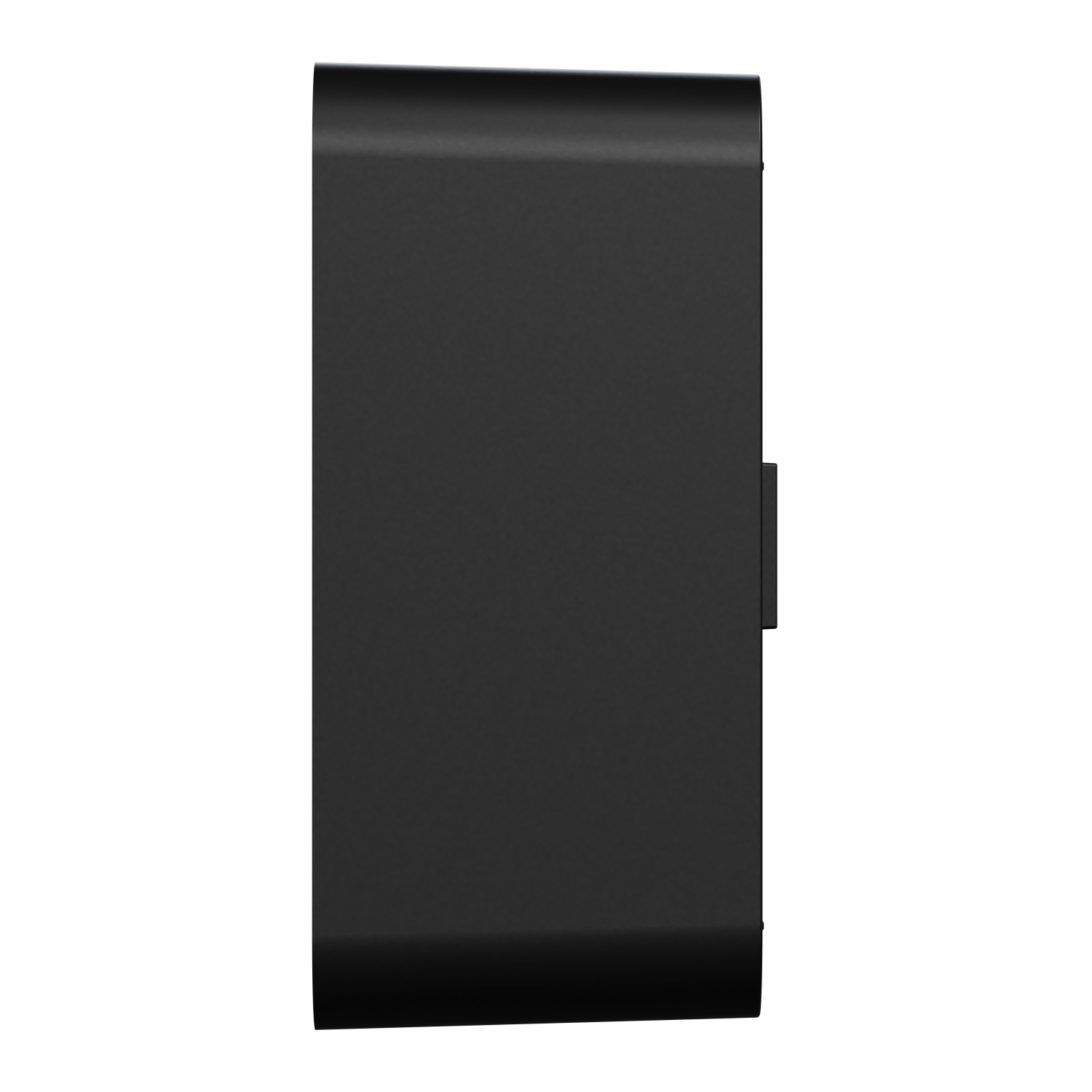

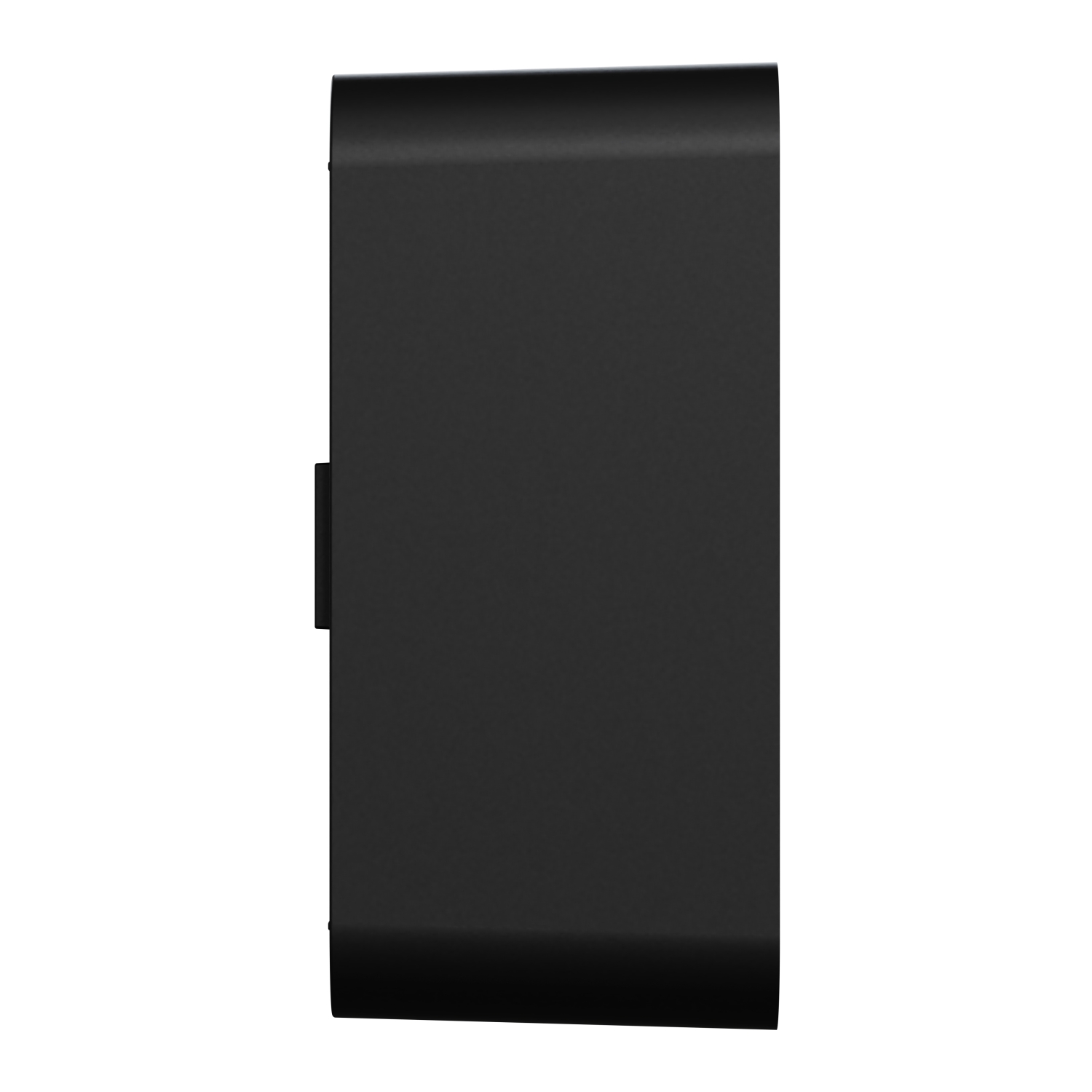

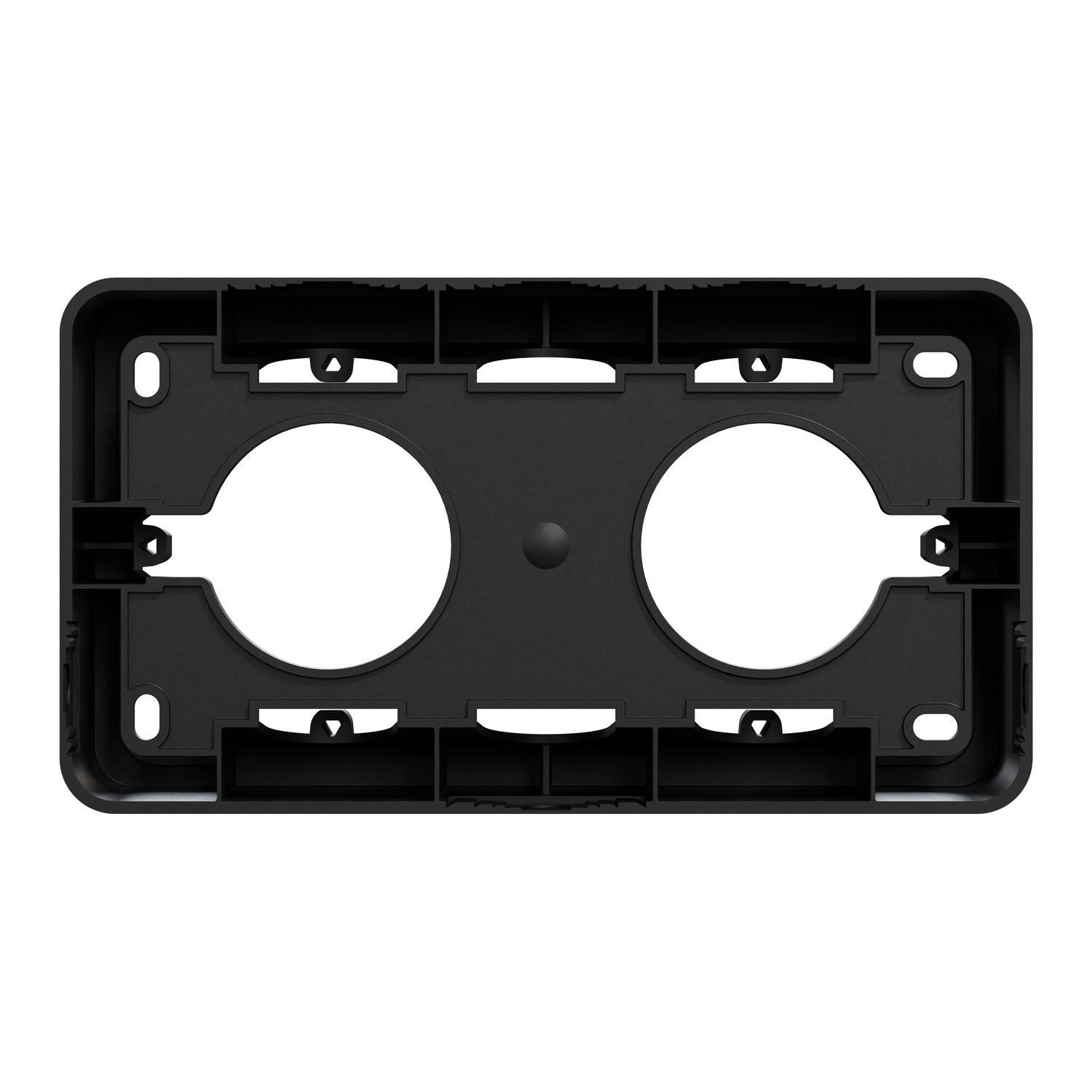

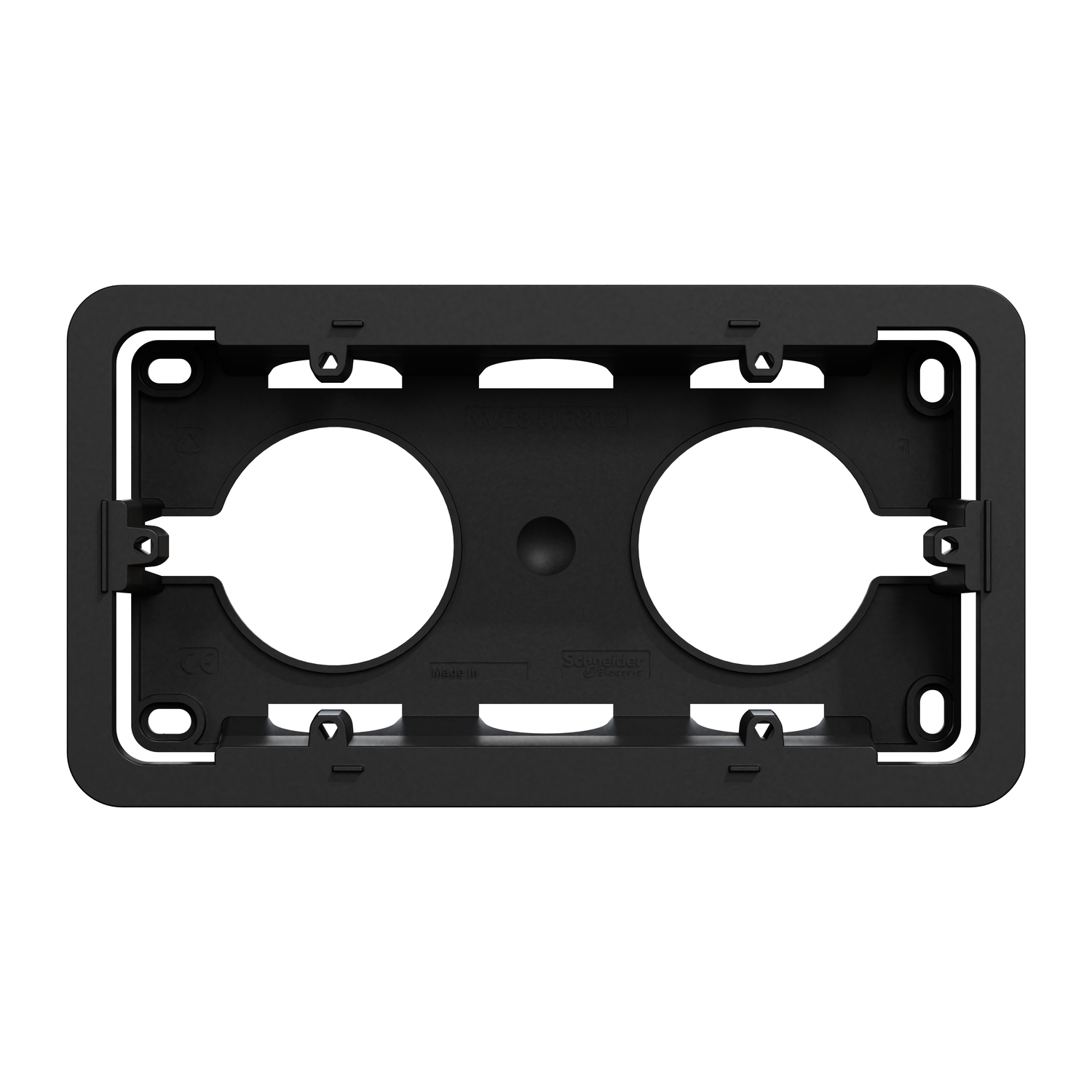

Noua Unica, Doza montaj PT 2post Unica Pro, antracit
Documente
Specificatii
| Material | |
| Surface protection | Decor |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Colour | |
| Colour | Anthracite |
| RAL-number (similar) | 7021 |
| Transparent | No |
| Mounting/installation | |
| Mounting direction | Horizontal and vertical |
| Cross-trunking mounting | Yes |
| Measurements | |
| Device width | 158 mm |
| Device height | 87 mm |
| Device depth | 40 mm |
| Model/type | |
| With cover frame | No |
| With duct entry | Yes |
| Assembly arrangement | Surface mounted box |
| With cable entry | Yes |
| Number of modules (module system) | 4 |
| With screw gland entry | No |
| Shape | Rectangular |
| Number of units | 4 |
| Protection | |
| Shock resistant | No |
| Degree of protection (IP) | IP20 |
| Application | |
| Suitable for modular domestic switching devices | Yes |
| Package 1 | |
| volume | 695,2 cm3 |
| weight | 81 g |
| length | 15,8 cm |
| width | 8,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481910233 |
| Package 2 | |
| volume | 5687,5 cm3 |
| weight | 545 g |
| length | 26 cm |
| width | 17,5 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606481910230 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 5,025 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 23606481910237 |
| Package 4 | |
| weight | 32 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 160 |
| qmin | 160 |
| um | PF |
