Descriere

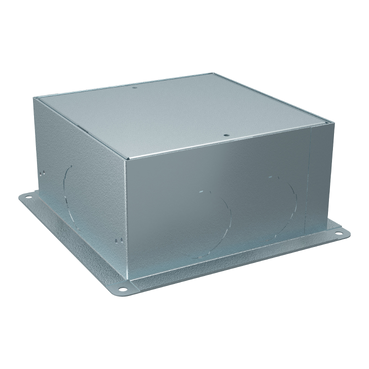

Unica system+, Doza pardoseala M, metal, IP20, 8 module
Documente
Specificatii
| Model/type | |
| Number of appliances to build in | 4 |
| Options | |
| Bottom plate | No |
| Decoupling possibility cover from base unit | Yes |
| Measurements | |
| Min. height finishing layer | 70 mm |
| Nominal dimension | 200 mm |
| Levelling range | 70 mm |
| Duct height | 28 mm |
| Duct width | 150 mm |
| Mounting/installation | |
| Built-in opening for floor column | No |
| Built-in opening for built-in unit | Square |
| Application | |
| Suitable for subfloor duct overhead closed | No |
| Suitable for subfloor duct countersunk (closed) | Yes |
| Suitable for placing of sealing | No |
| Material | |
| Material side wall | Metal fabric |
| Package 1 | |
| volume | 4450,5 cm3 |
| weight | 2,158 kg |
| length | 23 cm |
| width | 21,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489818951 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 9,079 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 13606489818958 |
