Descriere

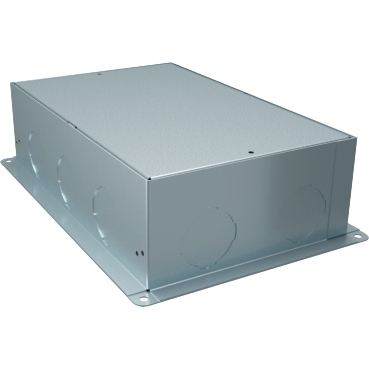

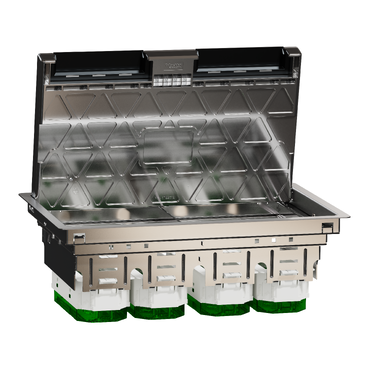

Unica system+, Doza pardoseala XL,metal, IP20, 24 module
Documente
Specificatii
| Model/type | |
| Number of appliances to build in | 12 |
| Options | |
| Bottom plate | No |
| Decoupling possibility cover from base unit | Yes |
| Measurements | |
| Nominal dimension | 224 mm |
| Min. height finishing layer | 70 mm |
| Levelling range | 70 mm |
| Duct height | 28 mm |
| Duct width | 150 mm |
| Mounting/installation | |
| Built-in opening for floor column | No |
| Built-in opening for built-in unit | Rectangular |
| Application | |
| Suitable for subfloor duct overhead closed | No |
| Suitable for placing of sealing | No |
| Suitable for subfloor duct countersunk (closed) | Yes |
| Material | |
| Material side wall | Metal fabric |
| Package 1 | |
| volume | 8037 cm3 |
| weight | 4,048 kg |
| length | 38 cm |
| width | 23,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489819019 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,521 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 13606489819016 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 115,344 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 24 |
| qmin | 24 |
| um | PF |
