Descriere

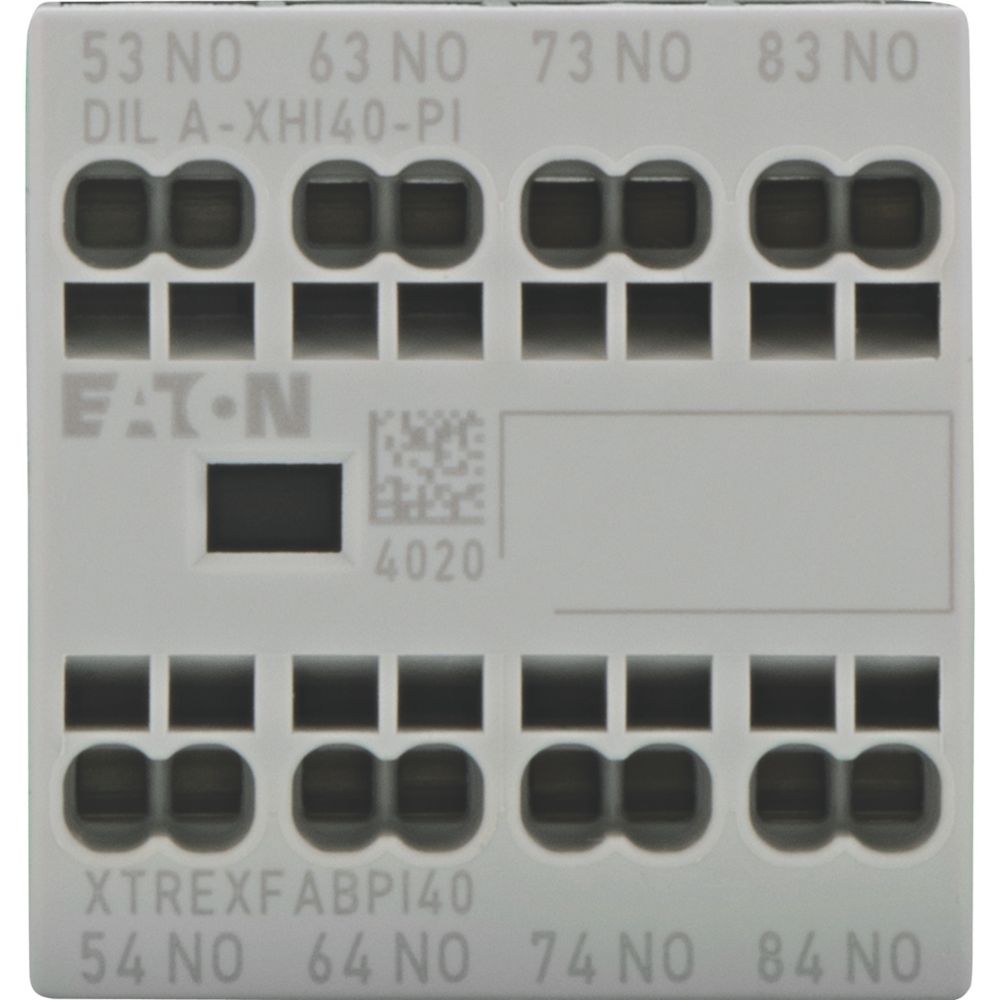

Auxiliary contact module, with interlocked opposing contacts, Function: for standard applications, 4 pole, Connection technique: Push in terminals, Ith 16 A, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 4 N/O, Mounting type: Front fixing, For use with: DILA…-PI, DILM7…-PI, DILM9…-PI, DILM12…-PI, DILM15…-PI, DILM17…-PI, DILM25…-PI, DILM32…-PI, DILM38…-PI, DILMP20…-PI, DILMP32…-PI, DILMP45…-PI, DILM8…-PI, DILM11…-PI, DILM14…-PI, Type: Front mounting auxiliary contact
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 4 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Clip-on |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 4 |
| Mounting/installation | |
| Mounting method | Front fastening |
