Descriere

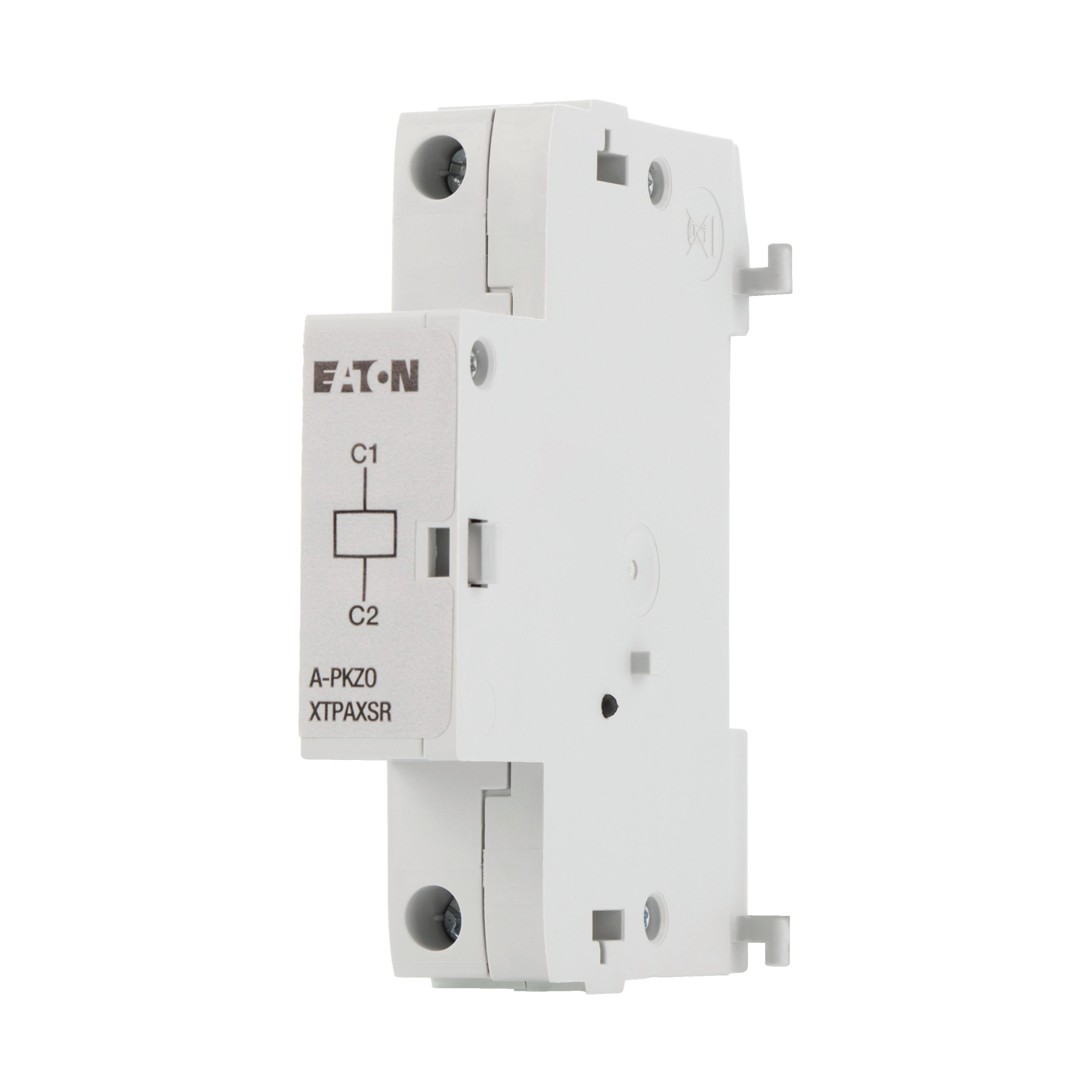

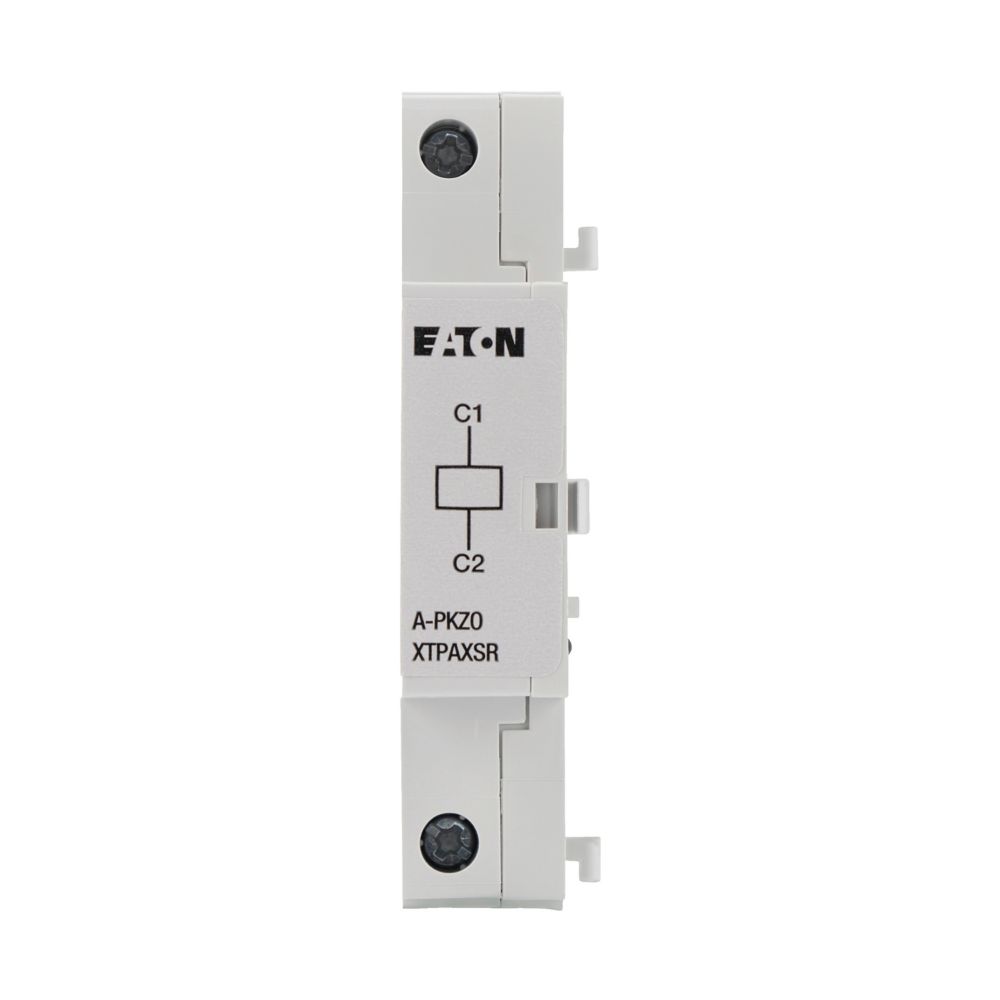

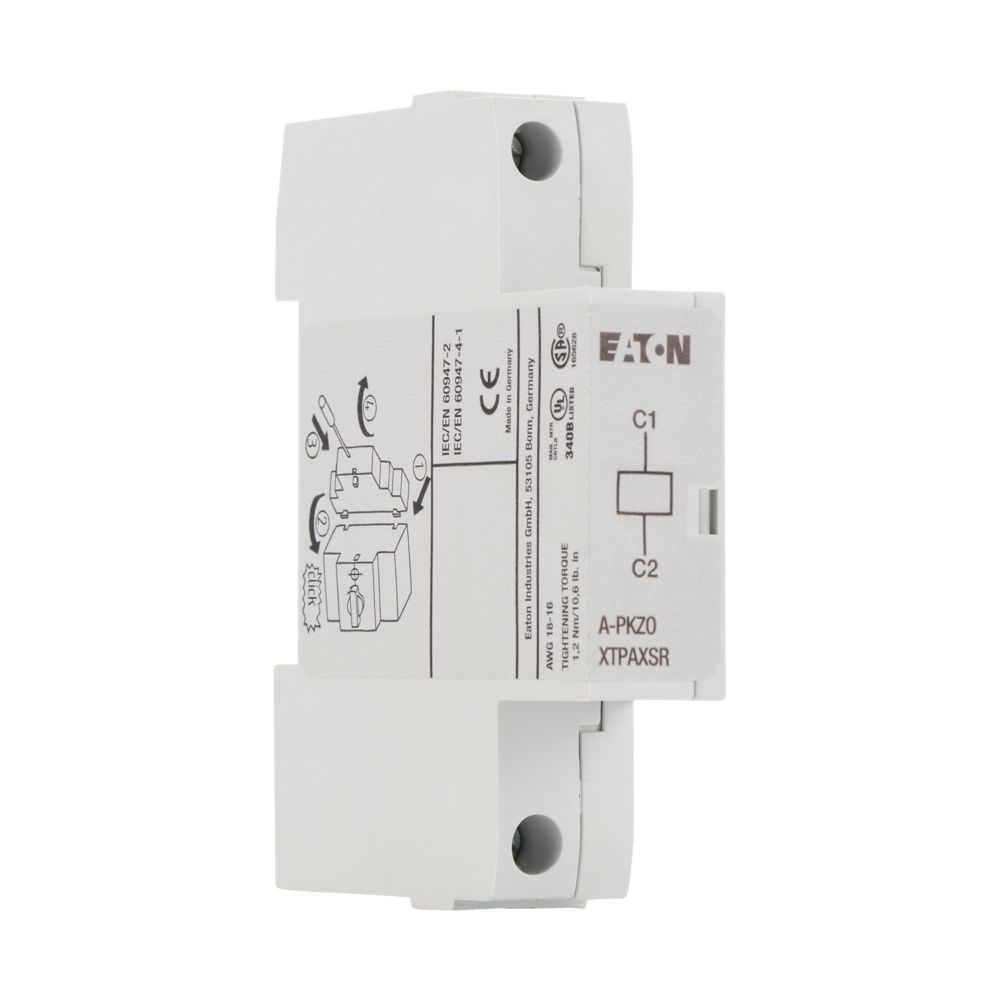

Shunt release with screw terminals, for circuit-breaker PKZ(M)0 size, non-standard voltage
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 24 |
| Rated control supply voltage AC 60 Hz | 0 |
| Rated control supply voltage DC | 0 |
| Voltage type for actuating | AC |
| End value adjustment range undelayed short-circuit release | 0 |
| Power consumption | 0.5 |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 0 |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
| Application | |
| Suitable for power circuit breaker | No |
| Suitable for off-load switch | No |
| Suitable for motor safety switch | Yes |
| Suitable for overload relay | No |
