Descriere

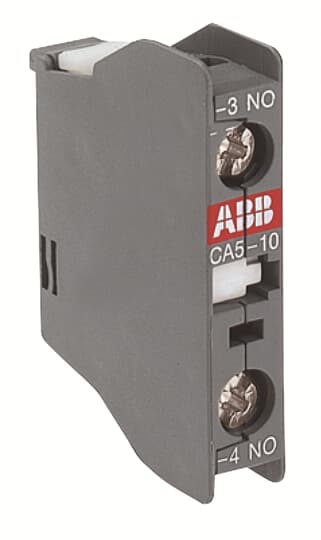

CA5-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Clip-on |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 4 A |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| weight | 0,143 |
| length | 0,1295 |
| width | 0,065 |
| deph | 0,0095 |
| qmax | 10 |
| qmin | 10 |
| um | C62 |
| gtin | 3471522121004 |
