Descriere

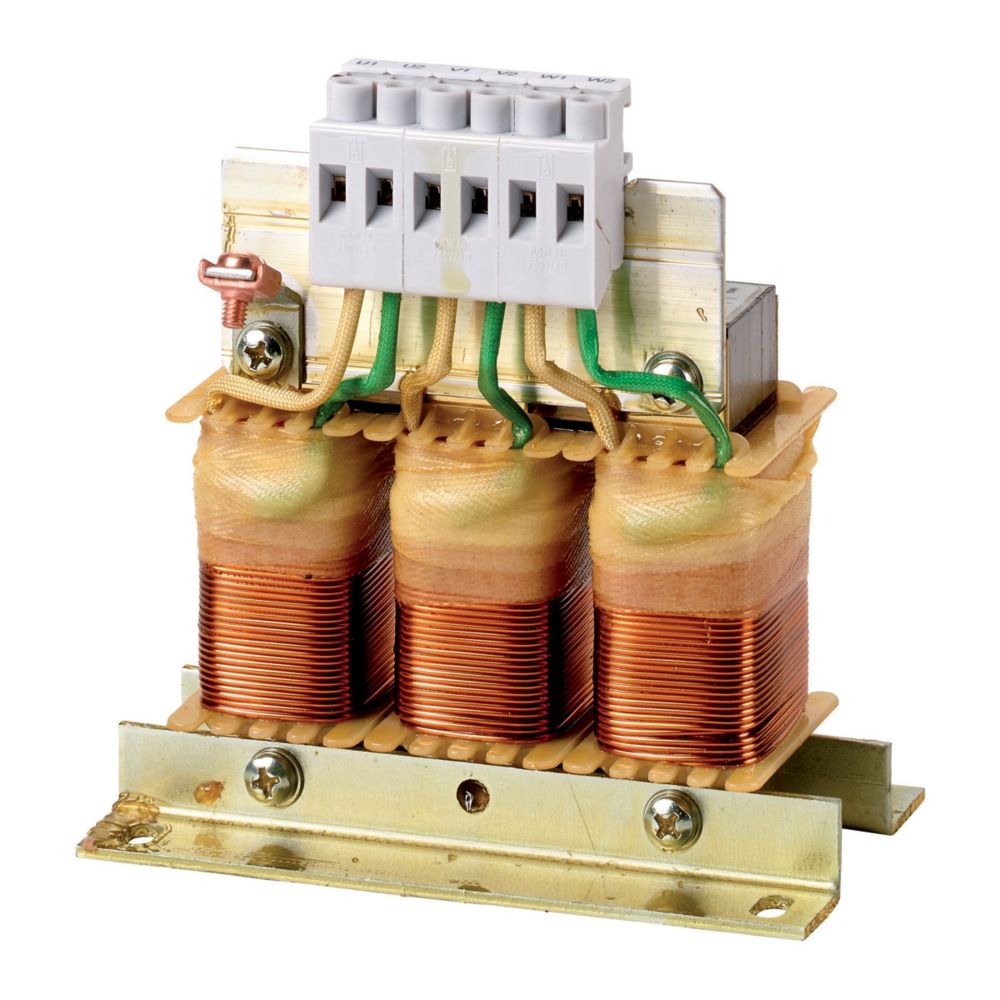

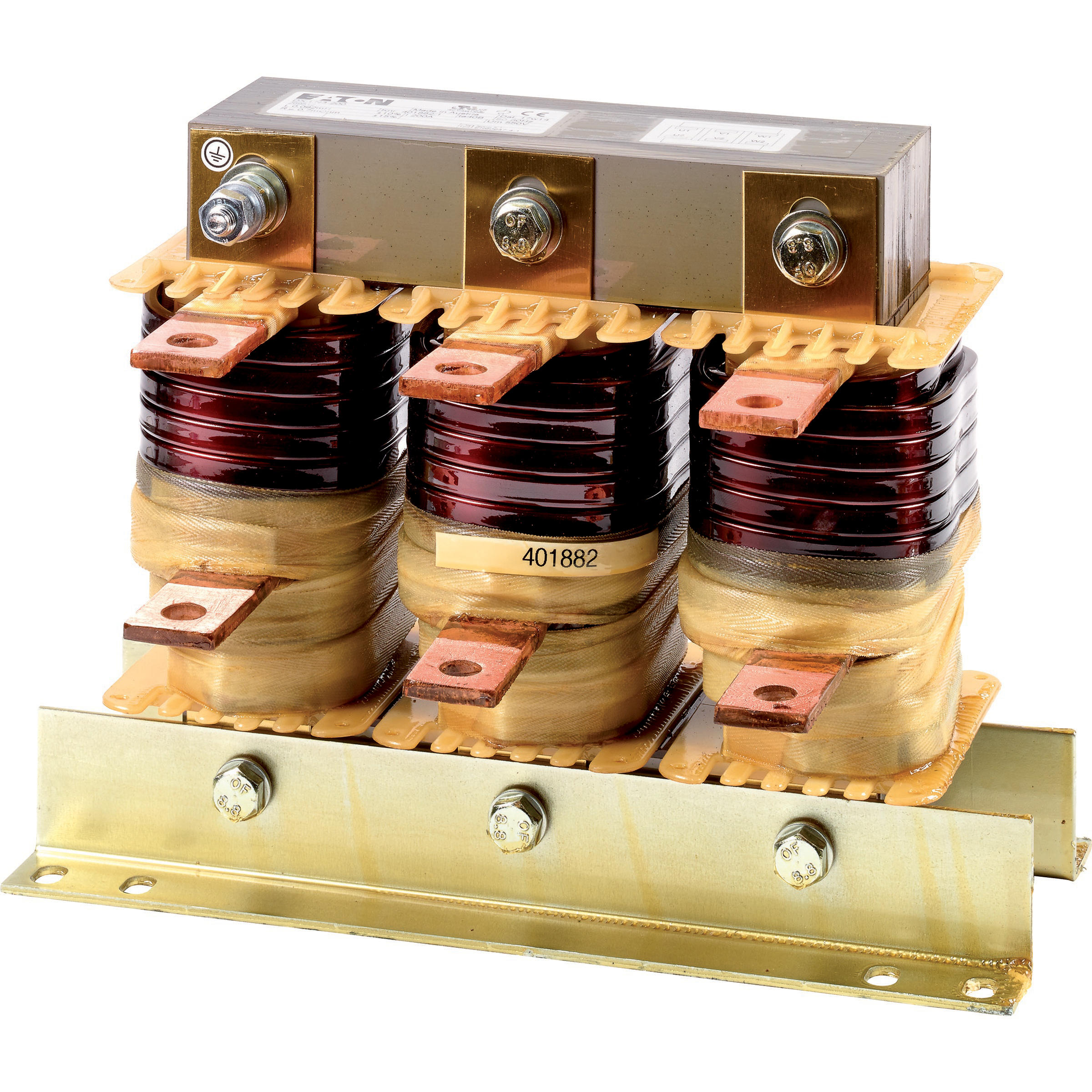

Three-phase motor choke max. permissible mains voltage 750V AC rated operational current 150A reactor 0.35mH
Specificatii
| Application | |
| Suitable as interference suppression reactance coil | No |
| Suitable as net reactance coil | No |
| Suitable as commutation reactance coil | No |
| Suitable as ripple filter choke | Yes |
| Suitable as output reactance coil | No |
| Model/type | |
| Number of poles, primary side | 3 |
| Other | |
| Rated clock frequency | 0 |
| Rated operating frequency | 0 |
| Rated inductance | 0.35 |
| Resonance frequency | 0 |
| Electrical | |
| Max. rated operation voltage Ue | 750 |
| Rated current AC | 150 |
| Max. rated current (Ith) at rated voltage DC | 150 |
| Relative short circuit voltage | 0 |
| Protection | |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
