Descriere

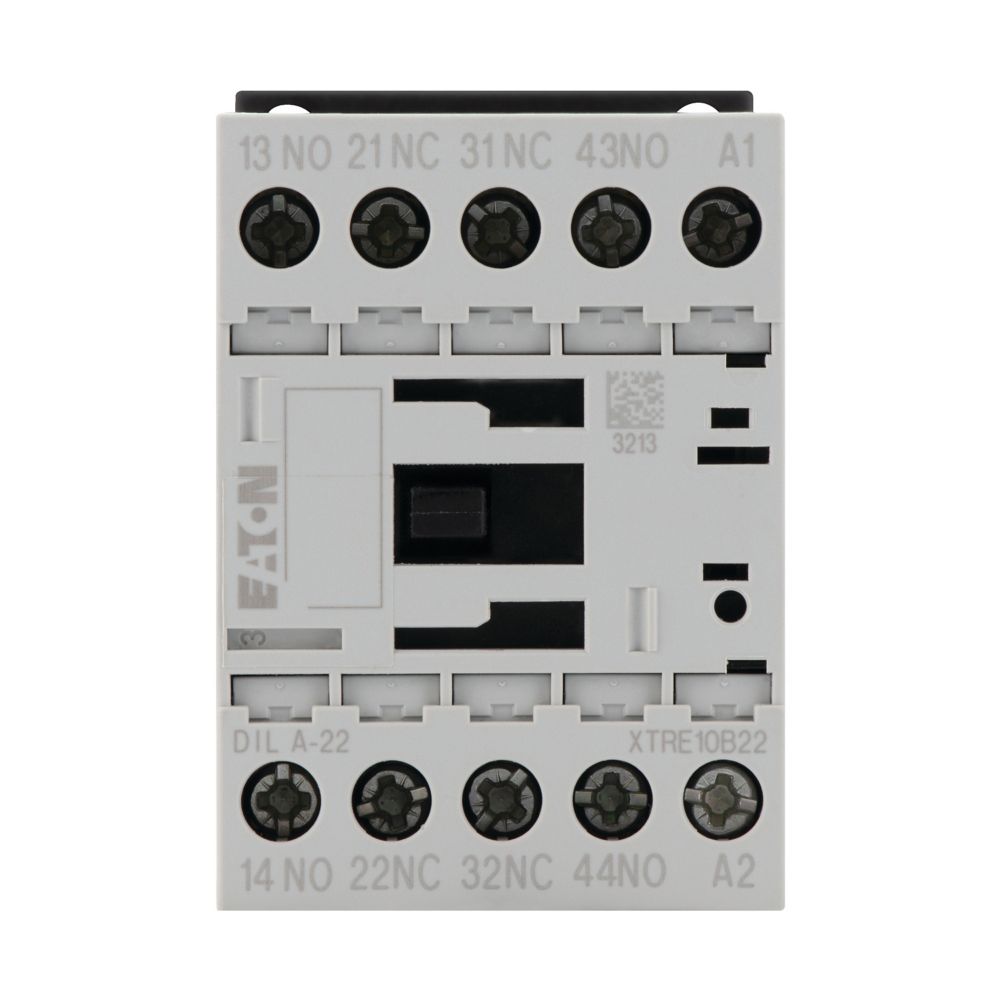

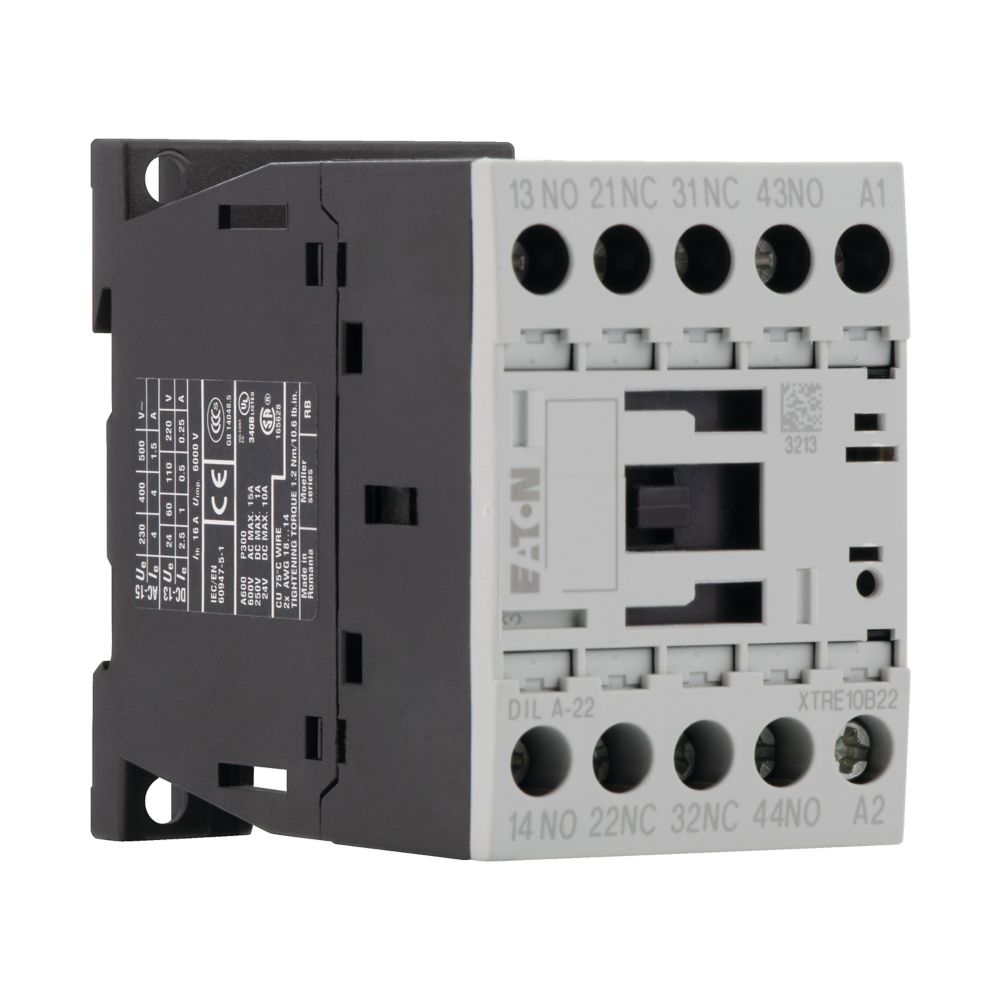

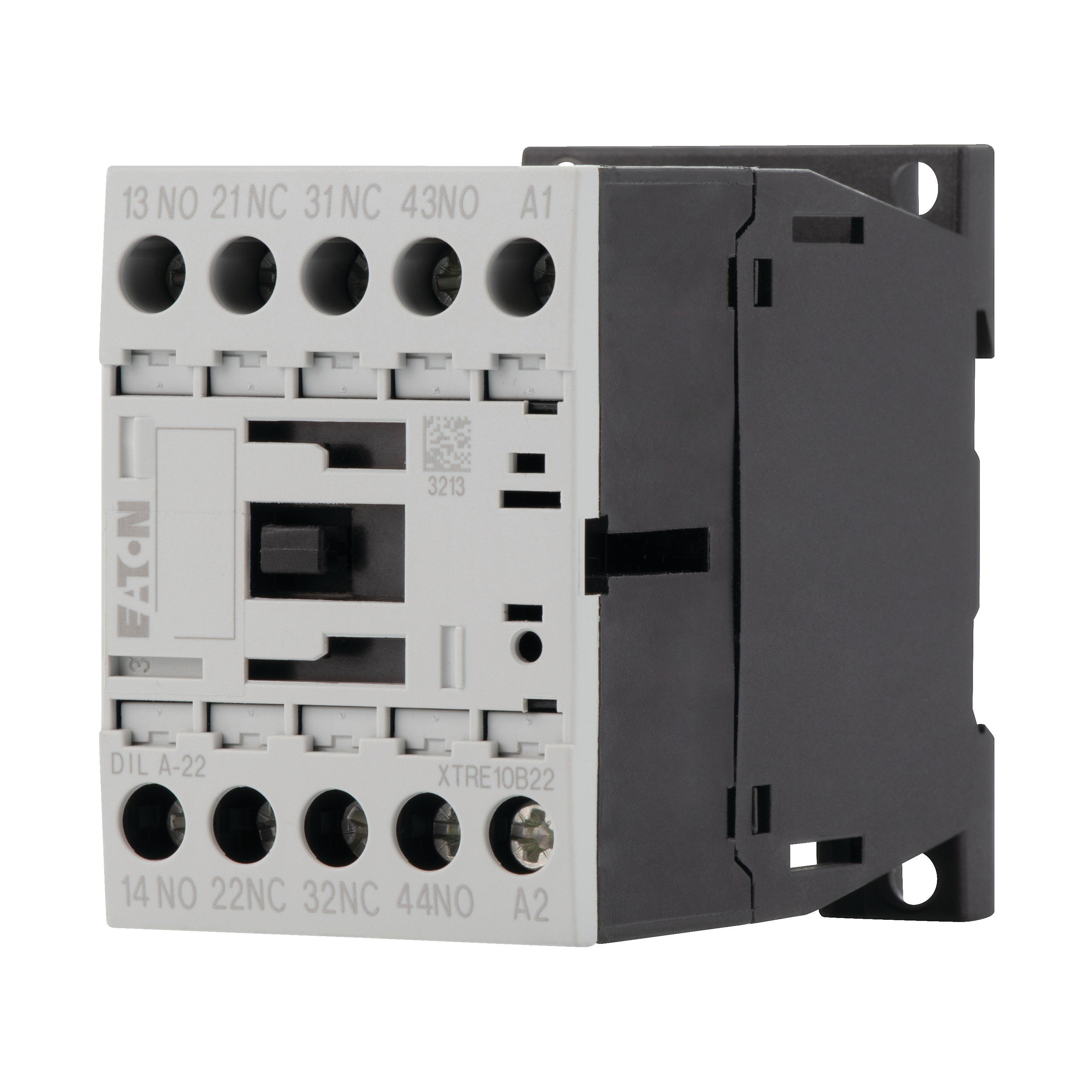

Contactor relay, Product range: DILA relays, Application: Contactor relays, Description: Basic devices with positive operation contacts, Connection technique: Screw terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Code number and version of combination Distinctive number: 22E, Can be combined with auxiliary contact module: DILA-XHI(V)…, Actuating voltage: 24 V DC, Voltage AC/DC: DC operation, Degree of Protection: IP20, Instructions: Contact numbers to EN 50011, Coil terminal markings to EN 50005 , built-in suppressor circuit', Standards: IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 0 |
| Rated control supply voltage AC 60 Hz | 0 |
| Rated control supply voltage DC | 24 |
| Voltage type for actuating | DC |
| Rated operation current | 16 |
| Rated operation current Ie, 400 V | 4 |
| Operating voltage AC 50 Hz | 17 |
| Operating voltage AC 60 Hz | 17 |
| Operating voltage DC | 24 |
| Voltage type (operating voltage) | AC/DC |
| Rated switch current | 16 |
| Mounting/installation | |
| Mounting method | DIN-rail/screw |
| Model/type | |
| With LED indication | No |
| Application | |
| Suitable for manual operation | No |
| Connection | |
| Interface | No |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Connection type auxiliary circuit | Screw connection |
| Measurements | |
| Width | 45 |
| Height | 68 |
| Depth | 75 |
