Descriere

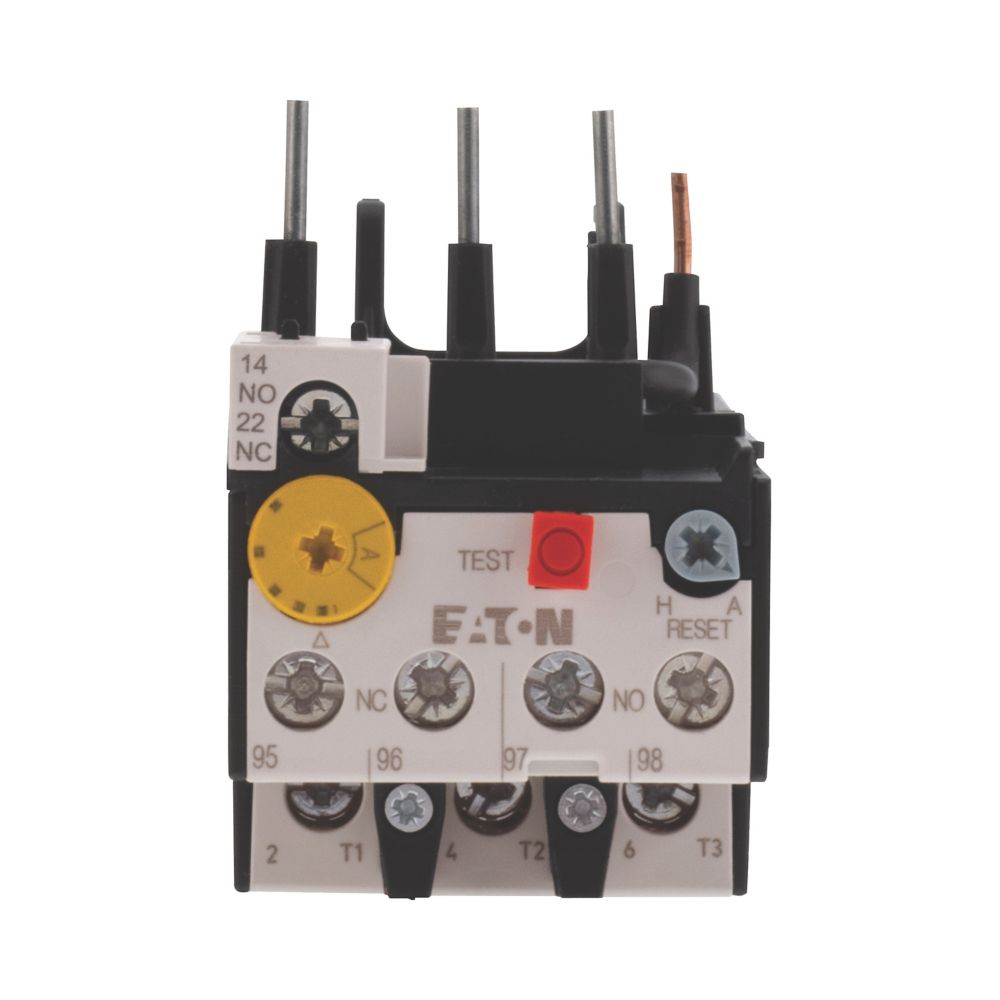

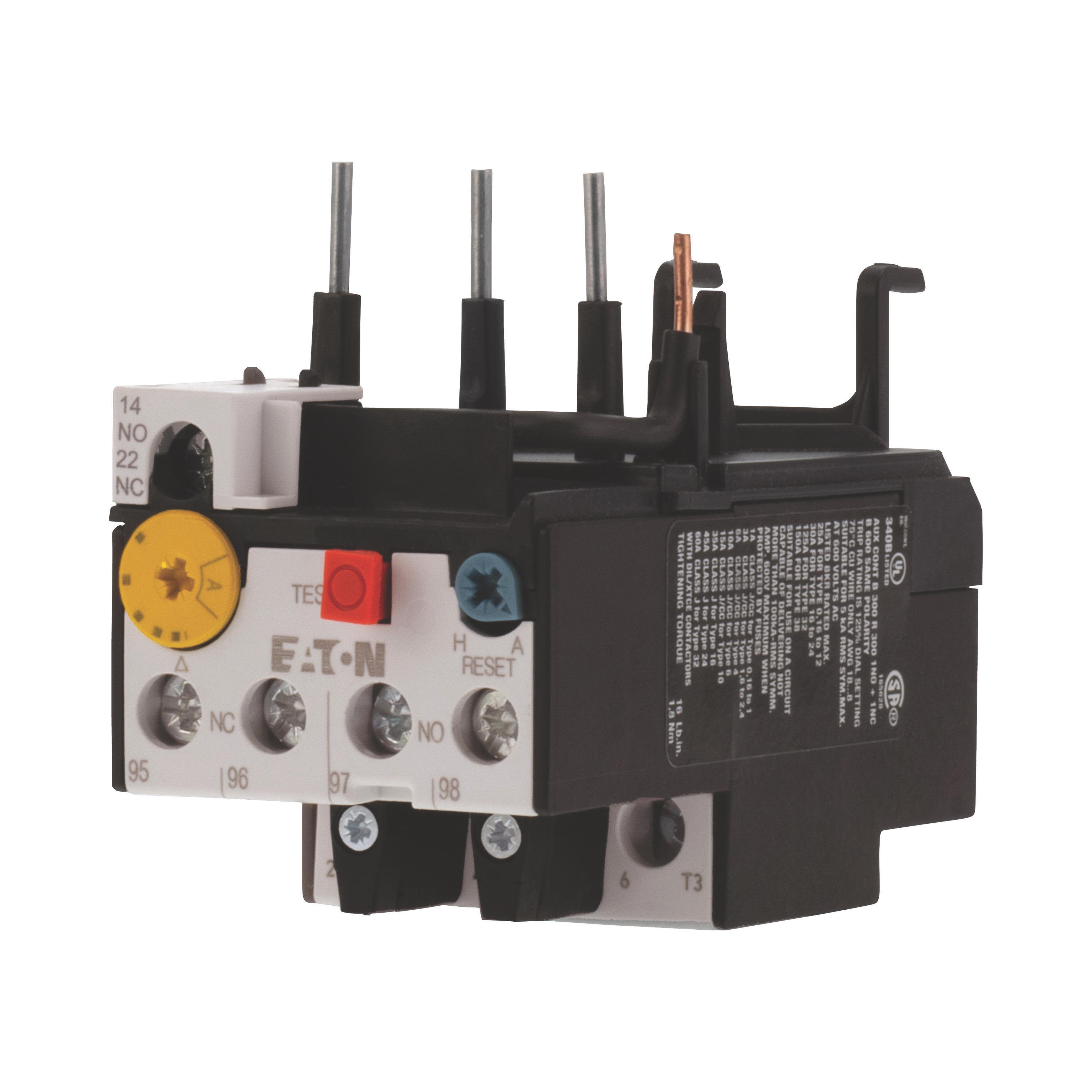

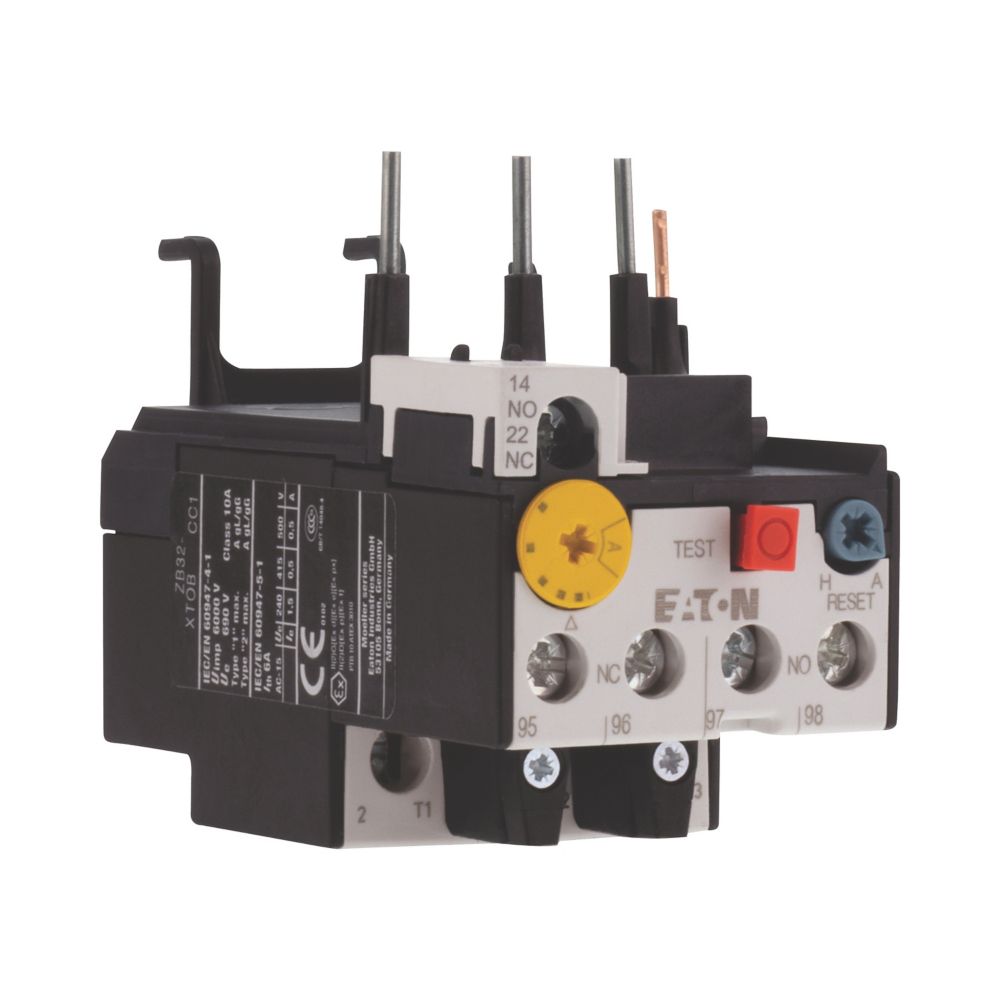

Overload relay, Product range: Overload relay ZB up to 150 A, Accessories: Overload relays, Frame size: ZB32, Phase-failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Reset pushbutton manual/auto, Trip-free release, Mounting type: Direct mounting, Auxiliary contacts N/O = Normally open: 1 N/O, Auxiliary contacts N/C = Normally closed: 1 N/C, For use with: DILM17, DILM25,, DILM32,, DILM38,, DILMF8,, DILMF11,, DILMF14,, DILMF17,, DILMF25,, DILMF32,, DIULM17, DIULM25,, DIULM32,, SDAINLM30,, SDAINLM45,, SDAINLM55, DS7-34…SX024…, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP20
Specificatii
| Electrical | |
| Adjustable current range | 16 |
| Max. rated operation voltage Ue | 690 |
| Mounting/installation | |
| Mounting method | Direct attachment |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Other | |
| Release class | CLASS 10 A |
| Options | |
| Reset function input | No |
| Reset function automatic | Yes |
| Reset function push-button | Yes |
