Descriere

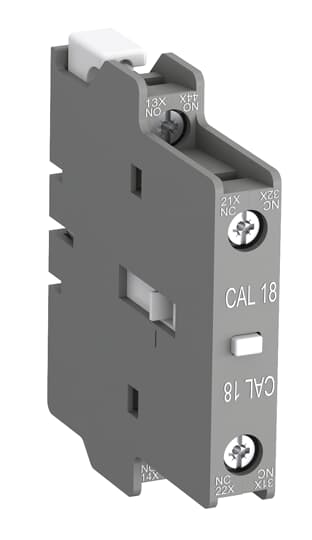

2 pole screw type side mounted auxilliary contact block, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | - V |
| Rated control supply voltage AC 60 Hz | - V |
| Rated control supply voltage DC | - V |
| Voltage type for actuating | - |
| Operating voltage AC 50 Hz | - V |
| Operating voltage AC 60 Hz | - V |
| Rated operation current Ie at AC-1, 400 V | - A |
| Rated operation current Ie at AC-3, 400 V | - A |
| Rated operation power at AC-3, 400 V | - kW |
| Rated operation current Ie at AC-4, 400 V | - A |
| Rated operation power at AC-4, 400 V | - kW |
| Rated operation power NEMA | - kW |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 64.5 mm |
| Height | 74 mm |
| Depth | 17.1 mm |
| Package 1 | |
| weight | 0,05 |
| length | 0,074 |
| width | 0,0645 |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 7320500256305 |
