Descriere

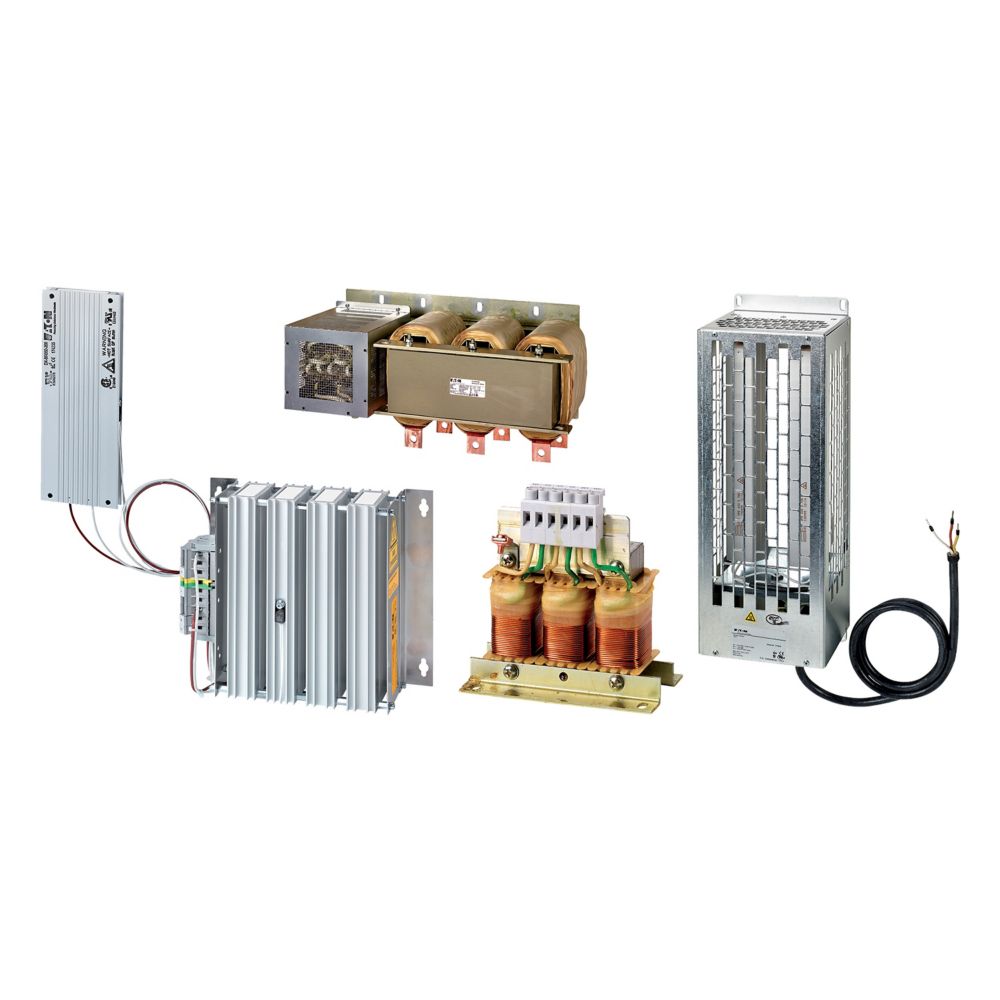

Motor choke for variable frequency drives
Specificatii
| Application | |
| Suitable as interference suppression reactance coil | No |
| Suitable as net reactance coil | No |
| Suitable as commutation reactance coil | No |
| Suitable as ripple filter choke | No |
| Suitable as output reactance coil | Yes |
| Model/type | |
| Number of poles, primary side | 3 |
| Other | |
| Rated clock frequency | 3 |
| Rated operating frequency | 0 |
| Rated inductance | 0.15 |
| Resonance frequency | 0 |
| Electrical | |
| Max. rated operation voltage Ue | 750 |
| Rated current AC | 303 |
| Max. rated current (Ith) at rated voltage DC | 0 |
| Relative short circuit voltage | 15.1 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 0,442 |
| weight | 55,664 |
| length | 0,65 |
| width | 0,85 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081656240 |
| Dimensions of product | |
| Volume | 0,36 |
| Weight | 48,7 |
| Length | 0,6 |
| Width | 0,8 |
| Depth | 0,75 |
