Descriere

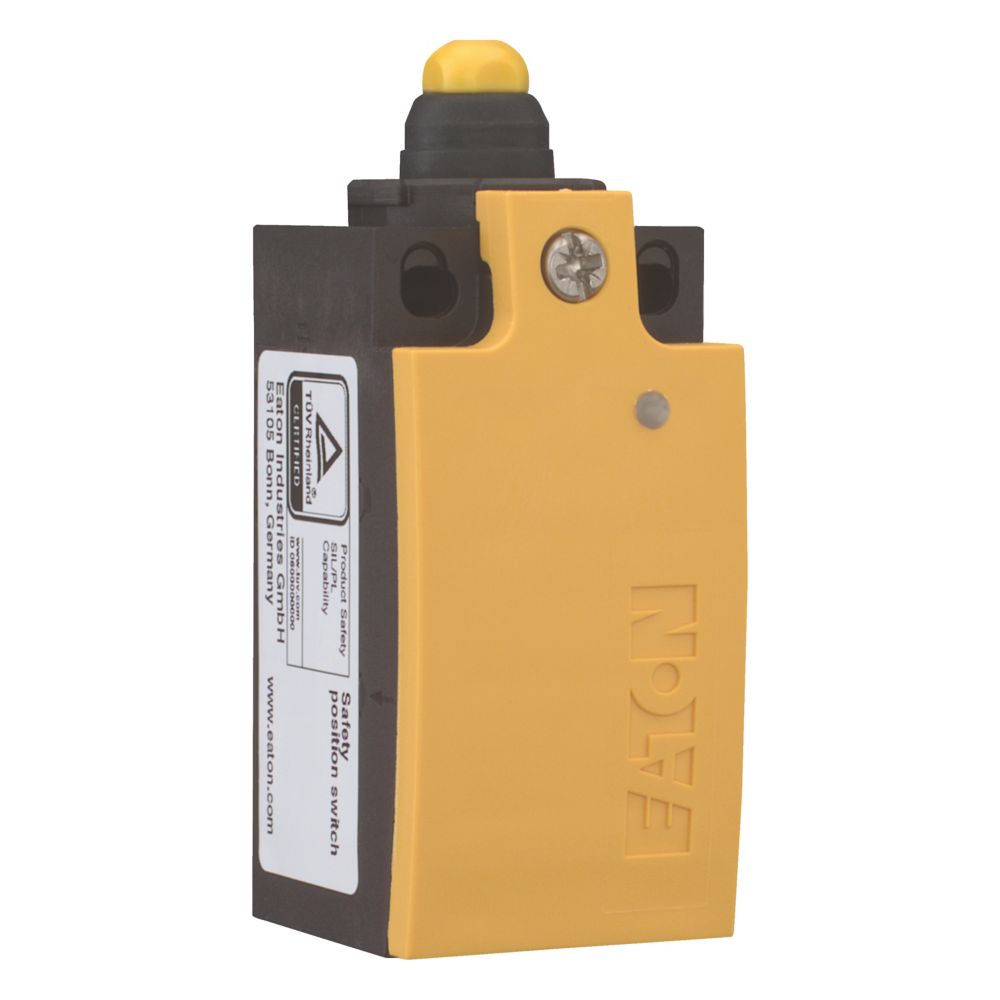

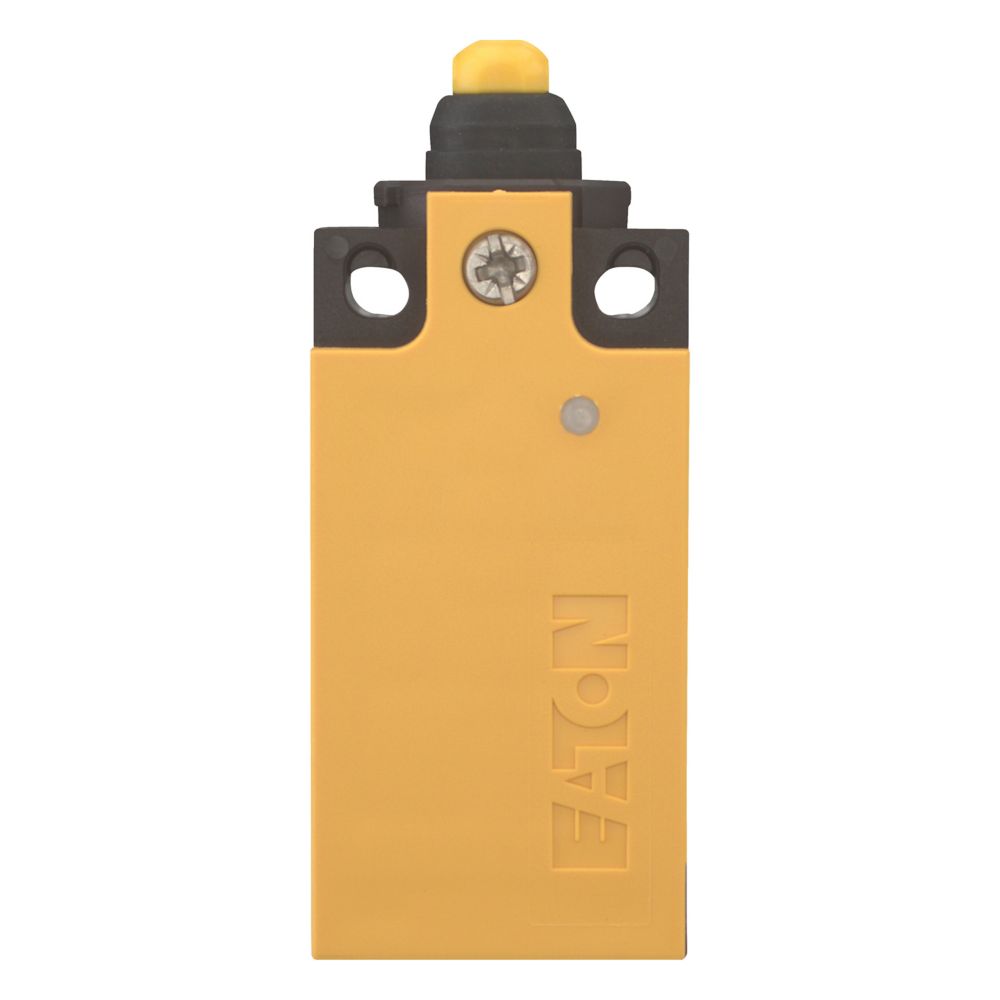

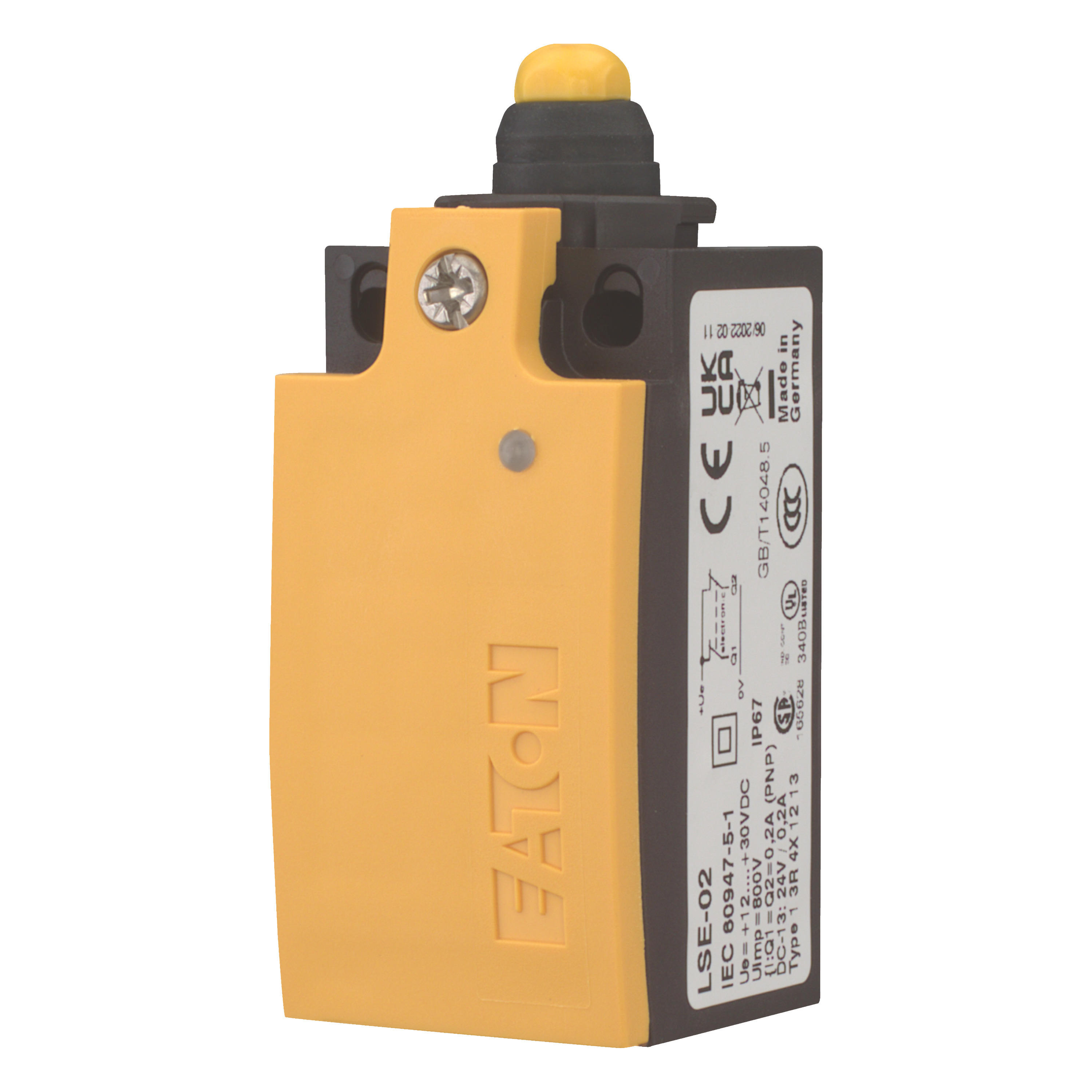

Safety position switch, Basic function: Position switches, Safety position switches, Part group reference: LSE, Product range: Position switch with electronically adjustable operating point, Degree of Protection: IP66, IP67, Features: Basic device, expandable, Ambient temperature: -25 - +70 °C, Description: Visual status indication, comparable with positive opening function, Device goes into safe state on high interference., Can be used in safety circuits, partly short-circuit proof, Restart after reset, Individual operating point adjustment, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Ue= 12 - 30 V DC , Color Enclosure covers: Yellow, Housing: Insulated material, Connection type: Cage Clamp, Cage-Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden, Germany., Accessories for the Cage-Clamp terminals from Wago:power comb, gray, Wago Article No. 264-402, Standards: IEC/EN 60947, EN 61000-4
Specificatii
| Measurements | |
| Width sensor | 31 |
| Diameter sensor | 0 |
| Height of sensor | 61 |
| Length of sensor | 33.5 |
| Electrical | |
| Rated operation current Ie at AC-15, 24 V | 0 |
| Rated operation current Ie at AC-15, 125 V | 0 |
| Rated operation current Ie at AC-15, 230 V | 0 |
| Rated operation current Ie at DC-13, 24 V | 0.2 |
| Rated operation current Ie at DC-13, 125 V | 0 |
| Rated operation current Ie at DC-13, 230 V | 0 |
| Model/type | |
| Switching function | Slow-action switch |
| Construction type housing | Cuboid |
| Type of control element | Plunger |
| With status indication | Yes |
| Options | |
| Switching function latching | No |
| Forced opening | No |
| Connection | |
| Output electronic | Yes |
| Number of safety auxiliary contacts | 0 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Type of electric connection | Cable entry metrical |
| Communication | |
| Type of interface | None |
| Type of interface for safety communication | None |
| Material | |
| Housing material | Plastic |
| Coating housing | Other |
| Setting/control | |
| Alignment of the control element | Roller cam straight |
| Application | |
| Suitable for safety functions | Yes |
| Protection | |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Degree of protection (IP) | IP66/IP67 |
| Degree of protection (NEMA) | Other |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| volume | 0,00007945 |
| weight | 0,0555 |
| length | 0,0355 |
| width | 0,033 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082661212 |
| Package 2 | |
| volume | 0,0003315 |
| weight | 0,111 |
| length | 0,068 |
| width | 0,065 |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 4015081829576 |
| Dimensions of product | |
| Volume | 0,00007945 |
| Weight | 0,048 |
| Length | 0,0335 |
| Width | 0,031 |
| Depth | 0,0765 |
