Descriere

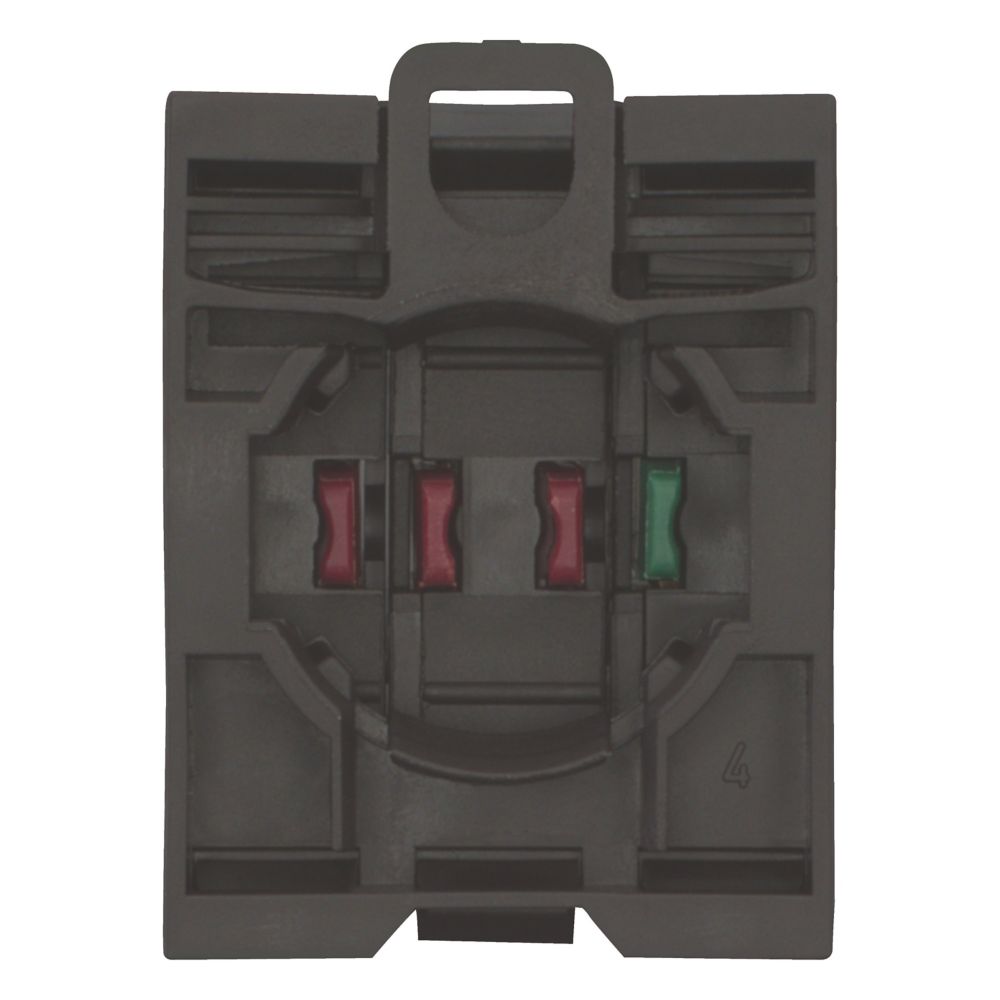

Contact element, Connection technique: Screw terminals, Fixing: Front fixing, Description: Combination of contact element and self-monitoring contact element M22-K01SMC10 with screw terminals, M22-A mounting adapter, and M22-XSMC signaling contact actuator, The N/O in the self-monitoring contact element is actuated when mounted with M22-XSMC, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 2 |
| Type of electric connection | Screw connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Clip-on |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 0,00100399 |
| weight | 0,052 |
| length | 0,15 |
| width | 0,205 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081696185 |
| Dimensions of product | |
| Volume | 0,00006141 |
| Weight | 0,047 |
| Length | 0,0402 |
| Width | 0,047 |
| Depth | 0,0325 |
