Descriere

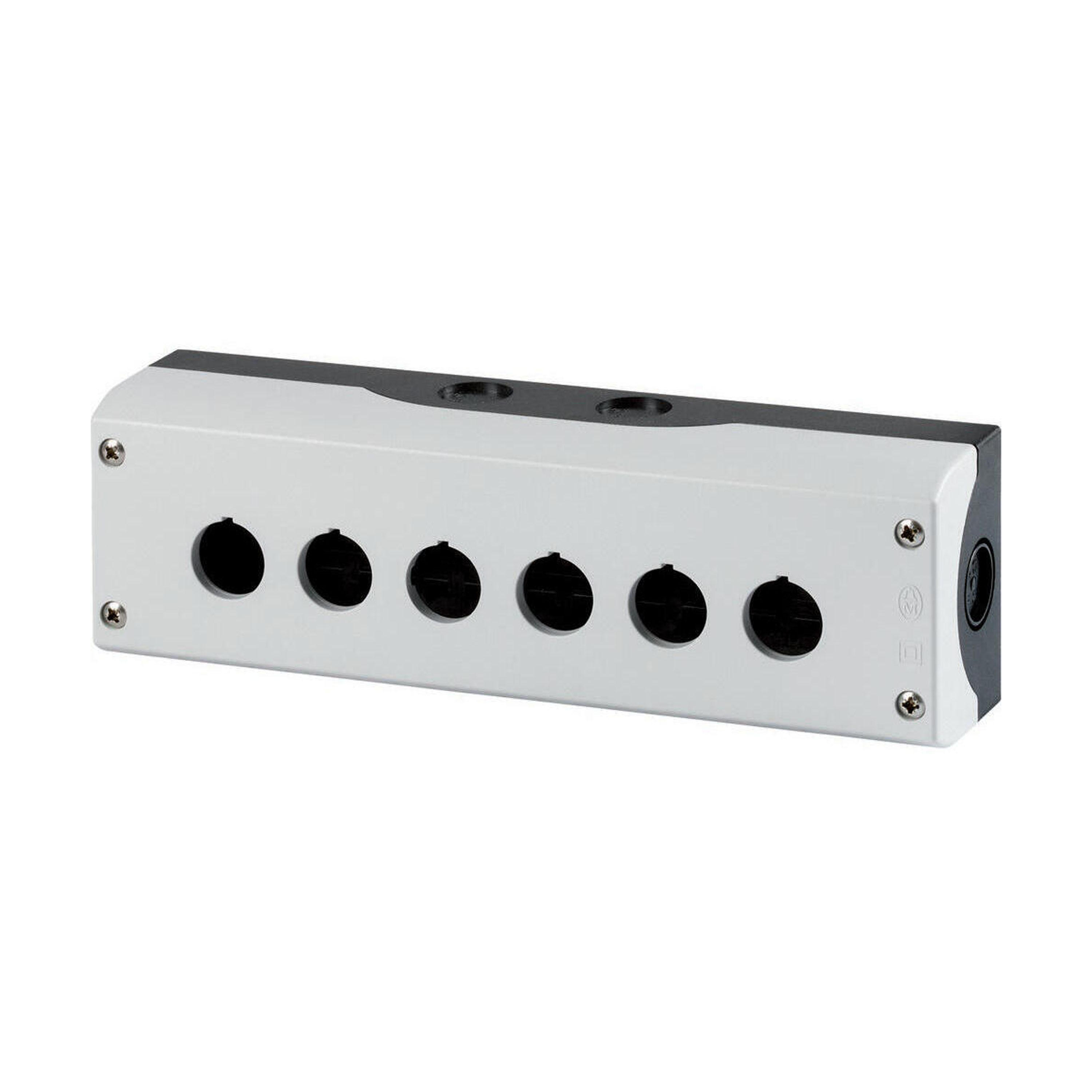

Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 6, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side), Degree of Protection: IP66, Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label
Specificatii
| Model/type | |
| Number of command positions | 6 |
| Construction type housing | Surface mounted housing |
| Material | |
| Housing material | Plastic |
| Housing material quality | Other |
| Measurements | |
| Diameter openings | 22.5 |
| Width | 252 |
| Height | 56 |
| Depth | 80 |
| Colour | |
| Colour housing cover | Grey |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 3R |
| Package 1 | |
| volume | 0,002392 |
| weight | 0,449 |
| length | 0,113 |
| width | 0,255 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165406 |
| Dimensions of product | |
| Volume | 0,001129 |
| Weight | 0,362 |
| Length | 0,08 |
| Width | 0,252 |
| Depth | 0,056 |
