Descriere

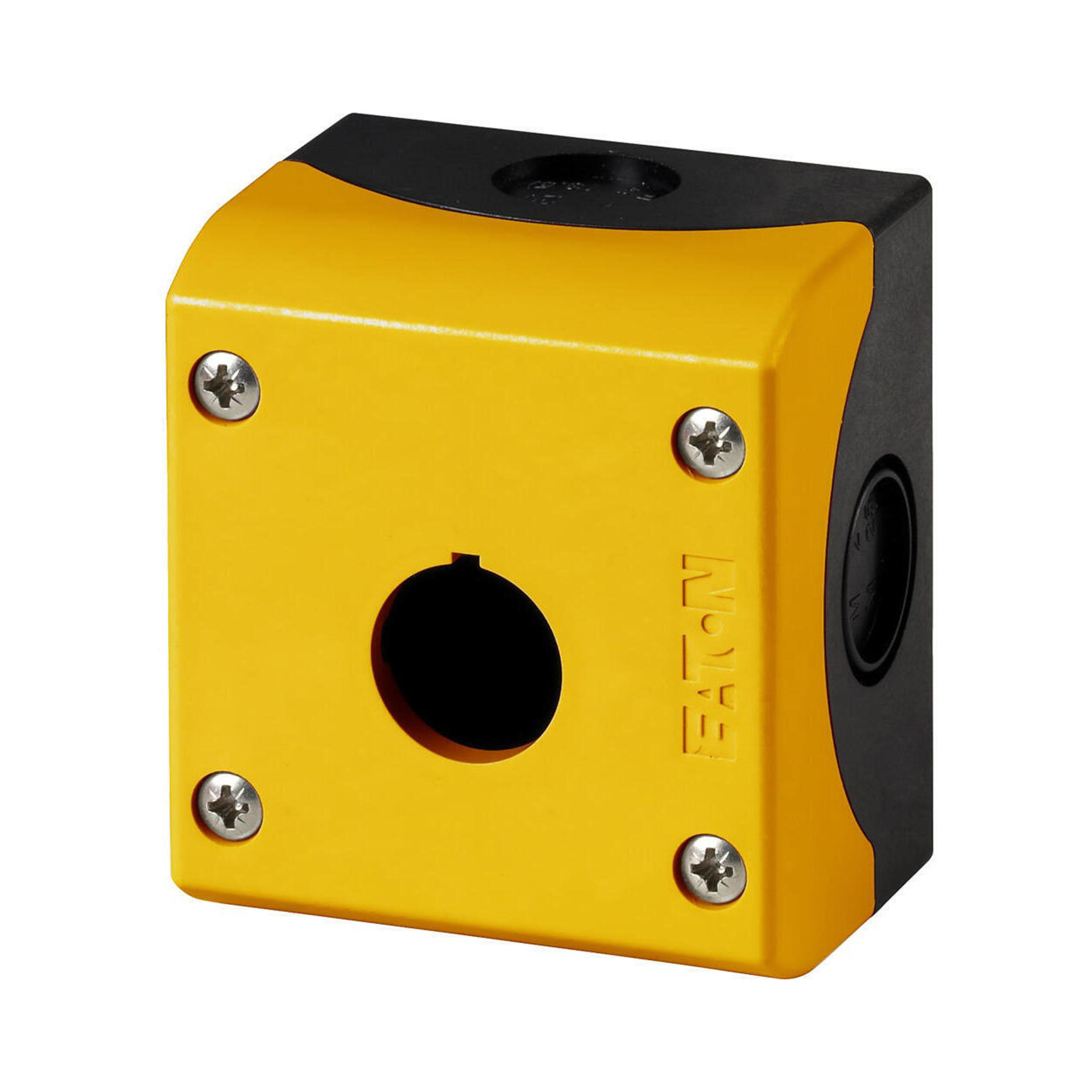

Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 1, Cable entry: rear: 2 x M16, at top: 1 x M20, lateral: 2 x M20/M25 (1 x each side), Degree of Protection: IP66, IP67, IP69K, Color RAL Value: RAL 1004, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 1 x 22.5, For use with: Controlled stop/emergency-stop buttons
Specificatii
| Model/type | |
| Number of command positions | 1 |
| Construction type housing | Surface mounted housing |
| Material | |
| Housing material | Plastic |
| Housing material quality | Other |
| Measurements | |
| Diameter openings | 22.5 |
| Width | 72 |
| Height | 56 |
| Depth | 80 |
| Colour | |
| Colour housing cover | Yellow |
| Protection | |
| Degree of protection (IP) | IP67/IP69K |
| Degree of protection (NEMA) | 13 |
| Package 1 | |
| volume | 0,0004579 |
| weight | 0,155 |
| length | 0,0825 |
| width | 0,0745 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165369 |
| Dimensions of product | |
| Volume | 0,00032256 |
| Weight | 0,136 |
| Length | 0,08 |
| Width | 0,072 |
| Depth | 0,056 |
