Descriere

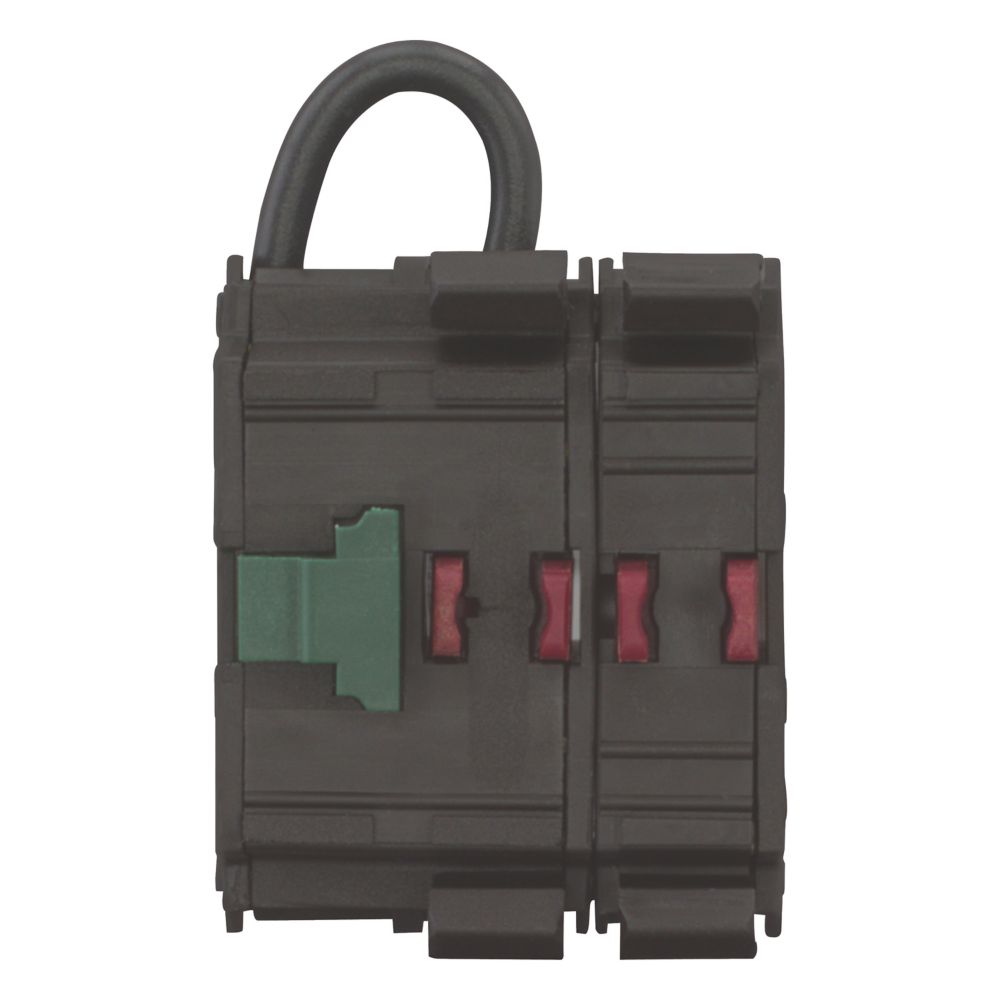

Contact element, Connection technique: Screw terminals, Fixing: Front fixing, Description: The N/O is actuated when mounted on the pushbutton, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 2 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 30, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 2 |
| Type of electric connection | Screw connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Clip-on |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 0,00003648 |
| weight | 0,0334 |
| length | 0,04 |
| width | 0,034 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081192922 |
| Package 2 | |
| volume | 0,0003315 |
| weight | 0,167 |
| length | 0,075 |
| width | 0,068 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081844258 |
| Dimensions of product | |
| Volume | 0,00003648 |
| Weight | 0,032 |
| Length | 0,038 |
| Width | 0,032 |
| Depth | 0,03 |
