Descriere

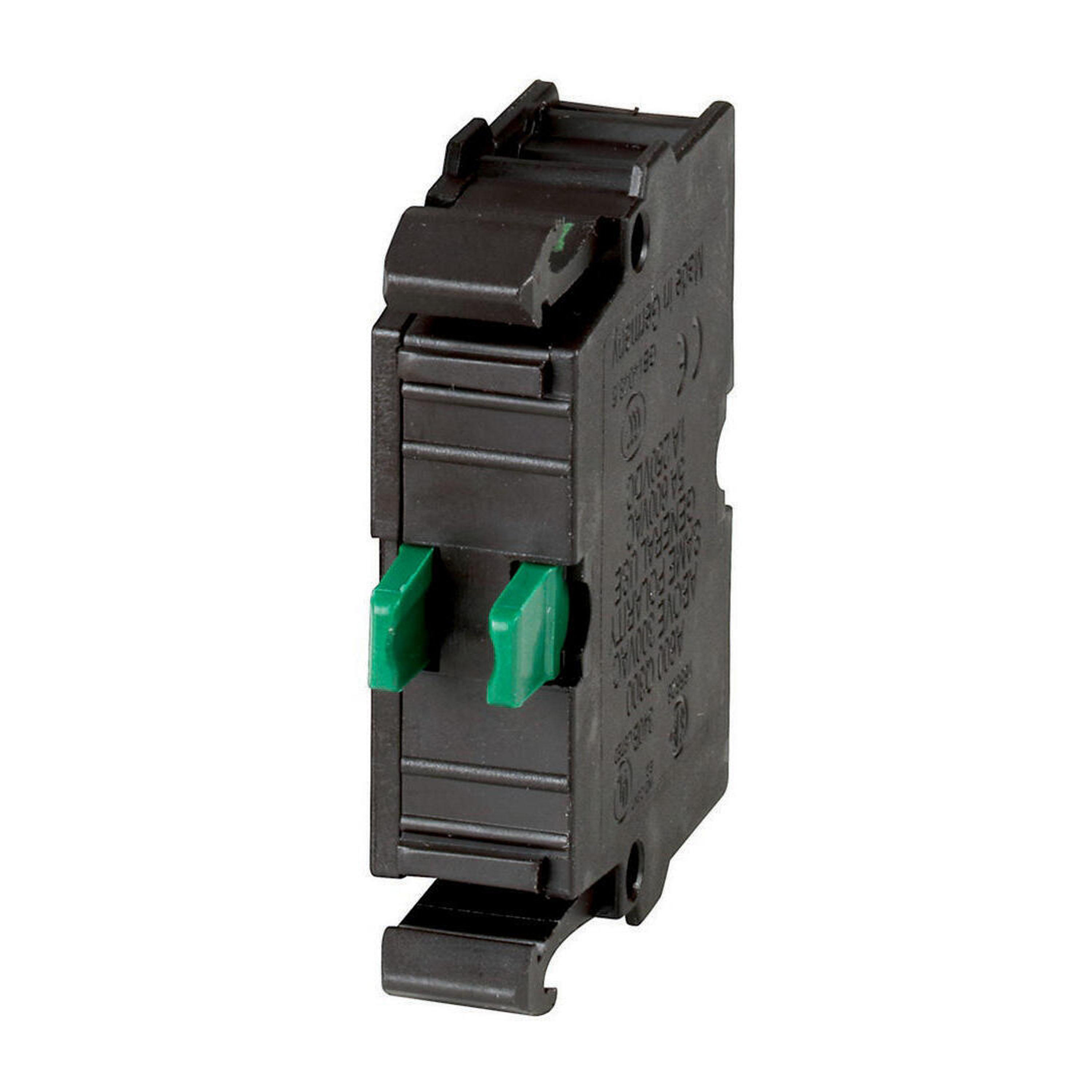

Contact element, Connection technique: Screw terminals, Fixing: Front fixing, Contacts N/O = Normally open: 1 N/O, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact, Standards: IEC 60947-5-1
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Clip-on |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 0,00001216 |
| weight | 0,0109 |
| length | 0,04 |
| width | 0,034 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081103669 |
| Package 2 | |
| volume | 0,000405 |
| weight | 0,218 |
| length | 0,09 |
| width | 0,075 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 4015081843411 |
| Dimensions of product | |
| Volume | 0,00001216 |
| Weight | 0,01 |
| Length | 0,038 |
| Width | 0,032 |
| Depth | 0,01 |
