Descriere

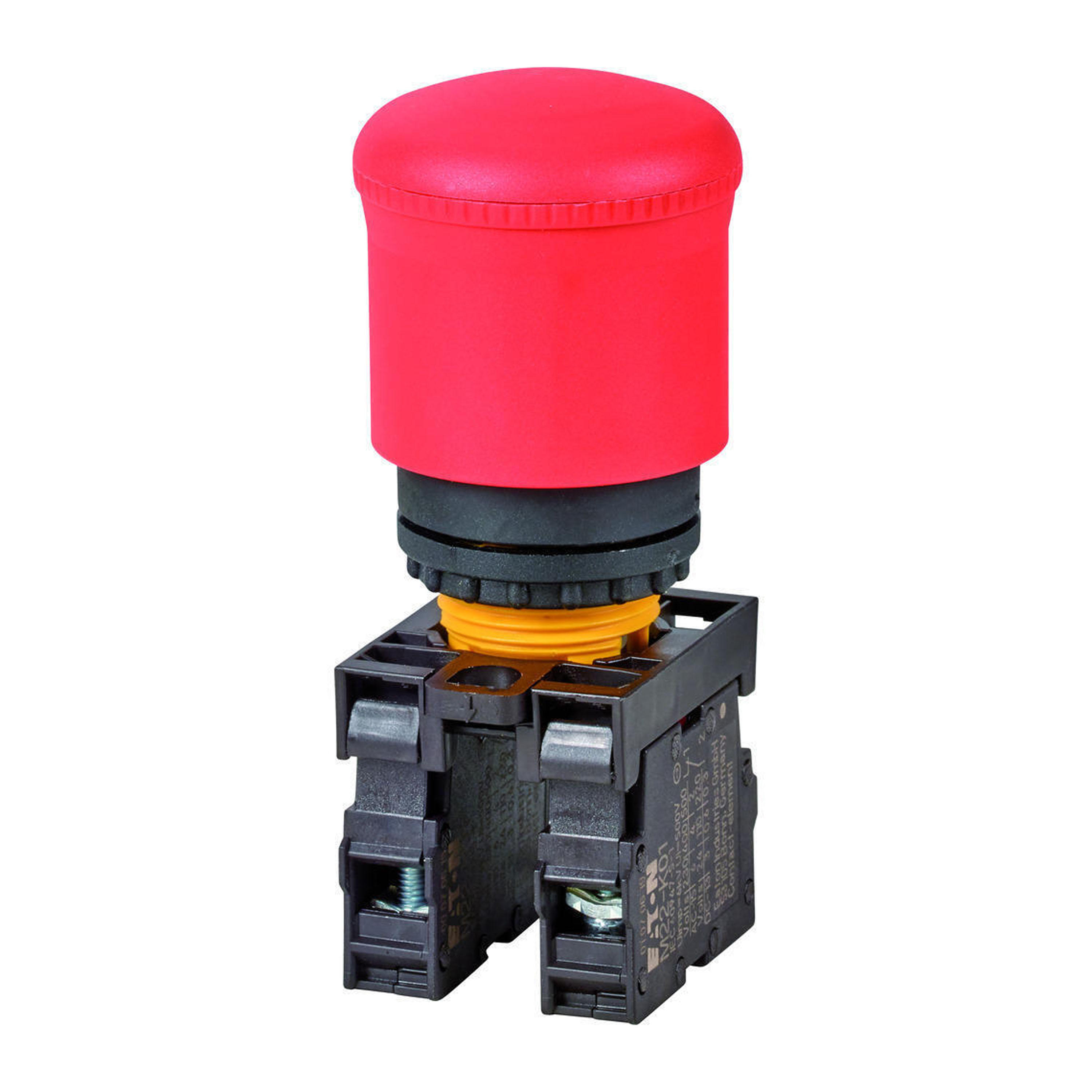

Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Complete unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Pull-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7 , Minimum force for positive opening: N 20, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Other | |
| Unlocking method | Pull-release |
| Connection | |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Connection type auxiliary circuit | Screw connection |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X, 13 |
| Mounting/installation | |
| Mounting method | Built-in |
| Model/type | |
| With lighting | No |
| Electrical | |
| Supply voltage lamp | 0 |
| Measurements | |
| Hole diameter | 22.5 |
| Diameter cap | 38 |
| Package 1 | |
| volume | 0,00012996 |
| weight | 0,0698 |
| length | 0,092 |
| width | 0,04 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165161 |
| Package 2 | |
| volume | 0,00085106 |
| weight | 0,349 |
| length | 0,1706 |
| width | 0,0661 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081846979 |
| Dimensions of product | |
| Volume | 0,00012996 |
| Weight | 0,062 |
| Length | 0,09 |
| Width | 0,038 |
| Depth | 0,038 |
