Descriere

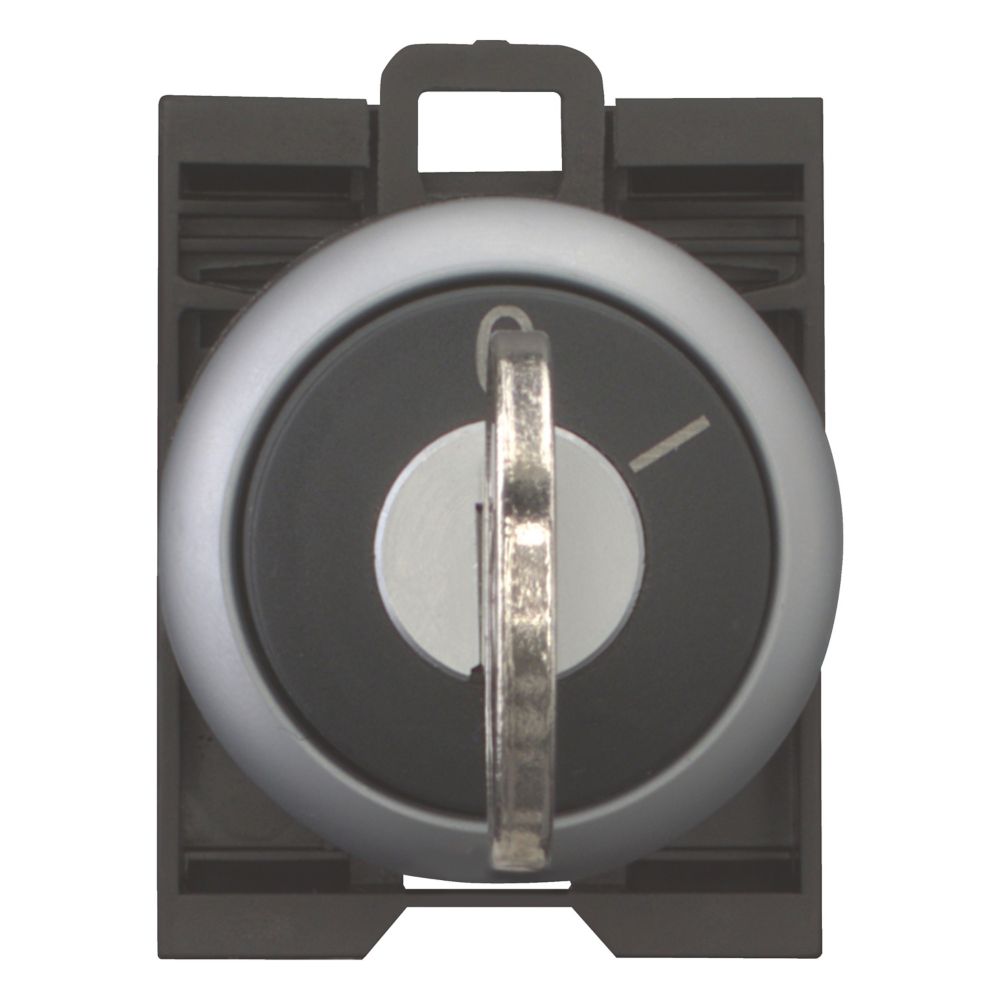

Key-operated actuator, RMQ-Titan, Complete unit, maintained, Function: 60°, Connection type: Screw connection, I, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-... , Information about equipment supplied: With 1 key, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Setting/control | |
| Number of switch positions | 2 |
| Model/type | |
| Type of control element | Key |
| With light source | No |
| With front ring | No |
| Application | |
| Suitable for lighting | No |
| Colour | |
| Colour button | Black |
| Colour front ring | Titanium |
| Measurements | |
| Hole diameter | 22.5 |
| Width opening | 0 |
| Height opening | 0 |
| Options | |
| Switching function latching | No |
| Spring-return | No |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Electrical | |
| Supply voltage | 0 |
| Power loss | - |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 0 |
| Type of electric connection | Screw connection |
| Material | |
| Material front ring | Plastic |
| Package 1 | |
| volume | 0,000117 |
| weight | 0,0598 |
| length | 0,132 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165178 |
| Package 2 | |
| volume | 0,00053728 |
| weight | 0,299 |
| length | 0,115 |
| width | 0,073 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081846986 |
| Dimensions of product | |
| Volume | 0,000117 |
| Weight | 0,055 |
| Length | 0,13 |
| Width | 0,03 |
| Depth | 0,03 |
