Descriere

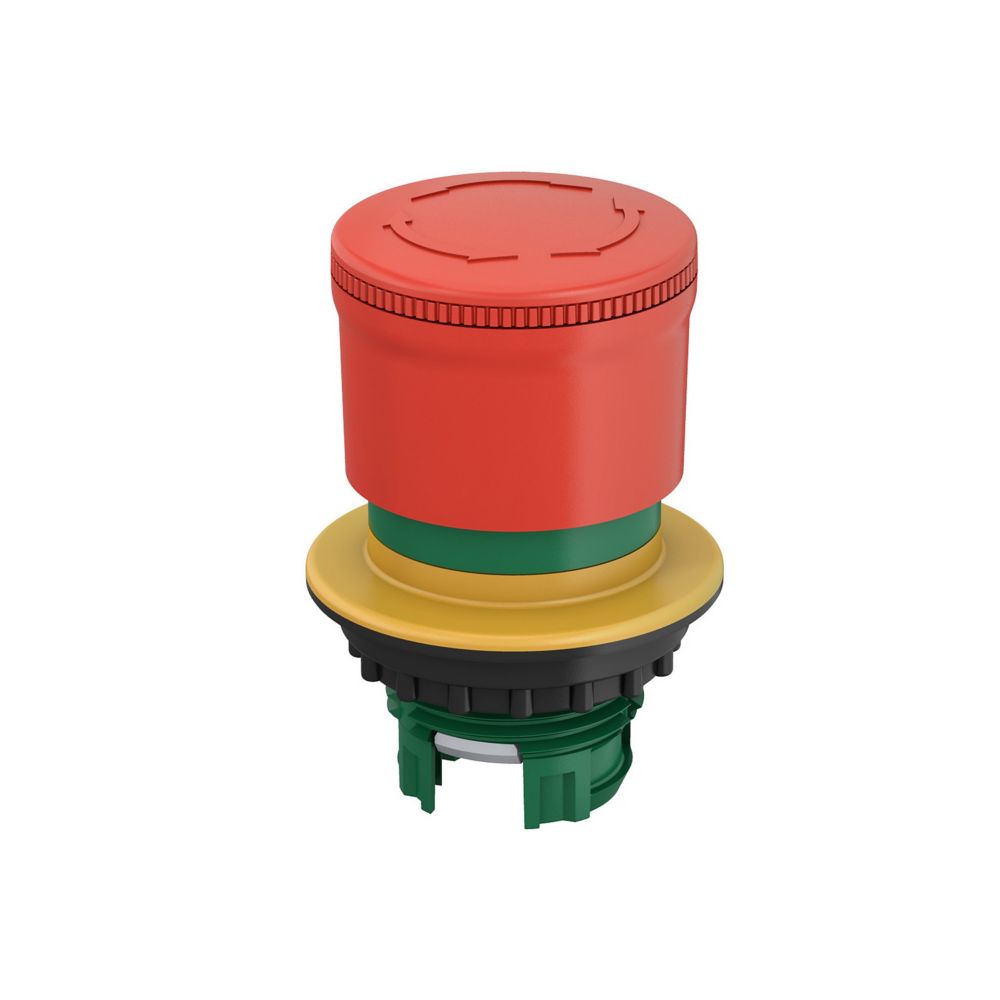

Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 30 mm, Illumination: Non-illuminated, Turn-to-release function, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, Degree of Protection: IP65, IP66, IP69, Connection to SmartWire-DT: no, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: EN 50581:2012, EN 60947-5-1:2017, EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017, EN ISO 13850:2015, 2006/42/EC Machinery Directive
Specificatii
| Colour | |
| Colour button | Red |
| Colour front ring | Other |
| Model/type | |
| Construction type lens | Round |
| Type of button | High |
| With lighting | No |
| With front ring | No |
| Measurements | |
| Diameter cap | 30 |
| Hole diameter | 30.5 |
| Width opening | 0 |
| Height opening | 0 |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Application | |
| Suitable for lighting | No |
| Suitable for emergency stop | Yes |
| Electrical | |
| Supply voltage lamp | 0 |
| Options | |
| Switching function latching | Yes |
| Spring-return | No |
| Material | |
| Material front ring | Other |
| Other | |
| Unlocking method | Turn-release |
| Package 1 | |
| volume | 0,0000288 |
| weight | 0,0348 |
| length | 0,032 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081942602 |
| Package 2 | |
| volume | 0,00019058 |
| weight | 0,174 |
| length | 0,165 |
| width | 0,033 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081942732 |
| Dimensions of product | |
| Volume | 0,0000288 |
| Weight | 0,03 |
| Length | 0,03 |
| Width | 0,03 |
| Depth | 0,032 |
