Descriere

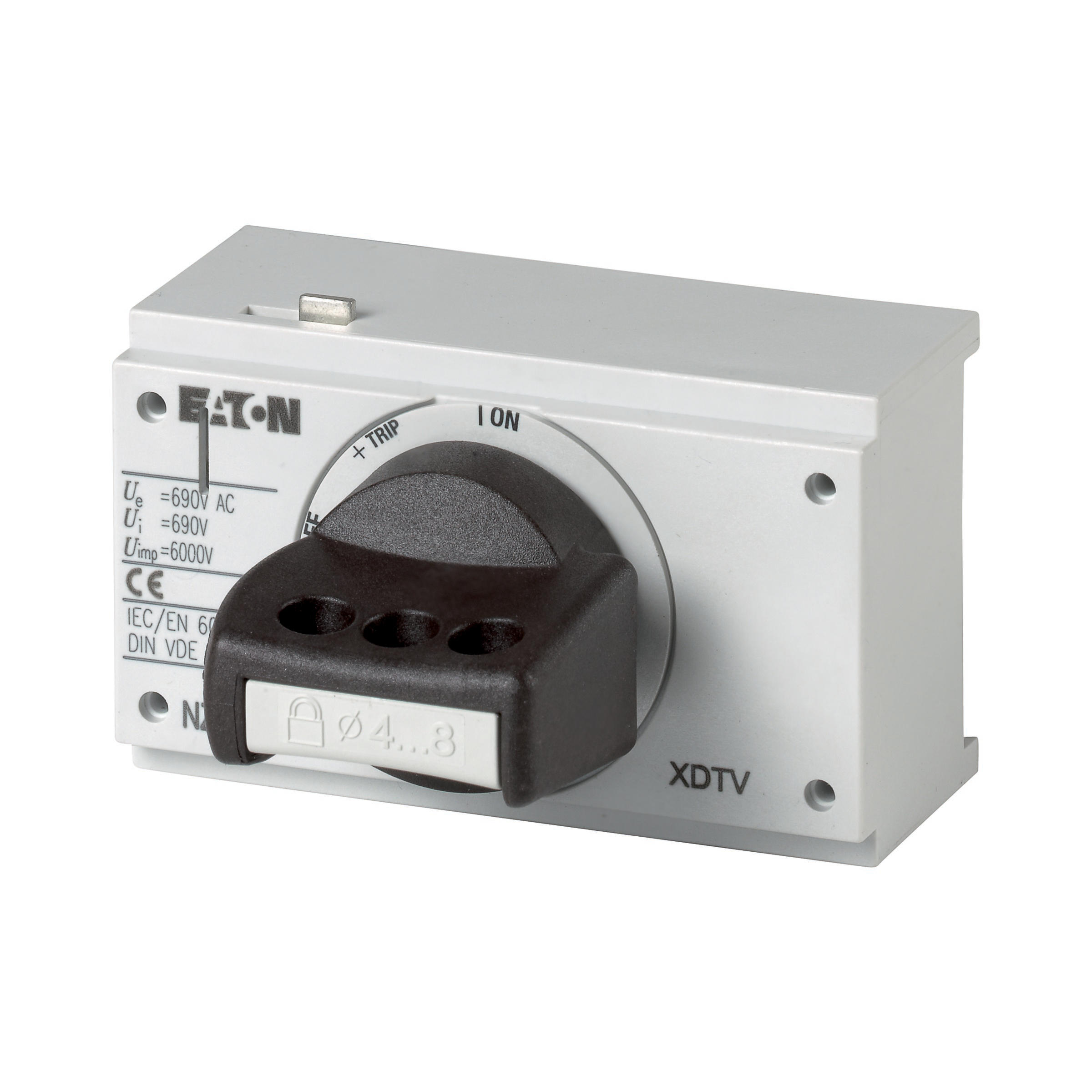

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete with rotary drive and insulating surround. Cannot be combined with mechanical interlock. Default, black/grey. Lockable on the 0 position on the handle using up to 3 padlocks. Can also be modified in I position. Also available with door interlock e.g. for MCC service distribution. Door interlock in ON position, can be defeated from the outside using a 1 mm pin. Not defeated in the locked OFF and ON positions. Door can be opened in OFF . Door opens only with active rotation beyond the 0 position. Can only be switched ON when the door is closed. Can be used for: NZM1, N(S)1
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | No |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Black |
| Application | |
| Suitable for emergency stop | No |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
| Package 1 | |
| volume | 0,000389 |
| weight | 0,297 |
| length | 0,08 |
| width | 0,09 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082714536 |
| Dimensions of product | |
| Volume | 0,0003888 |
| Weight | 0,16 |
| Length | 0,08 |
| Width | 0,09 |
| Depth | 0,054 |
