Descriere

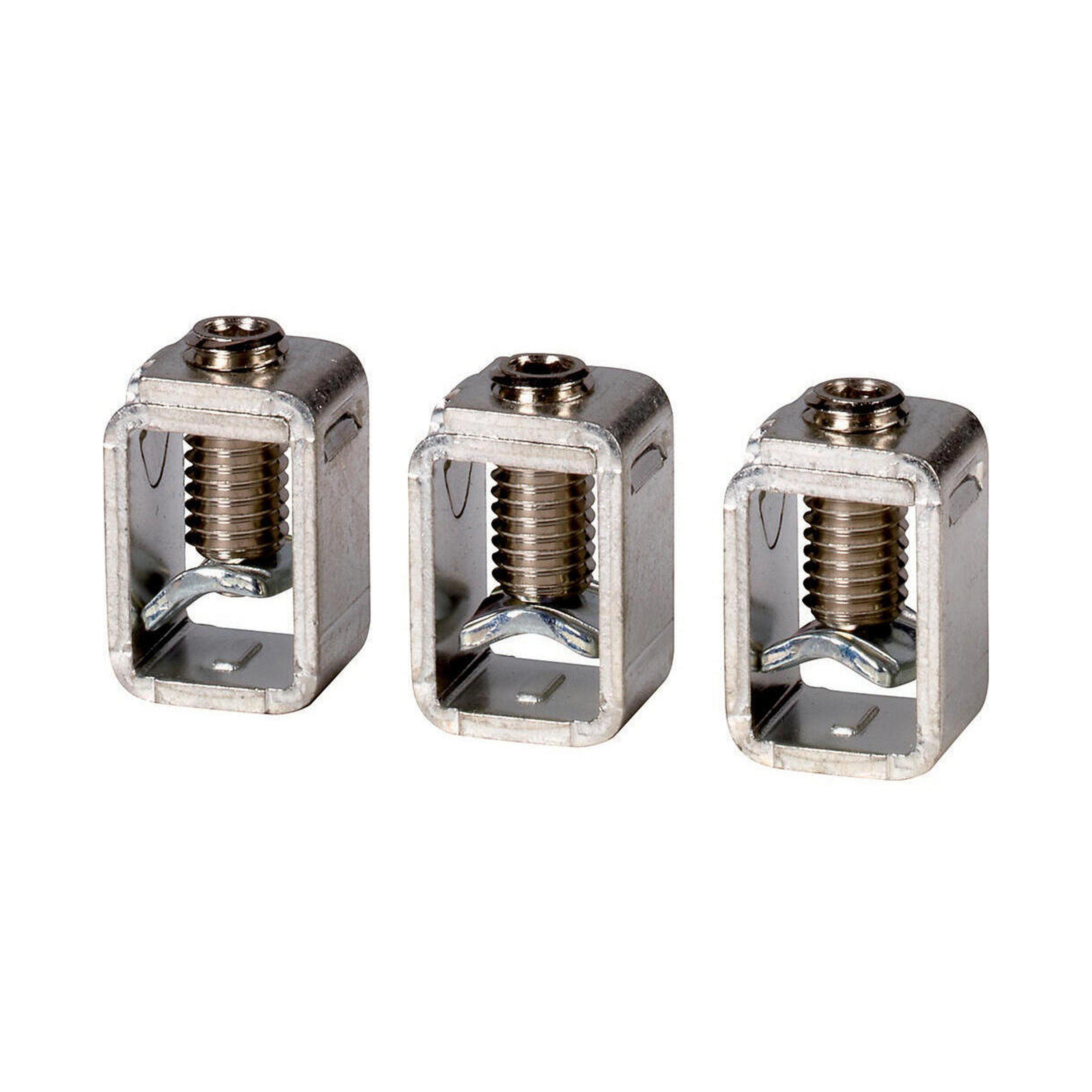

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Notes: part no. suffix and part no. contain parts for a circuit-breaker side at top or bottom for 3 or 4 pole circuit-breakers. Conversion kit for circuit-breaker with screw connection. Fitted within the switch housing. O = for fitting at the top. U = for fitting at the bottom. U e ≧ 525 VAC. Use cover NZM2(-4)-XKSA. Use ferrules with flexible and highly flexible conductors . Max. cross section shown can only be connected when flexible and without ferrules. Can be used for: NZM2(-4), PN2(-4), N(N/O)2(-4)
Documente
Specificatii
| Other | |
| Suitable for number of poles | 3 |
| Model/type | |
| Model | Other |
| Package 1 | |
| volume | 0,00199 |
| weight | 0,243 |
| length | 0,103 |
| width | 0,105 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082622442 |
| Dimensions of product | |
| Volume | 0,00199 |
| Weight | 0,233 |
| Length | 0,103 |
| Width | 0,105 |
| Depth | 0,184 |
