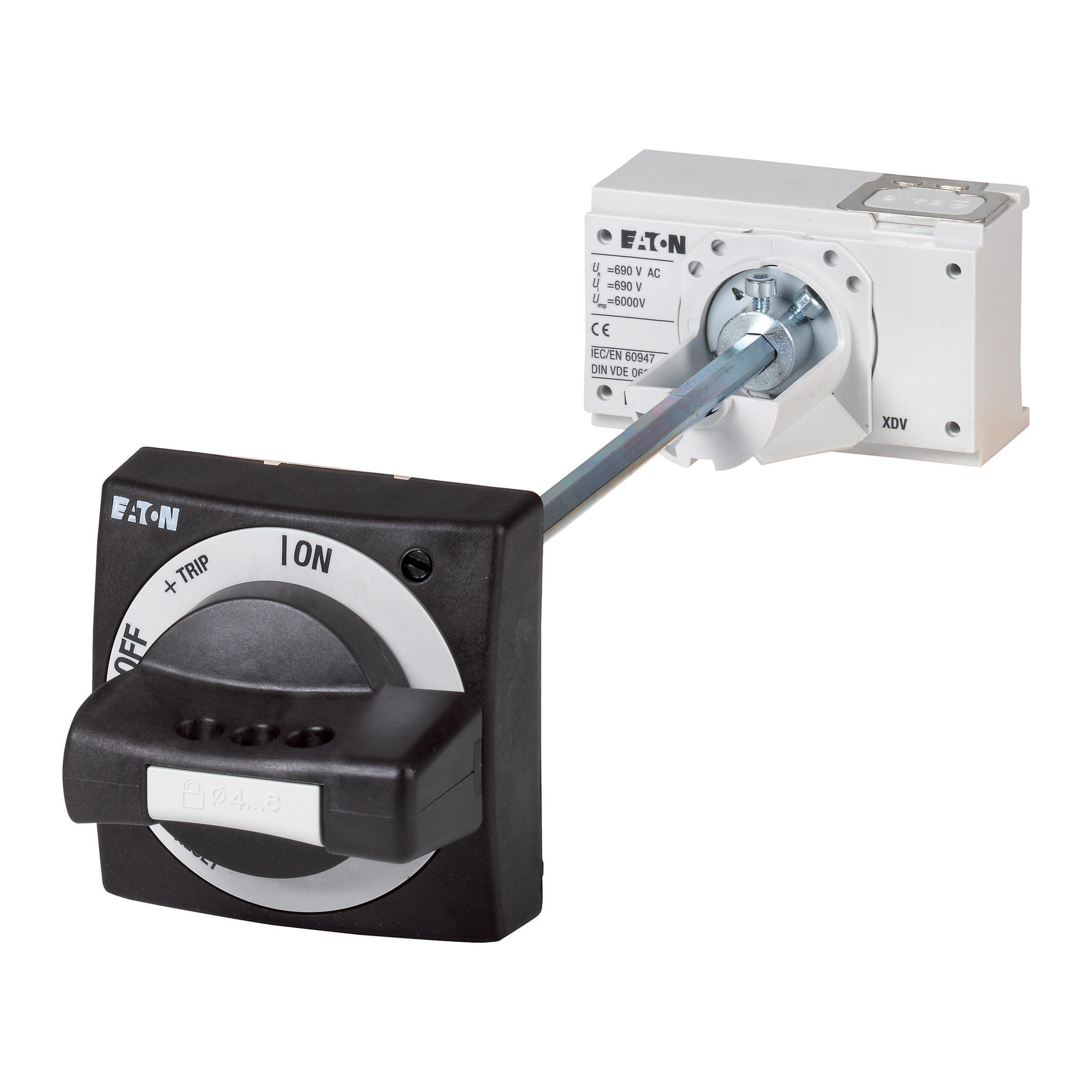

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. Cannot be combined with mechanical interlock. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock. Door interlock not defeated in the locked OFF position. Door opens only with active rotation beyond the 0 position. Can be used for: NZM2, N2
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | No |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Black |
| Application | |
| Suitable for emergency stop | No |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
| Package 1 | |
| volume | 0,00209 |
| weight | 0,764 |
| length | 0,1 |
| width | 0,11 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082714468 |
| Dimensions of product | |
| Volume | 0,00209 |
| Weight | 0,733 |
| Length | 0,1 |
| Width | 0,11 |
| Depth | 0,19 |
