Descriere

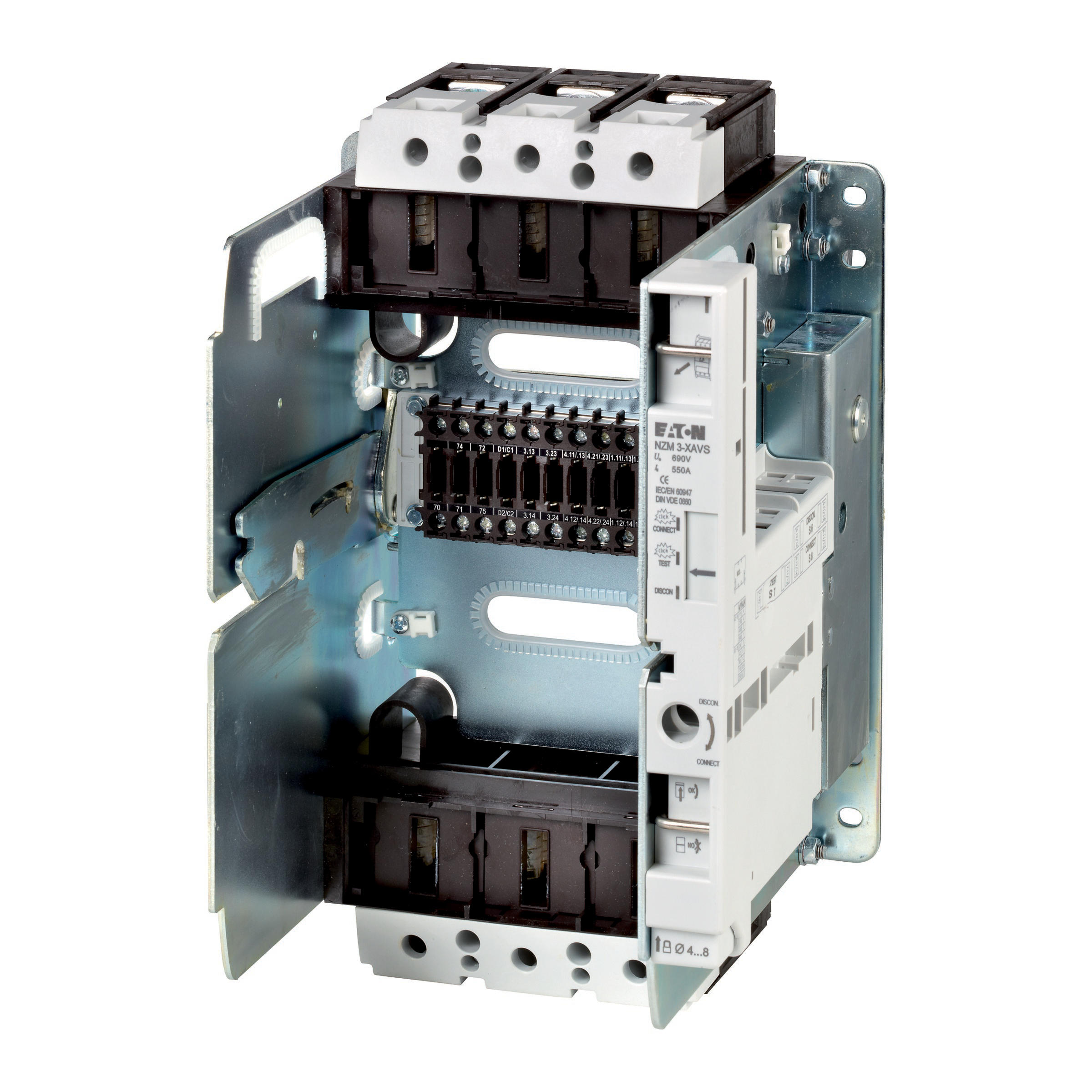

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide application. Functional groups make mounting flexible and simple. Note: for circuit-breaker NZM and switch-disconnector N. Not UL/CSA approved. Not for Ue > 690 V. For switches with withdrawal application. Also for reserve spots., test, disconnected. Position indication is mechanical with pointers. Additional electrical indication with auxiliary contacts possible. One N/O or N/C contact M22-(C)K01 or M22-(C)K10 each per position. Alternatively double contacts M22-CK. Completely with control circuit plug unit . All connections of auxiliary switches (HIA, HIN, HIV) and voltage releases to the control circuit plug units are already present. Maximum utilization: 3 HIN contacts, 2 contacts HIA, 2 contacts HIV. Cannot be combined with adapter set NZM4/NZM14 (NZM4-XSAS14-..) or N(ZM)4/N(ZM)12. Can be used for: NZM3, N3
Documente
Specificatii
| Electrical | |
| Rated current In | 610 |
| Number of poles | 3 |
| Mounting/installation | |
| Version as busbar adaptor | No |
| Version as built-in device | Yes |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Package 1 | |
| volume | 0,017545 |
| weight | 12,545 |
| length | 0,226 |
| width | 0,227 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082667115 |
| Dimensions of product | |
| Volume | 0,017545 |
| Weight | 12,043 |
| Length | 0,226 |
| Width | 0,227 |
| Depth | 0,342 |
