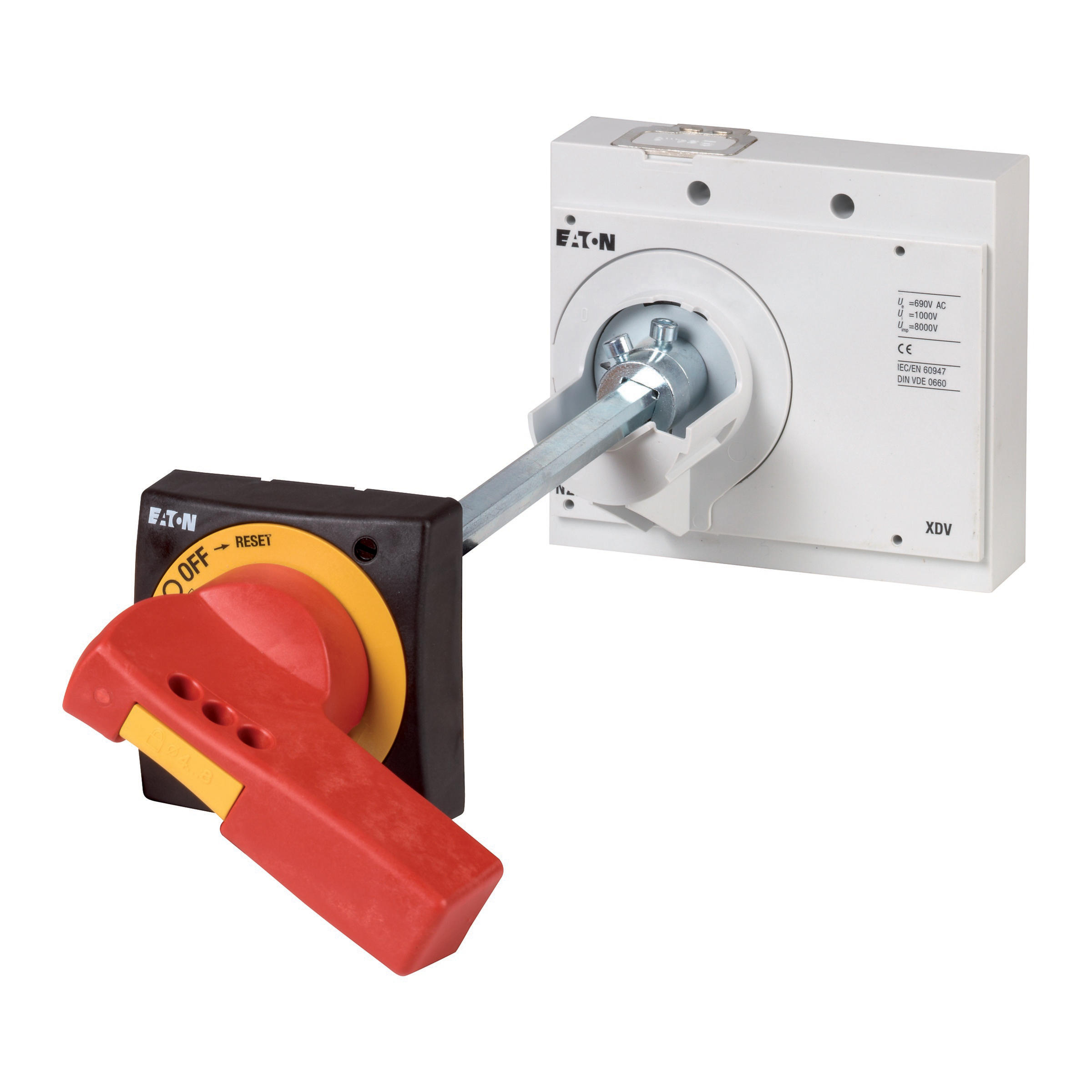

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Door coupling rotary handle with rotary drive. Extension shaft NZM..-XV4. External warning plate/marking plate in German/English, black and yellow flash. External warning plate/marking plate can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1 . Lockable on the 0 position on the handle using up to 3 padlocks. Lockable door and locking facility on switch in 0 position. Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | Yes |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Red |
| Application | |
| Suitable for emergency stop | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
| Package 1 | |
| volume | 0,003542 |
| weight | 1,727 |
| length | 0,23 |
| width | 0,14 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082666347 |
| Dimensions of product | |
| Volume | 0,003542 |
| Weight | 1,658 |
| Length | 0,23 |
| Width | 0,14 |
| Depth | 0,11 |
