Descriere

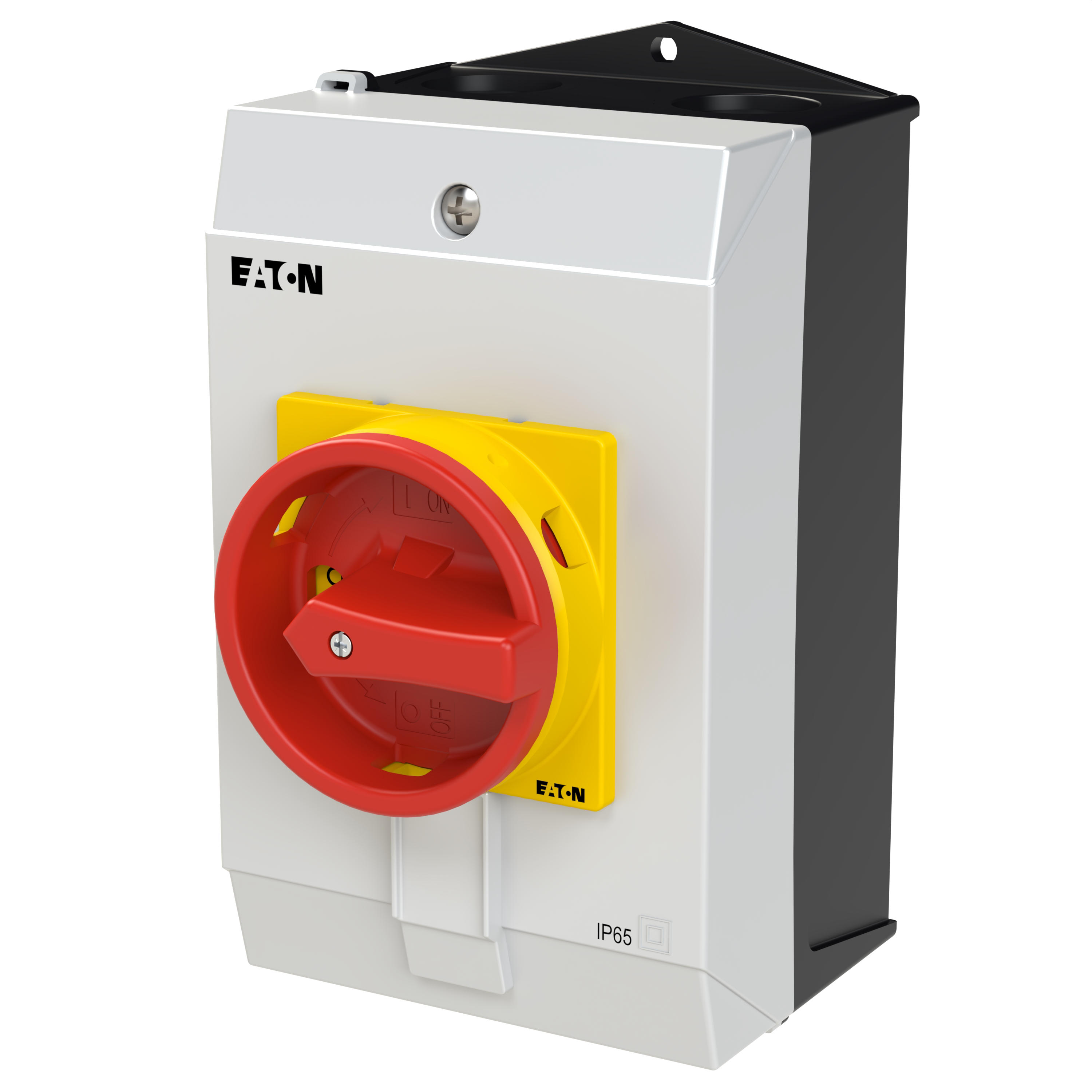

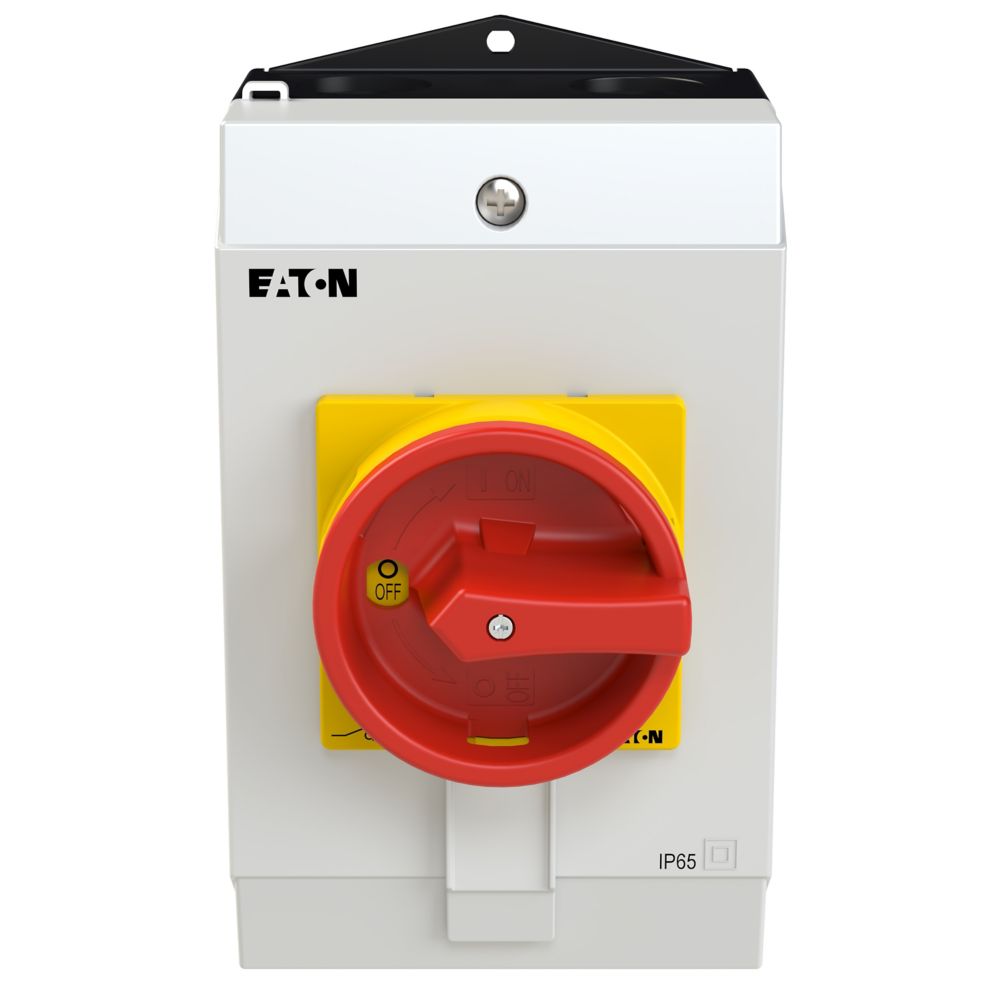

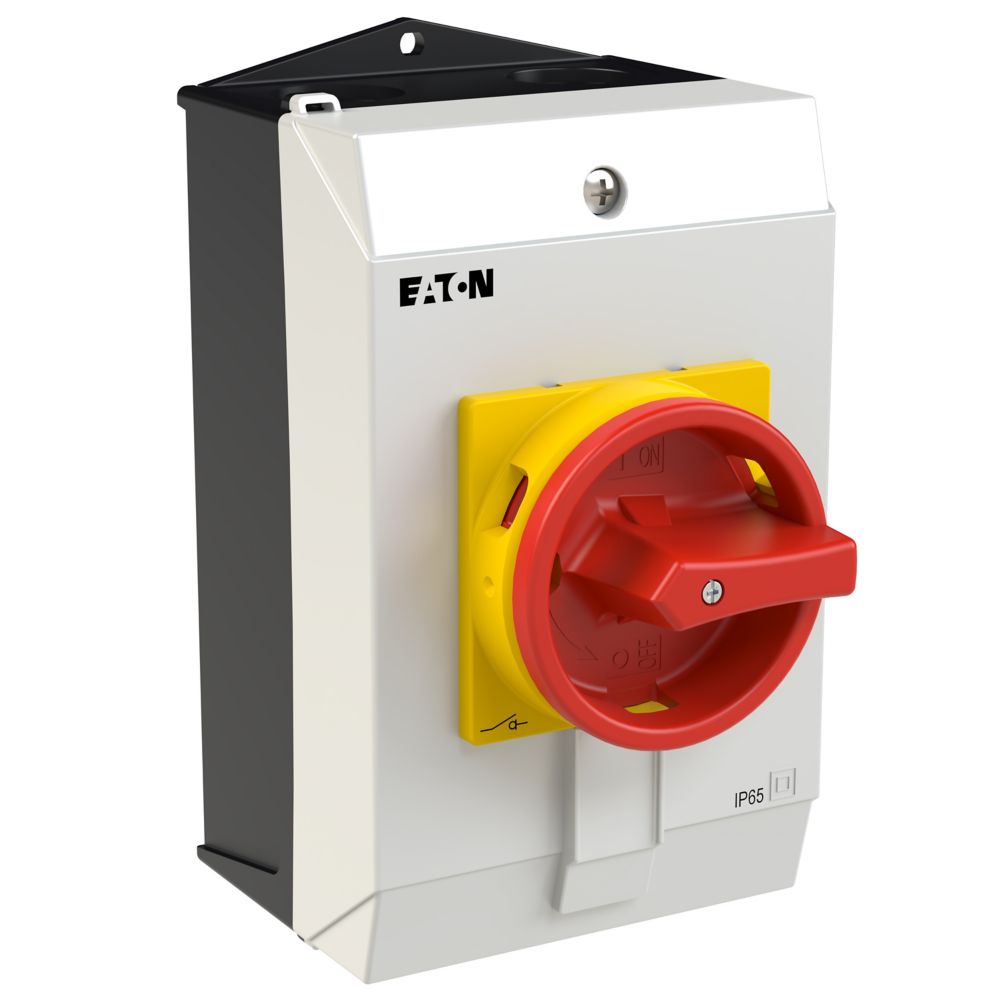

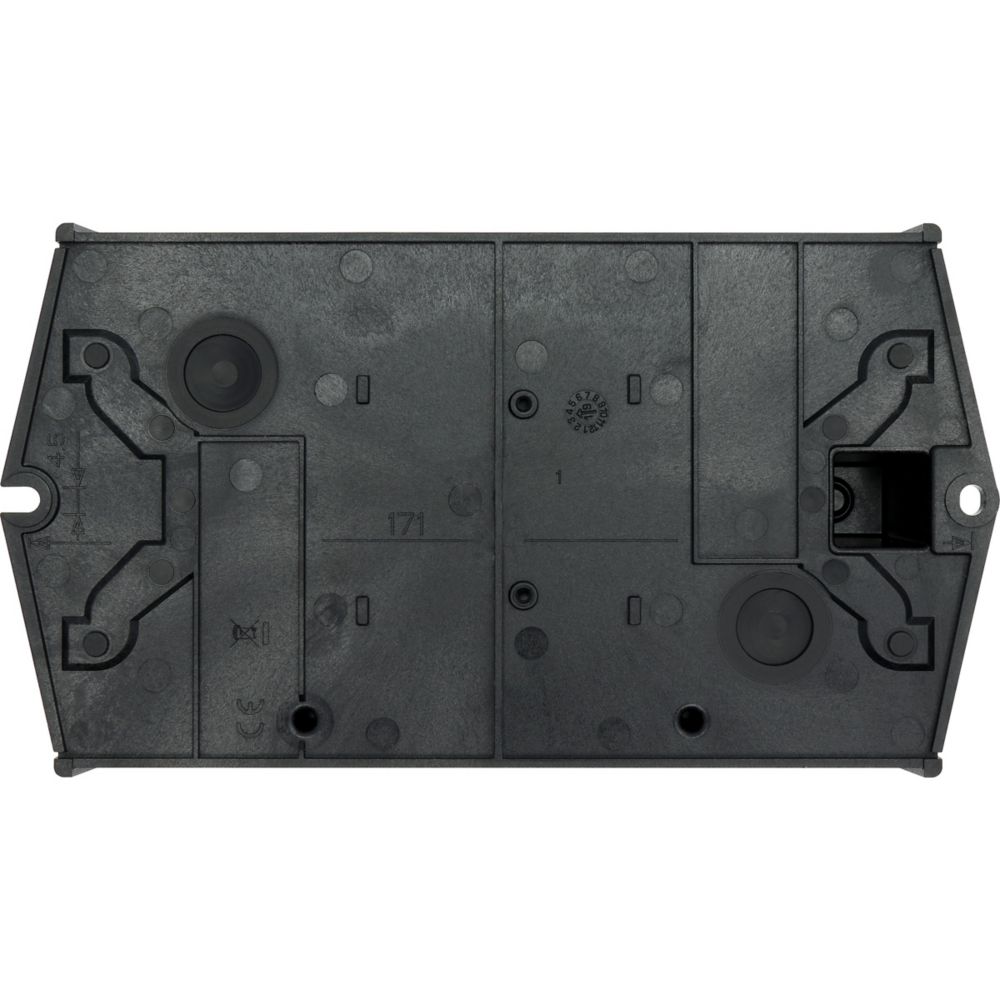

Main switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Interlockable, Emergency switching off function, Fitted with: Red rotary handle and yellow locking ring, Mounting method: Surface mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12
Specificatii
| Model/type | |
| Version as main switch | Yes |
| Version as maintenance-/service switch | Yes |
| Version as safety switch | No |
| Version as emergency stop installation | Yes |
| Number of switches | 1 |
| Motor drive integrated | No |
| Type of control element | Door coupling rotary drive |
| With pre-assembled cabling | No |
| Options | |
| Version as reversing switch | No |
| Motor drive optional | No |
| Voltage release optional | No |
| Interlockable | Yes |
| Electrical | |
| Max. rated operation voltage Ue AC | 690 |
| Rated operating voltage | 690 |
| Rated permanent current Iu | 32 |
| Rated permanent current at AC-23, 400 V | 32 |
| Rated permanent current at AC-21, 400 V | 32 |
| Rated operation power at AC-3, 400 V | 13 |
| Rated short-time withstand current lcw | 0.64 |
| Rated operation power at AC-23, 400 V | 15 |
| Switching power at 400 V | 15 |
| Conditioned rated short-circuit current Iq | 80 |
| Number of poles | 3 |
| Connection | |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Other | |
| Device construction | Complete device in housing |
| Mounting/installation | |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for intermediate mounting | No |
| Application | |
| Suitable for distribution board installation | No |
| Colour | |
| Colour control element | Red |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA) | 12 |
| Measurements | |
| Width | 100 |
| Height | 180 |
| Depth | 115 |
| Width in number of modular spacings | - |
| Package 1 | |
| volume | 0,002246 |
| weight | 0,492 |
| length | 0,18 |
| width | 0,104 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082073145 |
| Dimensions of product | |
| Volume | 0,00207 |
| Weight | 0,443 |
| Length | 0,115 |
| Width | 0,1 |
| Depth | 0,18 |
