Descriere
Lampă cu descărcare în gaz, compactă , de eficienţă ridicată, cu soclu la două capete, stabilitate a culorii de-a lungul duratei de funcţionare şi cu lumină scânteietoare, contrastantă
Documente
Specificatii
| Electrical | |
| Lamp power | 147.0 |
| Lamp voltage | 90 |
| Model/type | |
| Lamp shape | Tube, double-ended |
| Model | Clear |
| Material | |
| Material discharge tube | Ceramics |
| Other | |
| Burning position | P45 |
| Lamp designation | T25 |
| Average nominal lifetime | 16000 |
| Luminous flux | 12750 |
| Lamp efficacy | 91 |
| Measurements | |

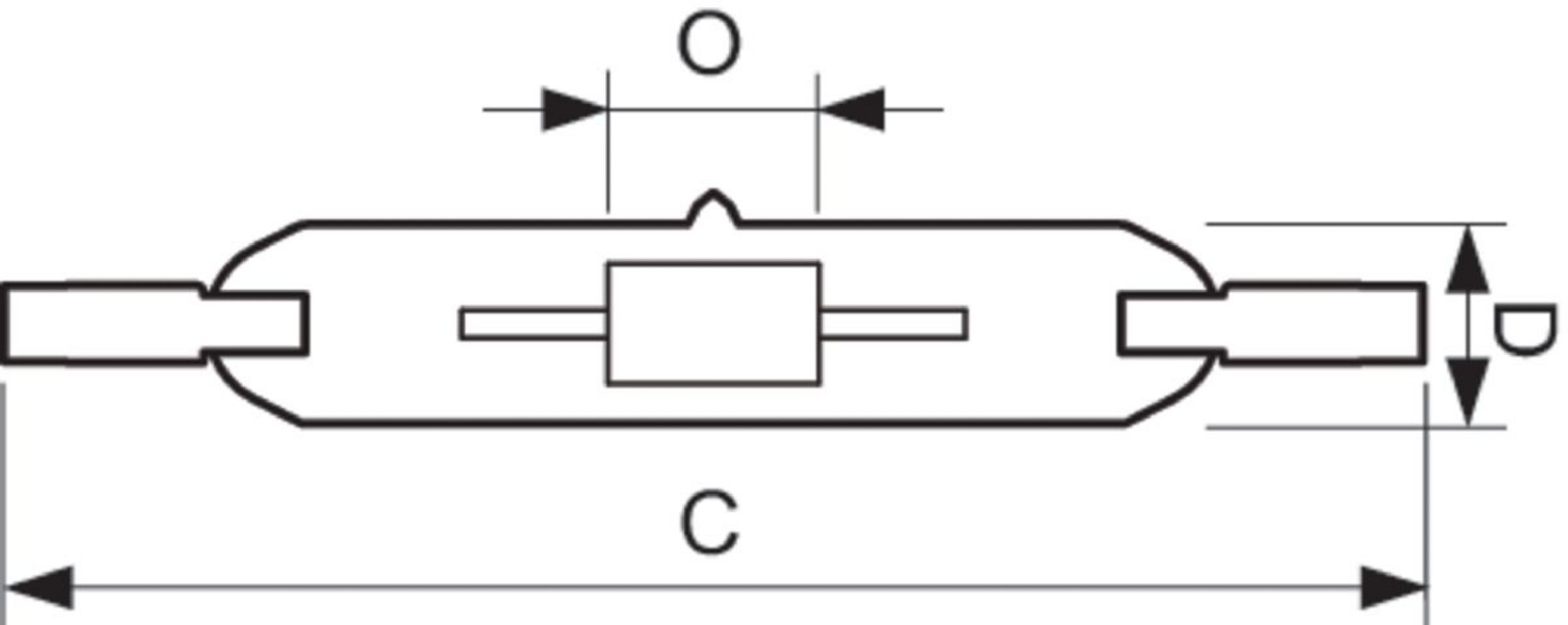

| Diameter | 22 |
| Total length | 137 |
| Operating conditions | |
| External ignitor required | Yes |
| External ballast required | Yes |
| Closed luminaire required | Yes |
| Options | |
| Sun tanning lamp | No |
| Colour | |
| Colour | White |
| Colour of light | 830 |
| Colour rendering index CRI | 80-89 |
| Colour temperature | 3000 |
| Colour of light according to EN 12464-1 | Warm white < 3300 K |
| Energy efficiency/environmental | |
| Energy efficiency class according to EU regulation 2019/2015 | G |
| Consumption | |
| Weighted energy consumption in 1000 hours | 147 |
| Connection | |
| Socket | RX7s |
| Protection | |
| UV protection | Yes |
| Package 1 | |
| weight | 0,045 |
| length | 0,026 |
| width | 0,029 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| Package 2 | |
| weight | 0,534 |
| length | 0,176 |
| width | 0,161 |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 8711500197856 |
| Package 3 | |
| weight | 146,354 |
| length | 1,2 |
| width | 0,8 |
| qmax | 2772 |
| qmin | 2772 |
| um | PF |
