Descriere

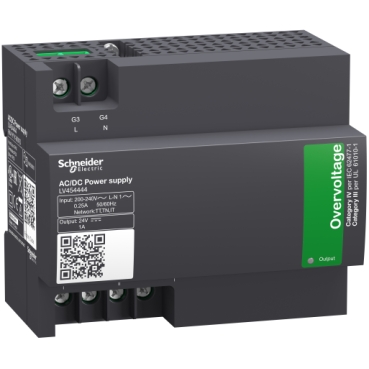

Modul sursa de tensiune externa, tensiune de intrare 200 V c.a. pana la 240 V c.a. 50/60 Hz, tensiune de iesire 24 V c.c., curent de iesire 1A
Documente
Specificatii
| Mounting/installation | |
| Direct mounting possible | Yes |
| Suitable for rail mounting | Yes |
| Wall mounting possible | Yes |
| Connection | |
| Type of electric connection | Screw connection |
| Electrical | |
| 2nd secondary output voltage DC | - |
| Voltage type (supply voltage) | AC |
| 2nd secondary output voltage AC | - |
| Max. output current 2 | - |
| Power output | 24 W |
| Rated supply voltage AC 50 Hz | 170 V |
| Max. output current 3 | - |
| Rated supply voltage AC 60 Hz | 170 V |
| Rated supply voltage DC | - |
| Max. output current 1 | 1 A |
| Output voltage stabilized | Yes |
| Power consumption | 4.2 VA |
| 3rd secondary output voltage DC | - |
| 3rd secondary output voltage AC | - |
| Secondary voltage adjustable | No |
| 1st secondary output voltage DC | 22.8 V |
| 1st secondary output voltage AC | - |
| Options | |
| Stabilized | Yes |
| Suitable for distribution board | Yes |
| Short-circuit-proof | Yes |
| Measurements | |
| Built-in height | 90 mm |
| Height | 90 mm |
| Width | 108 mm |
| Depth | 67.5 mm |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Protection | |
| Degree of protection (IP) | IP3X |
| Degree of protection (NEMA) | - |
| Application | |
| Suitable for safety functions | Yes |
| Package 1 | |
| volume | 1057,275 cm3 |
| weight | 370 g |
| length | 12,7 cm |
| width | 11,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481190963 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,95 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 23 |
| qmin | 23 |
| um | CT |
| gtin | 13606481190960 |
| Package 3 | |
| volume | 1008000 cm3 |
| weight | 226,8 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 552 |
| qmin | 552 |
| um | PF |
