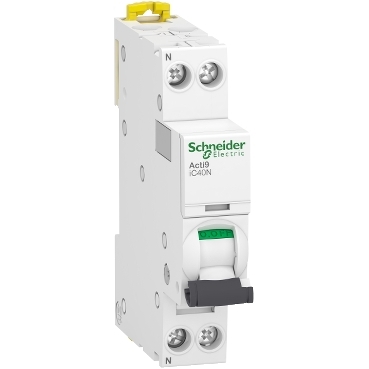

A9 iC40N 1P+N D 20A 6kA/10kA

Cod produs: A9P64620

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606481324726

Acti9, iC40N Intreruptor automat 1P+N D 20A 6kA/10kA

Other
Frequency	50 Hz
Pollution degree	3
Measurements
Built-in depth	44 mm
Width in number of modular spacings	1
Model/type
Number of poles (total)	2
Number of protected poles	1
Electrical
Rated insulation voltage Ui	400 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6 kA
Rated impulse withstand voltage Uimp	4 kV
Rated current	20 A
Rated voltage	230 V
Release characteristic	D
Voltage type	AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
Overvoltage category	3
Current limiting class	3
Options
Additional equipment possible	Yes
Concurrently switching neutral conductor	Yes
Protection
Degree of protection (IP)	IP20
Explosion-proof	No
Mounting/installation
Flush-mounted installation	No
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-25 °C
Package 1
volume	125,208 cm3
weight	120 g
length	9,4 cm
width	7,4 cm
qmax	1
qmin	1
um	C62
gtin	3606481324726
Package 2
volume	1796,256 cm3
weight	1,46 kg
length	22,4 cm
width	9,9 cm
qmax	12
qmin	12
um	BX
gtin	13606481324723
Package 3
volume	36000 cm3
weight	16,595 kg
length	40 cm
width	30 cm
qmax	132
qmin	132
um	CT
gtin	43606481324724
